FX1S Series Programmable Controllers Inputs 5
5-2
5.2 Wiring Diagrams
5.2.1 Input Wiring

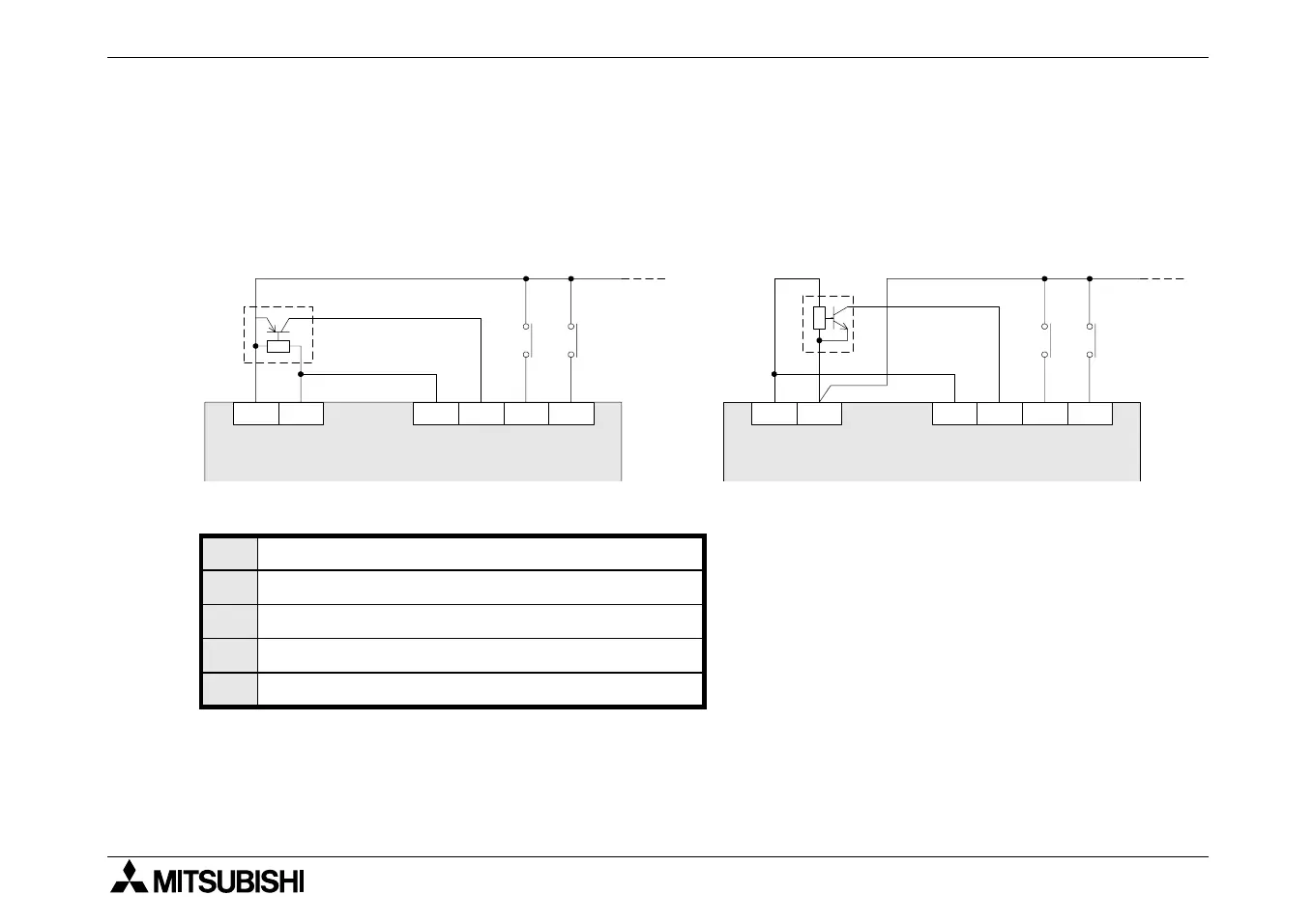

Figure 5.1: Input Wiring Diagrams
1 24V DC Service Supply
2 PNP Sensor
3 NPN Sensor
4 Input Device Contact
5 FX
1S
Controller Main Body
24V 0V S/S X0 X1 X2
NPN
FX
1S
-**MR-ES/UL
➊
➌
➍
➎
FX
1S
-Sink
24V 0V S/S X0 X1 X2
PNP
FX
1S
-**MR-ES/UL
➊
➋
➍
➎
FX
1S
-Source
