FX1S Series Programmable Controllers Installation Notes 3
3-6
3.5 DIN Rail Mounting
Units can be snap mounted to 35mm DIN rail (DIN EN 50022). To release, pull the spring
loaded clips away from the rail and slide the unit off and up.
3.6 Termination of Screw Terminals
Cables terminating at a screw terminal of an FX
1S
product should be fitted with insulated crimp
terminals, see example shown. Terminals screws should be tightened to between 0.5 to 0.8
N‚m. Screw terminals must be secured to prevent a loose connection from causing a
malfunction.
To suit M3 (0.12in)
screw terminals
Max.
6.2mm
0.24 in
Max.
6.2mm
0.24 in

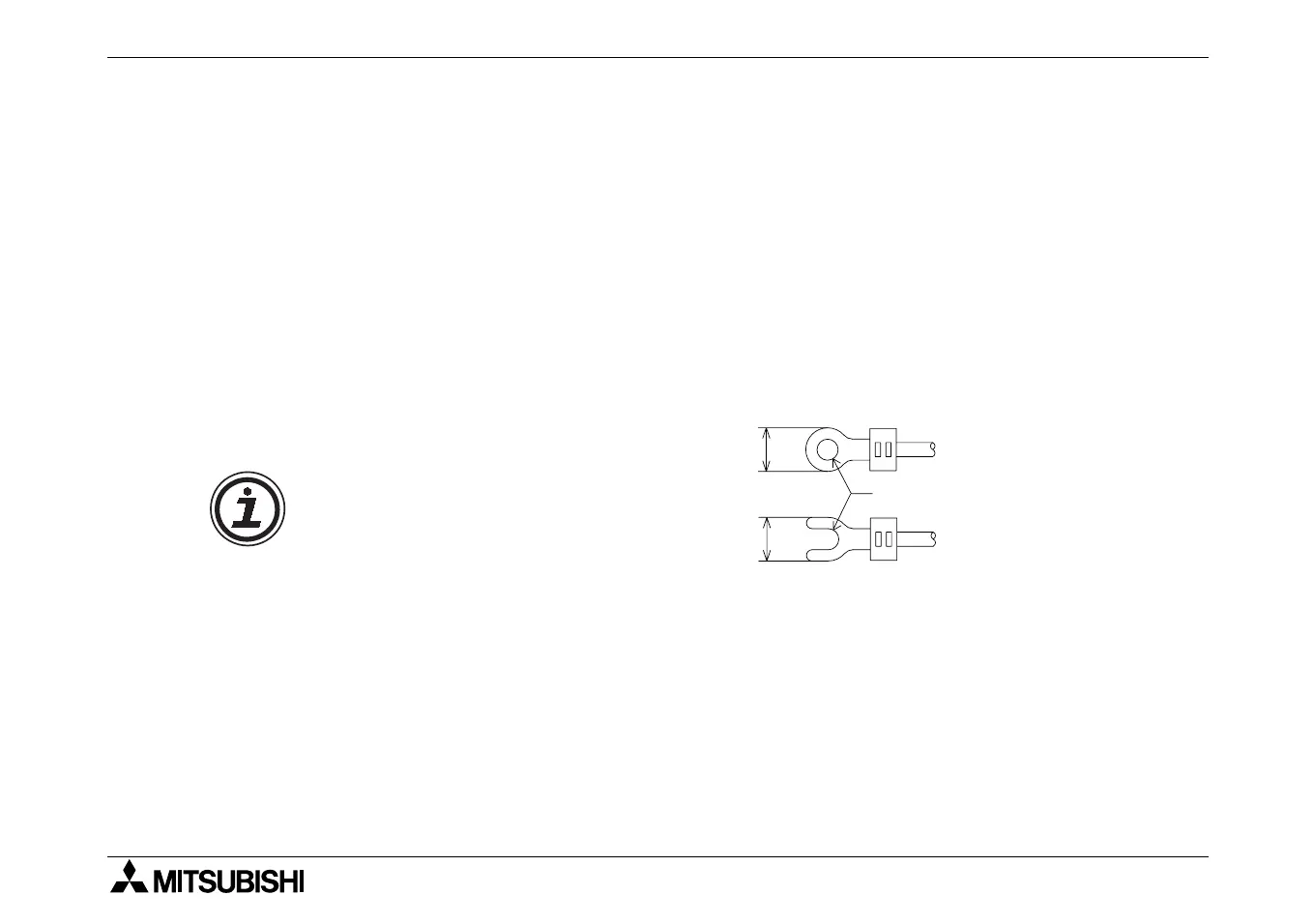

Figure 3.4: Terminal Crimp
