Mitsubishi FX2N series User Manual

FX2N Series Programmable Controllers Inputs 5
5-2

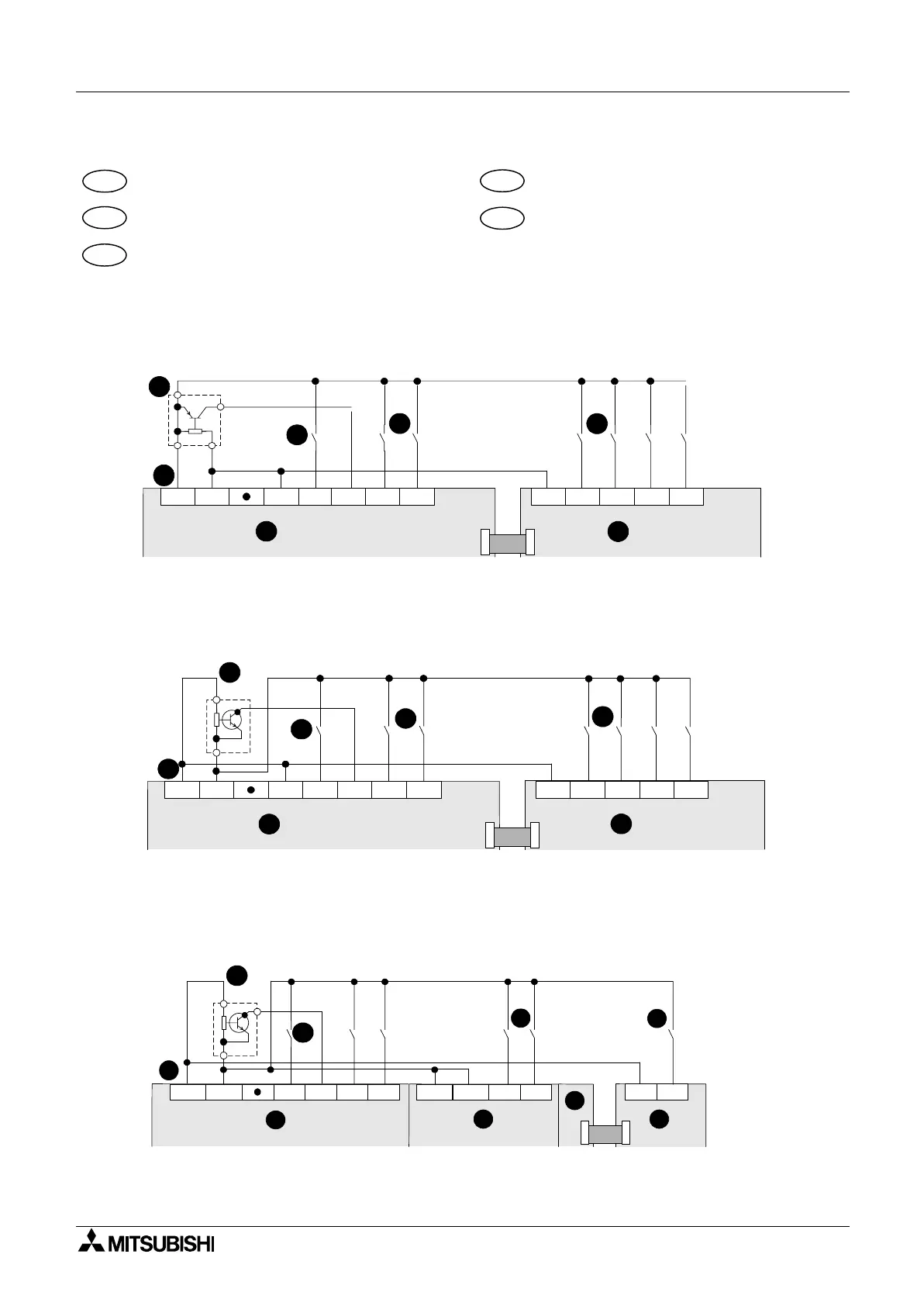

5.1.1 Typical wiring
Typical wiring 5.1.1
Verdrahtungsbeispiel 5.1.1
Esempio di cablaggio 5.1.1
Exemple de câblage 5.1.1
Ejemplo de cableado 5.1.1
Figure 5.1: ENG
☞
Source (positive input connection, negative S/S)
FRE
☞
Source (émetteur) (pôle positif)
GER
☞
Source (plusschaltend)
ITL
☞
Source (comando positivo)
ESP
☞
Source (conexión de positivo)
Figure 5.2: ENG
☞
Sink (negative input connection, positive S/S)
FRE
☞
Sink (récepteur) (pôle négatif)
GER
☞
Sink (minusschaltend)
ITL
☞
Sink (conexión de negativo)
ESP
☞
Sink (comando negativo)
Figure 5.3: ENG
☞
Sink (negative input connection, Japanese spec.)
FRE
☞
Sink (récepteur)
GER
☞
Sink (minusschaltend)
ITL
☞
Sink (conexión de negativo)
ESP
☞
Sink (comando negativo)
ENG
GER
ESP
FRE
ITL
PNP
X0 X1 X2S/S24V 0V X0 X1 X2S/S X3
1
X3
3
4
5
3
3
2
NPN
X0 X1 X2S/S24V 0V
1
X3
S/S
2
4
5
3
3
3
X0 X1 X2 X3
X0
X0
X1
24V
COMCOM
1
NPN
2
4
5 7
S/S
COM
3
X2 X3
3
X0
X1
3
6
Japanese spec. Japanese spec.

Mitsubishi FX2N series Specifications

General

Type	Programmable Logic Controller (PLC)
Manufacturer	Mitsubishi Electric
Series	FX2N
Power Supply	100-240VAC or 24VDC
Program Capacity	8, 000 steps
Expansion	Yes, via expansion modules
Operating Temperature	0 to 55°C
I/O Points	16 to 256 points
Communication	RS-422, RS-485
Programming Language	Ladder Logic
Instruction Execution Speed	0.08 µs/basic instruction
Mounting	DIN rail
Data Memory	8, 000 words
Expansion Modules	Analog, digital, communication
Humidity	5 to 95% RH (non-condensing)
