3 Controller
External I/O cable 3-74
■ Connections and outside dimensions
The sheath of each signal cable (40 lines) is color indicated and marked with dots. Refer to the cable color speci
-
fications in "Table 3-32Connector pin numbers and cable colors" when making the connections.

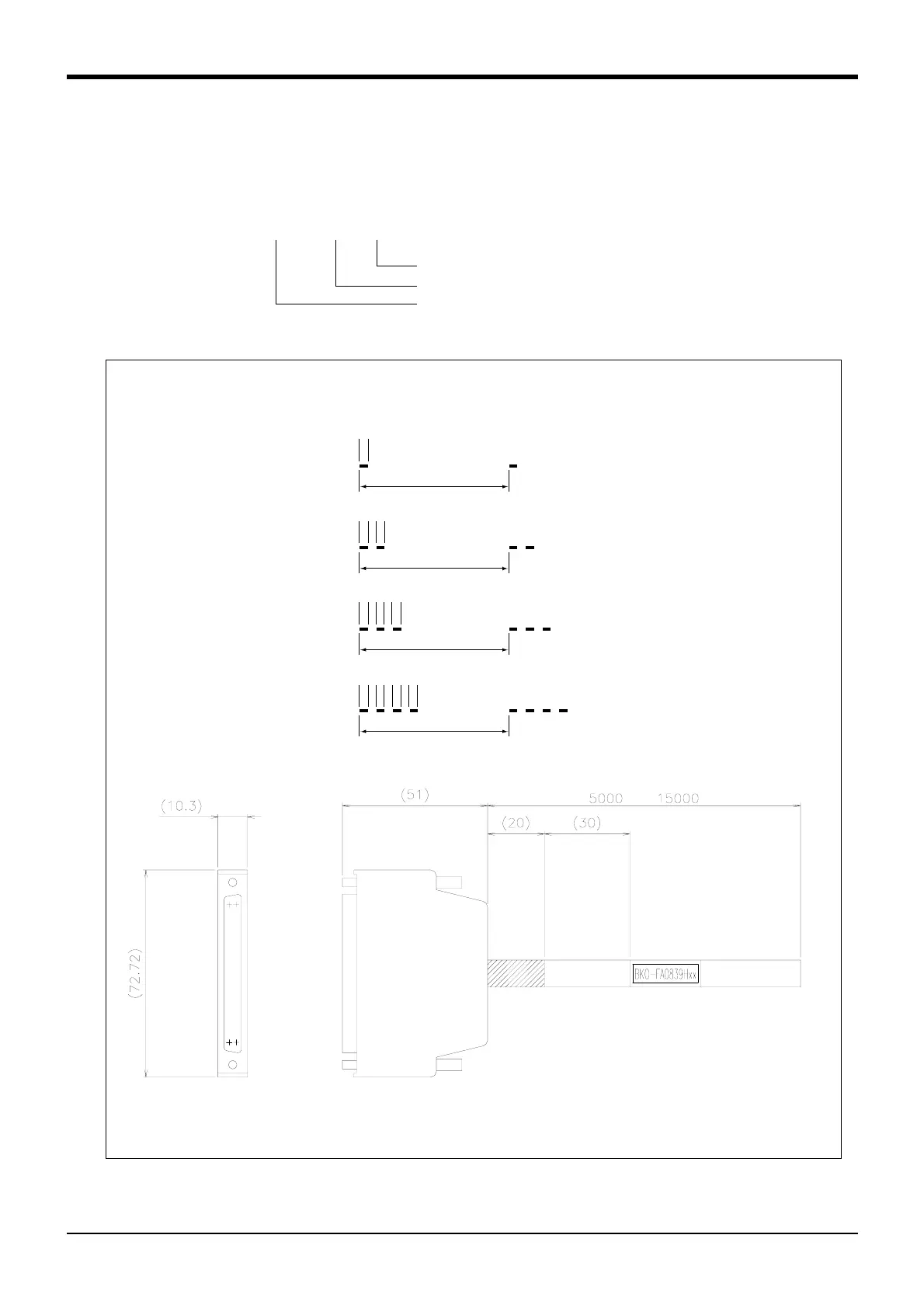

Fig.3-25 ： Connections and outside dimensions
(Eg.) Pin number: color indication
１ ： Orange ／ Red ／ Ａ
Type of dot mark (see figure below)
Color of dot mark
Color of sheath
Line color
type
a type
Pattern of the print mark
One dot
Two dots
Three dots
Four dots
b type
c type
d type
1A/C 1B/D
20A/C
20B/D
or
Plug (Fujitsu Ltd) Connector ： FCN-361J040-AU
Cover ： FCN-360C040-B
To Next Page
