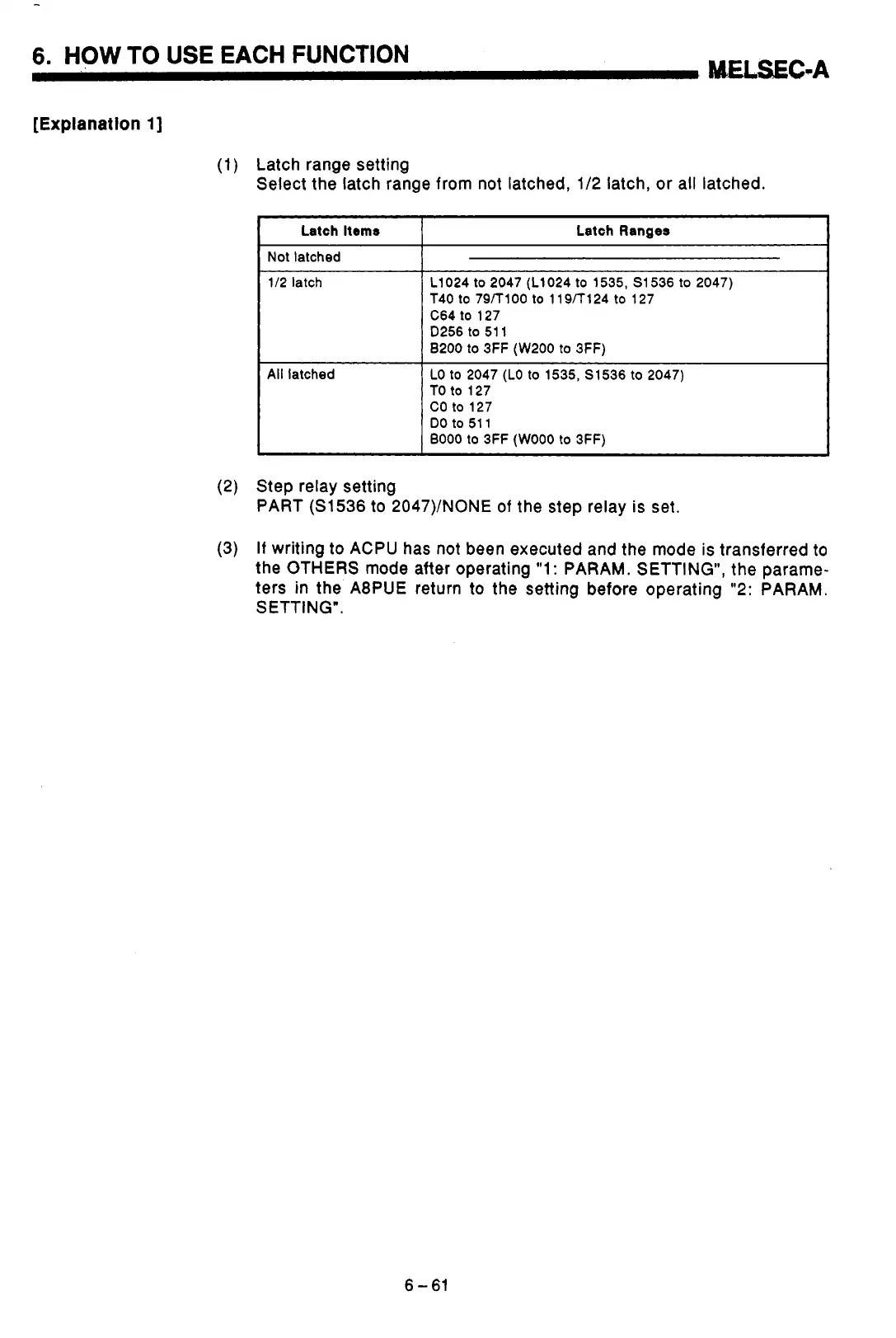

6. HOW TO USE EACH FUNCTION
MELSEC-A
[Explanation 11
(1)
Latch range setting
Select the latch range from not latched,
112 latch, or all latched.
Latch Items
Latch Ranges
Not latched
1/2 latch L1024 to 2047 (L1024 to 1535, S1536 to 2047)
T40
to 79lT100 to 1 19rT124 to 127
C64
to 127
D256
to 51 1
8200 to 3FF (W200 to 3FF)
TO to 127
CO
to 127
DO to 51 1
BOO0 to 3FF (WOO0 to 3FF)
All latched
LO to 2047 (LO to 1535, S1536 to 2047)
Step relay setting
PART (SI536 to 2047)/NONE of the step relay is set.
If writing to ACPU has not been executed and the mode is transferred to
the
OTHERS mode after operating "1: PARAM. SETTING", the parame-
ters
in the A8PUE return to the setting before operating "2: PARAM.
SETTING".
