2. LET’S TRY USING THE A8PUE
MELSEC-A

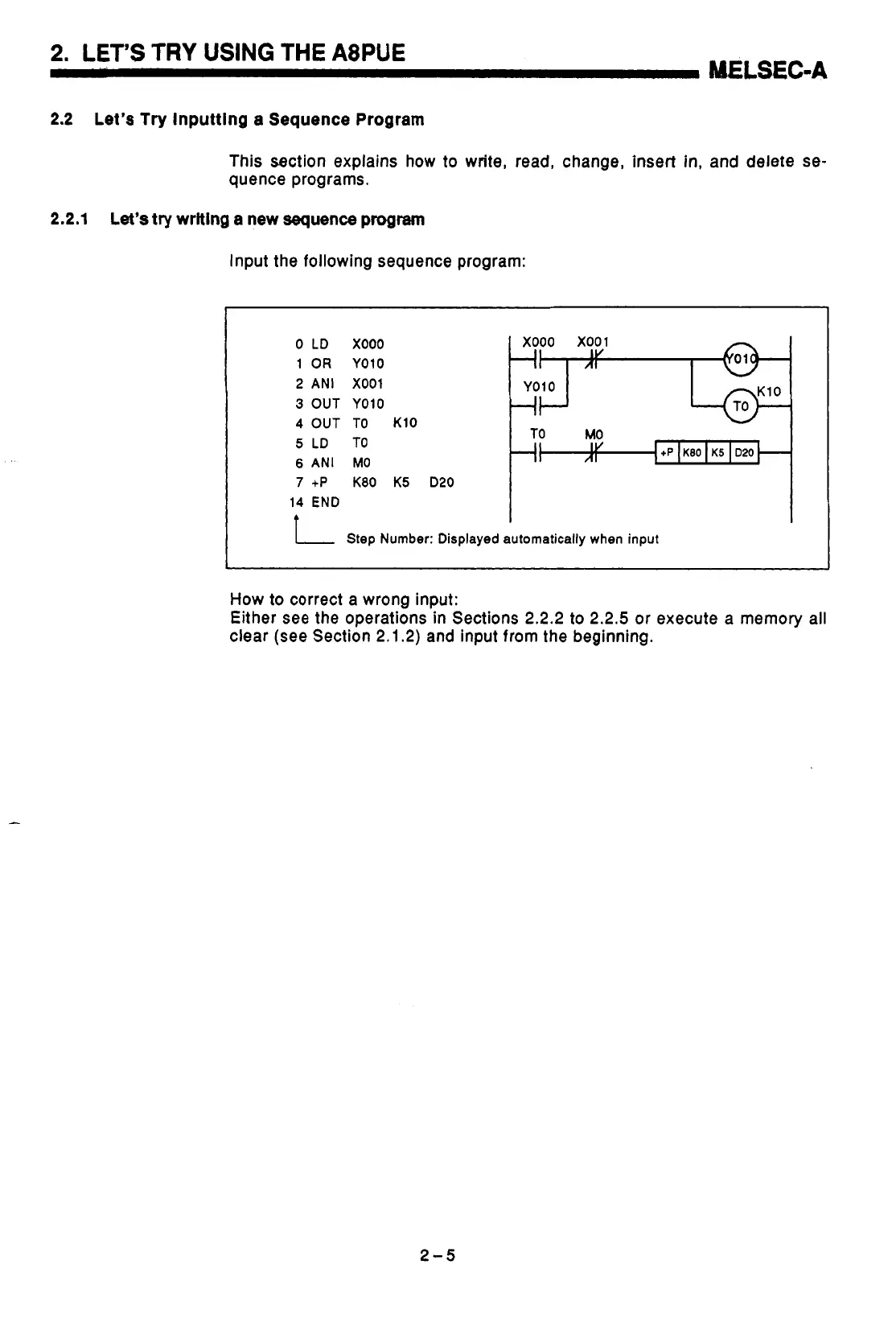

2.2 Let’s Try Inputting a Sequence Program
This section explains how to write, read, change, insert in, and delete se-
quence programs.
2.2.1 Let’s try writing a new sequence program
Input the following sequence program:
0 LD X000
1 OR YO10
2 ANI X001
3 OUT YO10
4 OUT TO K10
5 LD TO
6 ANI MO
7 +P K80 K5 020
14 END
t Step Number: Displayed automatically when input
How to correct a wrong input:
Either see the operations
in Sections 2.2.2 to 2.2.5 or execute a memory all
clear (see Section
2.1.2) and input from the beginning.
2-5
