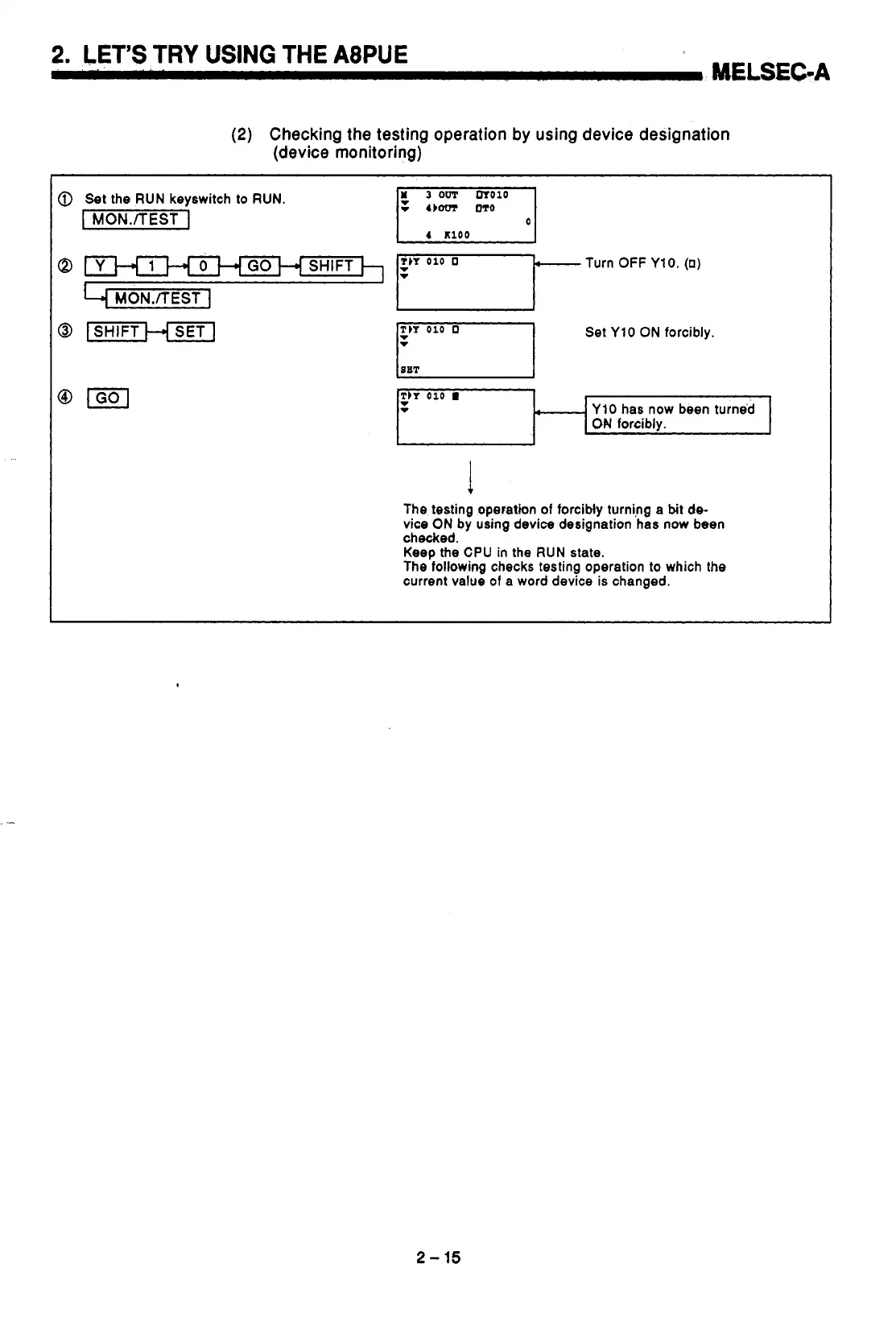

2. ,LET'S TRY USING THE A8PUE
MELSEC-A
(2) Checking the testing operation by using device designation
(device monitoring)
@ Set the RUN keyswitch to RUN.
I MON./TEST I
4 K100
Q IY I t.lo HGOHSHIFT~ v - TIY 010 0 Turn OFF Y10. (0)
@ I SHIFT H SET ]
@ (GO]
Set Y10 ON forcibly.
'TIY 010 I
v
v
Y10 has now been turne'd
ON forcibly.
The testing operation of forcibly turning a bit de-
vice
ON by using device designation has now been
checked.
Keep the
CPU in the RUN state.
The following checks testing operation to which the
current value of a word device is changed.
2- 15
