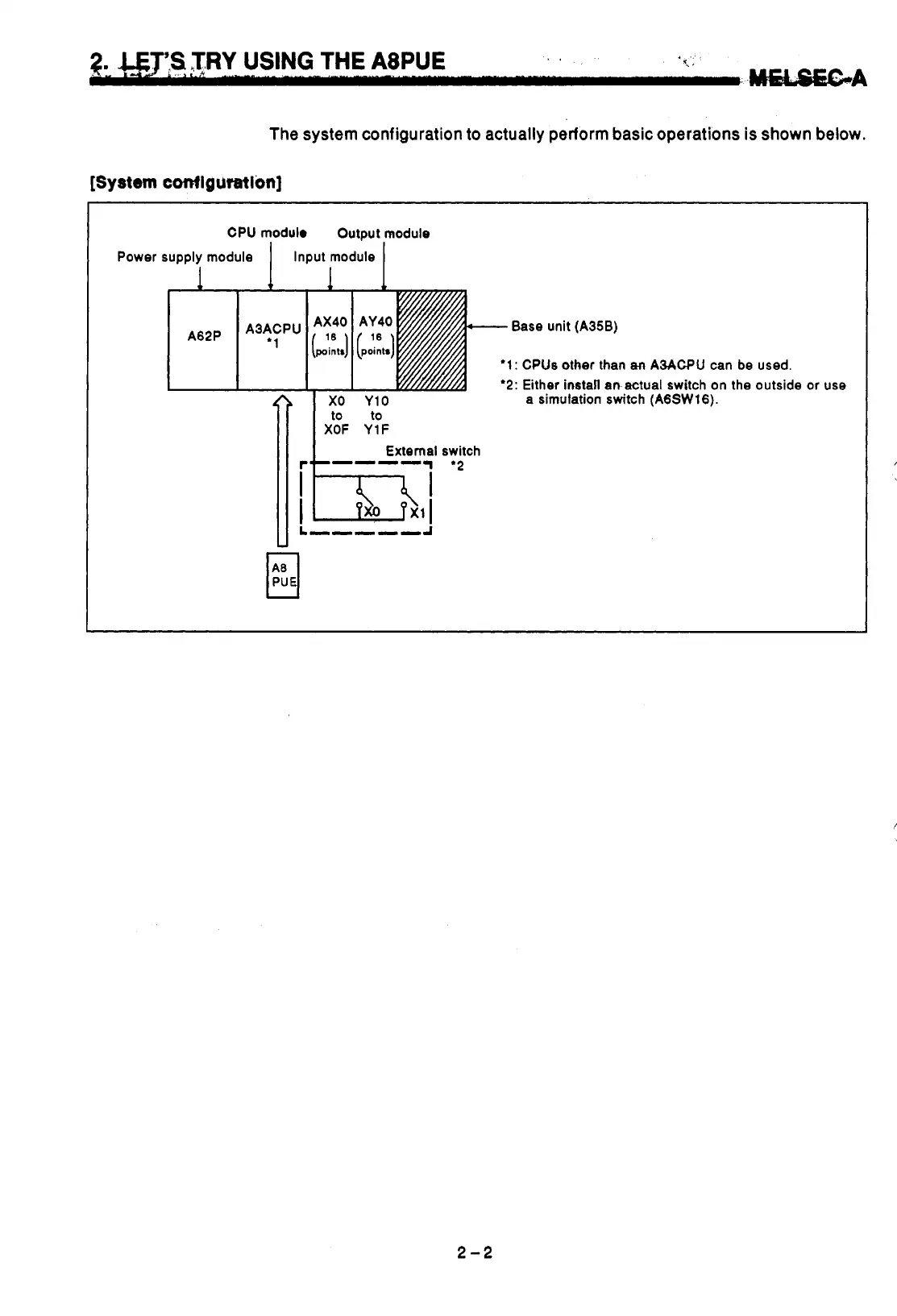

The system configuration
to
actually perform basic operations is shown below.
[System
configutetion]
CPU
modulo
Output module
Power supply module
I
Input module
I
I
I
'1
:
CPUs
other
than
an
A3ACPU can
be
used.
'2:
Either install
an
actual switch
on
the outside
or
use
a simulation switch
(A6SW16).
2-2
