i
5.
OPERATING PROCEDURES
MELSEGA

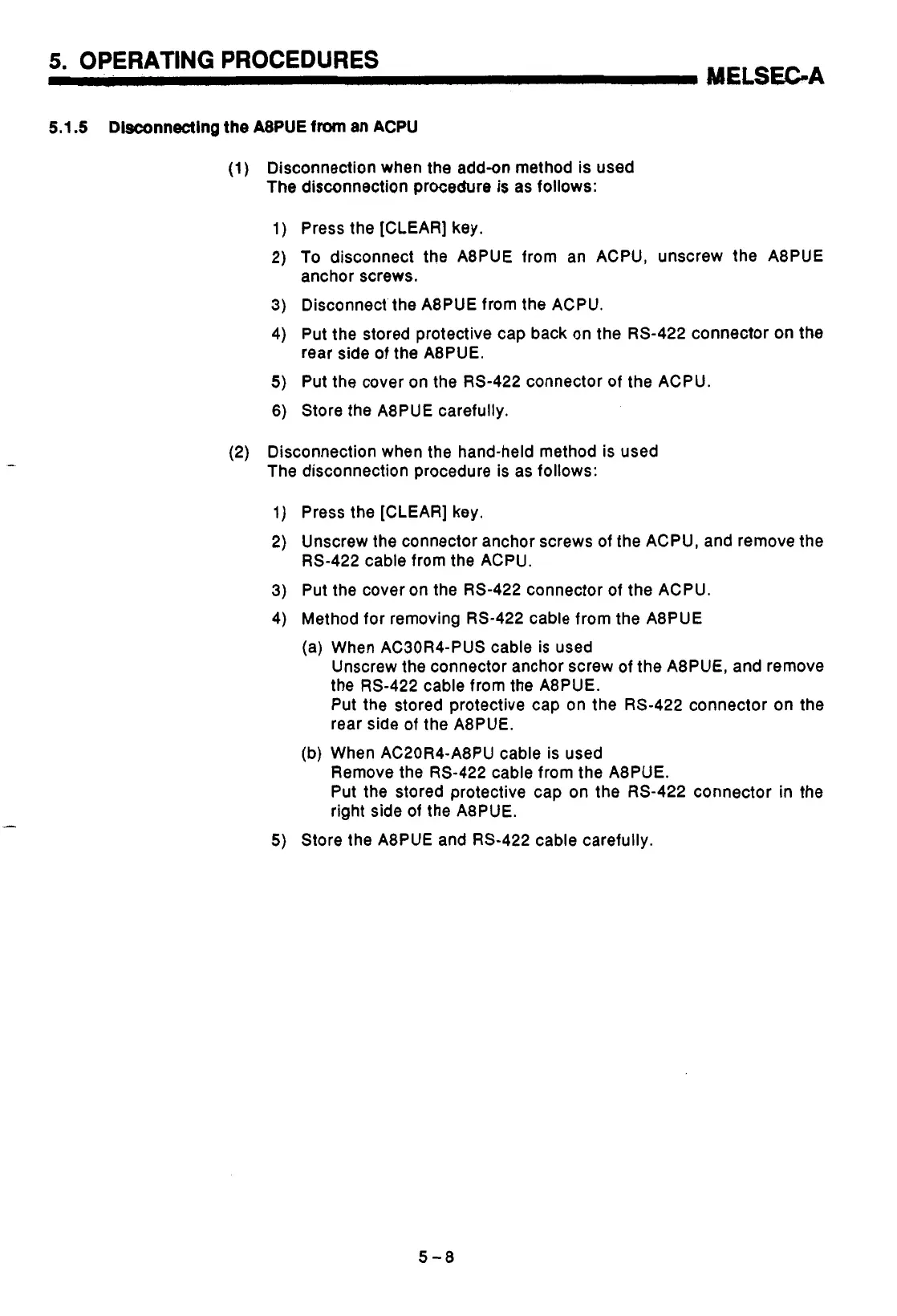

5.1.5
Dlsconnectlng
the
A8PUE
fm
an
ACPU
(1)
Disconnection when
the
add-on method is used
The disconnection procedure
is
as
follows:
1)
Press the [CLEAR] key.
2)
To
disconnect the A8PUE from an ACPU, unscrew the A8PUE
anchor screws.
3)
Disconnect the A8PUE from the ACPU.
4) Put the stored protective cap back on the RS-422 connector on the
rear side of the A8PUE.
5)
Put the cover on the RS-422 connector of the ACPU
6)
Store the A8PUE carefully.
(2) Disconnection when the hand-held method is used
The disconnection procedure is as follows:
1)
Press the [CLEAR] key.
2) Unscrew the connector anchor screws of the ACPU, and remove the
3)
Put the cover on the RS-422 connector of the ACPU.
4) Method for removing RS-422 cable from the A8PUE
RS-422 cable from the ACPU.
(a) When AC30R4-PUS cable is used
Unscrew the connector anchor screw of the A8PUE, and remove
the RS-422 cable from the A8PUE.
Put the stored protective cap on the RS-422 connector on the
rear side of the A8PUE.
Remove the RS-422 cable from the A8PUE.
Put the stored protective cap on the RS-422 connector
in
the
right side of the A8PUE.
(b) When AC20R4-A8PU cable is used
5)
Store the A8PUE and RS-422 cable carefully.
To Next Page
