Mitsubishi MELSEC-A series Operating Manual
4
of 1
of 1 rating
177 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
$HQ.)M
IC
.,
TO
USE EACH FUNCTION
I
-WS€C-A

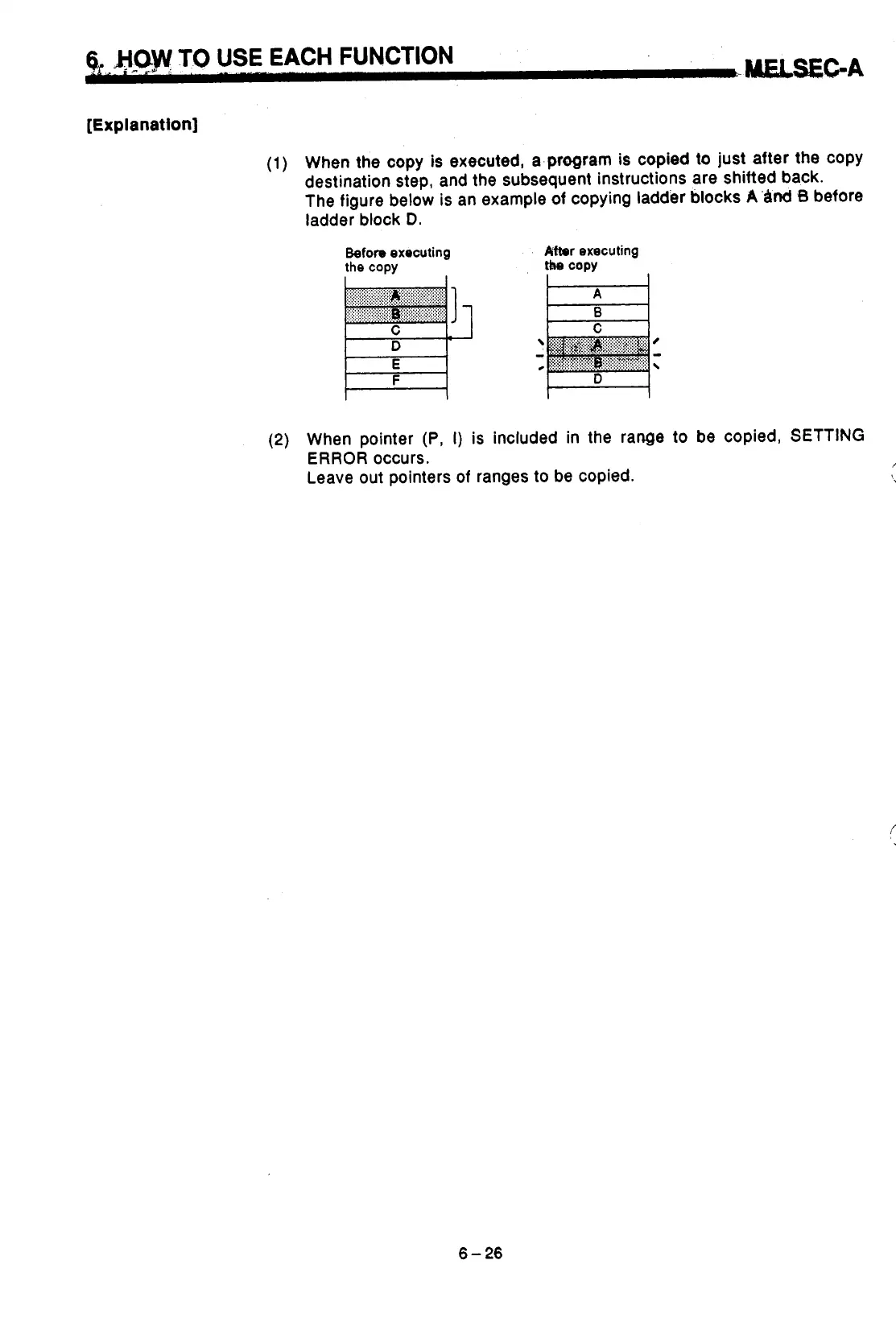

[Explanation]
(2)
When
pointer
(P,
I)
is
included
in
the range
to
be copied, SETTING
ERROR
occurs.
Leave out pointers
of
ranges
to
be copied.
n
,
j
L
,
.
f
6-26
92
94
Table of Contents
Default Chapter
4
Table of Contents
4
1 General Description
9
Features
9
Included Items
11
[Basics]
12
2 Let's Try Using the A8Pue
13
Before Inputting Asequence Program
15
Let's Try Inputting a Sequence Program
17
Let's Try Writing a New Sequence Program
17
Let's Try Reading the
19
Sequence Program
19
Let's Try Changing (Overwriting) an Instruction
20
Let's Try Monitoring the Sequence Program
23
Let's Try Testing the Sequence Program
26
Forcibly Turning a Bit Device
26
In the RUN State
27
Changing of the Display Format of a Current Value
32
[Details]
33
3 Specifications
34
General Specifications
34
System Configuration
35
Connectable Acpus
36
3.3.3 System Equipment
36
Lists of Functions
37
List of Functions
37
4 Handling and Nomenclature
42
Nomenclature
42
Maintenance
46
How to Reset the A8PUE
55
Display Backlight ON/OFF States
56
Display Format
57
Basic Key Operations
60
Valid Key Switching (Top/Bottom)
60
How to Input Instructions
61
WRITE Mode (W) Operations
69
Setting a Designated
69
Comment Display
75
READ Mode (R) Operations
77
Reading the Instruction
77
Reading an Instruction Designated in the Program (Instruction Read by Designating an Instruction)
79
Automatic Scrolling of a Program
86
Insert (I)
88
(I) Mode Operations
88
Inserting an Instruction in a Program (Program Insertion)
88
Batch Moving a Program
90
Copying a Program
92
Deleting an Instruction in a Program (Program Deletion)
94
Deletion by Designating a Range
96
Batch Deletion of NOP in the Program
