I
PROGRAMMING
I
Group
+

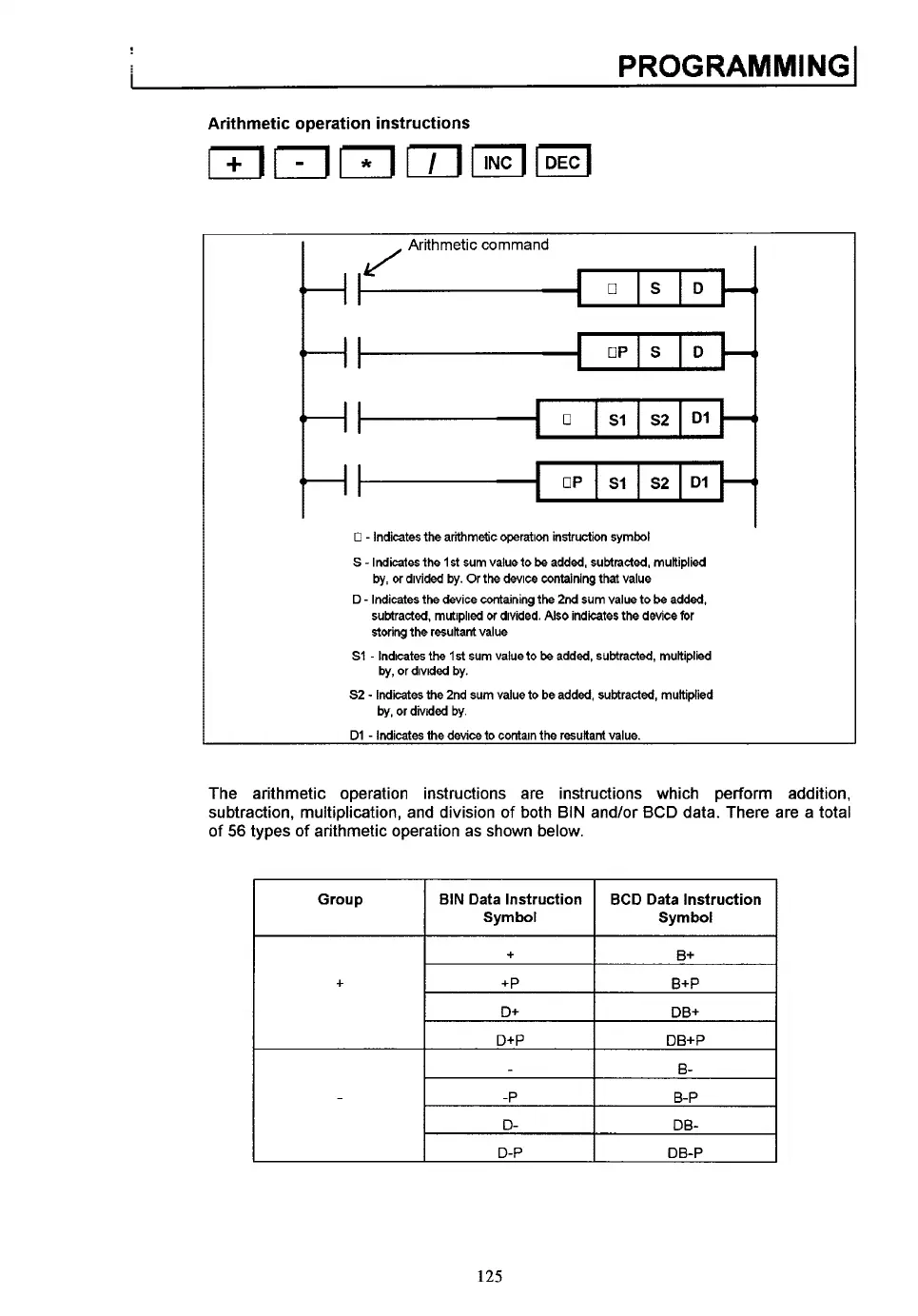

Arithmetic operation instructions
BIN
Data Instruction
BCD
Data Instruction
Symbol Symbol
+
B+
+P
B+P
D+
DB+
D+P DB+P
B-
-P
B-P
D-
DB-
D-P DB-P
0
-
Indicates the arithmetic operation instruction symbol
S
-
Indicates the 1st sum value to be added, subtracted, mukiplied
by,
w
divided by. Or the
device
containing that value
D
-
Indicates the device containing the 2nd sum value to
be
added,
subtracted. mutiplied
w
divided.
Also
indicates the device
for
stwing the resultant value
SI
-
lndlcates the 1 st sum value to
be
added, subtracted, mukiplid
S2
-
Indicates
the
2nd sum value to be added, subtracted, multiplied
D1
-
Indicates the device to contain the resultant value.
by,
or
divded by.
by, or divded by.
The arithmetic operation instructions are instructions which perform addition,
subtraction, multiplication, and division
of
both BIN andlor
BCD
data. There are a total
of
56
types
of
arithmetic operation as shown below.
125
