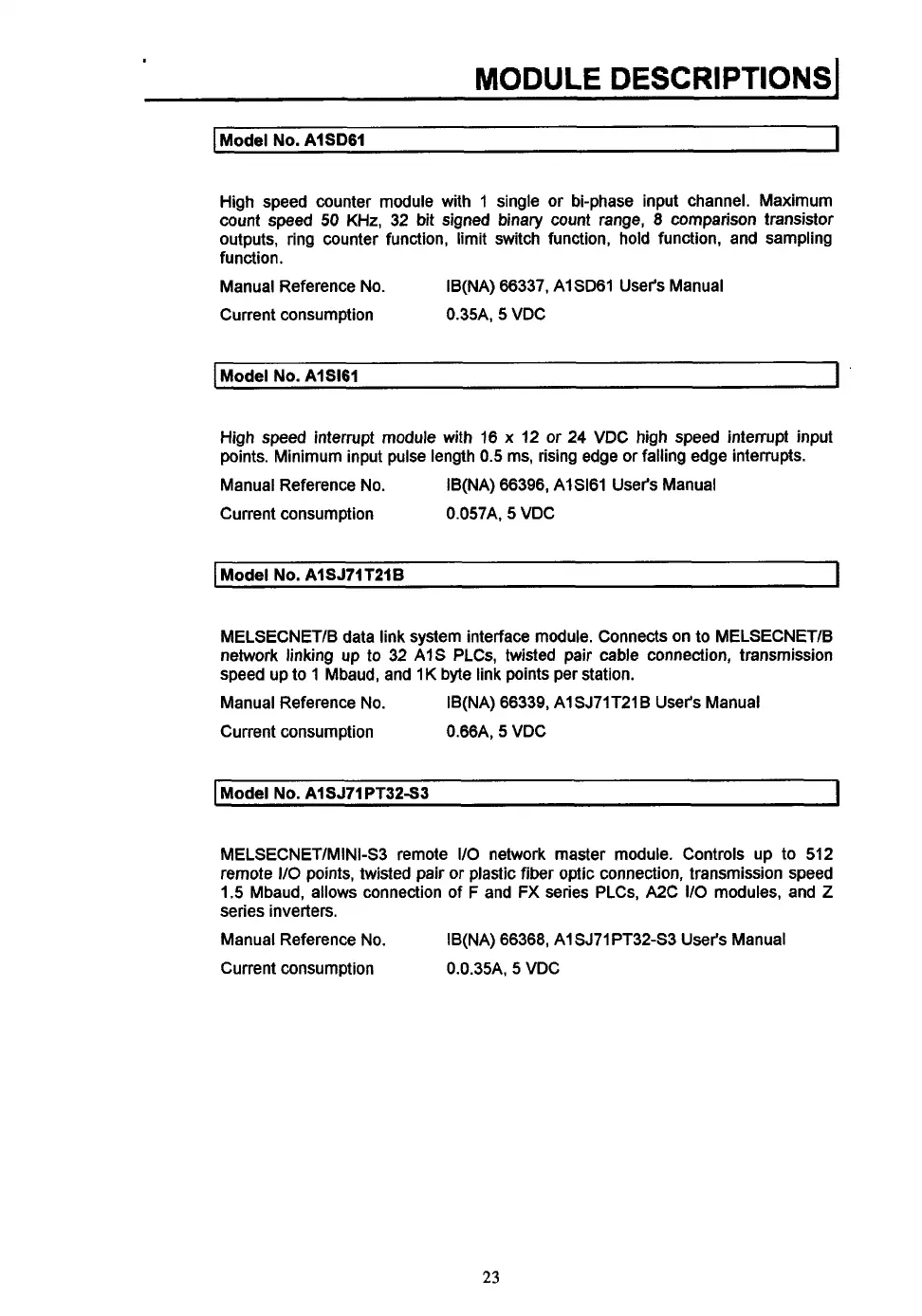

MODULE DESCRIPTIONS~
I Model No. AISD61
I
High speed counter module with 1 single or bi-phase input channel. Maximum
count speed
50 KHz, 32 bit signed binary count range, 8 comparison transistor
outputs, ring counter function, limit switch function, hold function, and sampling
function.
Manual Reference No.
Current consumption 0.35A,
5 VDC
IB(NA) 66337, AISD61 User's Manual
I Model No. AIS161
I
High speed interrupt module with 16 x 12 or 24 VDC high speed interrupt input
points. Minimum input pulse length
0.5 ms, rising edge or falling edge interrupts.
Manual Reference No.
Current consumption 0.057A,
5 VDC
IB(NA) 66396, AIS161 User's Manual
I Model No. AlSJ71 T21 B
I
MELSECNET/B data link system interface module. Connects on to MELSECNET/B
network linking up to 32
AIS PLCs, twisted pair cable connection, transmission
speed up to
1 Mbaud, and 1 K byte link points per station.
Manual Reference No.
Current consumption 0.66A,
5 VDC
IB(NA) 66339, AI SJ71 T21 B User's Manual
I Model No. AlSJ71PT32-W
I
MELSECNET/MINI-S3 remote I/O network master module. Controls up to 512
remote I/O points, twisted pair or plastic fiber optic connection, transmission speed
1.5 Mbaud, allows connection of
F and FX series PLCs, A2C I/O modules, and Z
series inverters.
Manual Reference No.
Current consumption 0.0.35A,
5 VDC
IB(NA) 66368, A1 SJ71 PT32-S3 User's Manual
