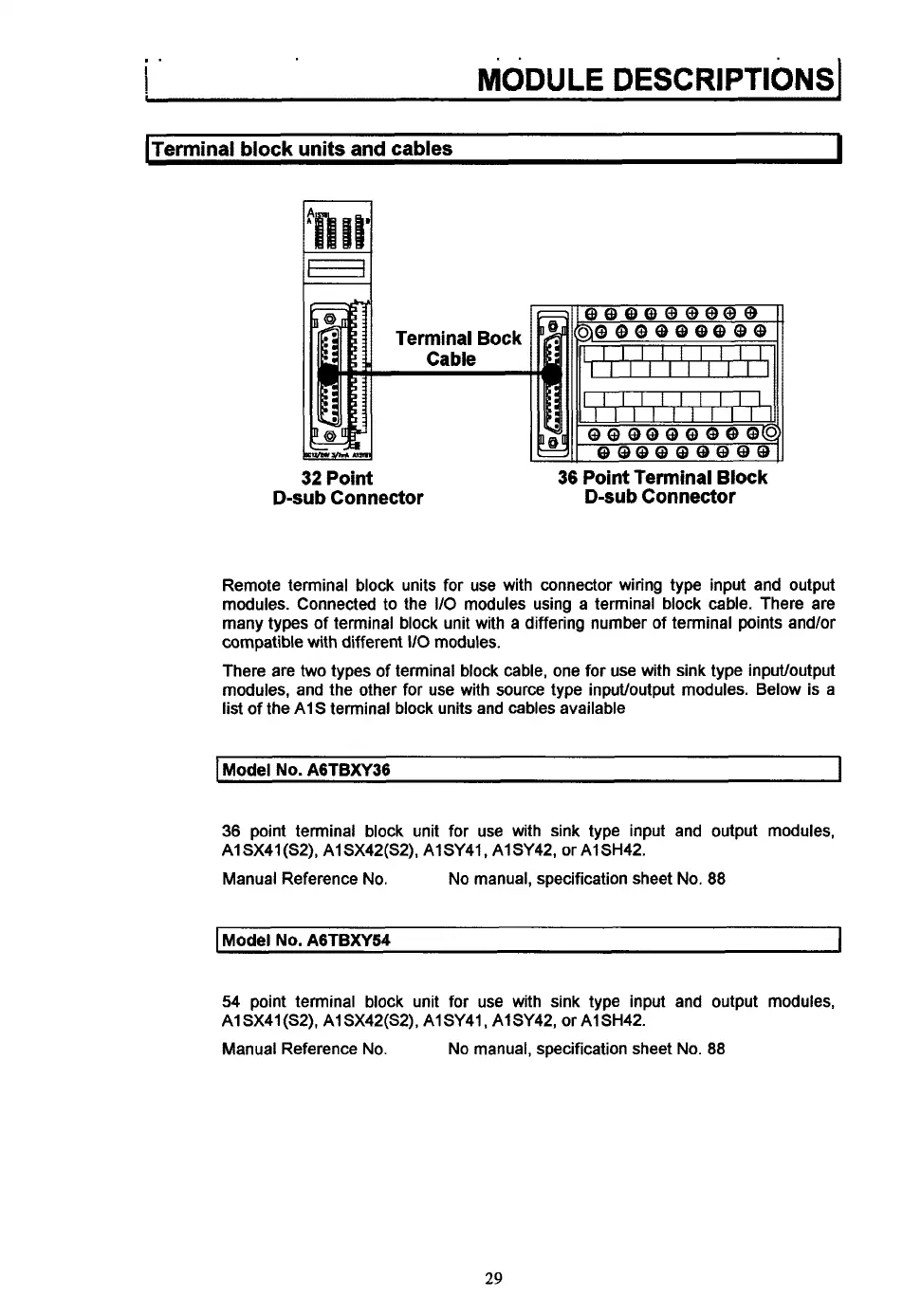

i MODULE DESCRIPTIONS1
(Terminal block units and cables
1
32 Point
D-sub Connector
36 Point Terminal Block
D-sub Connector
Remote terminal block units for use with connector wiring type input and output
modules. Connected
to the 110 modules using a terminal block cable. There are
many types of terminal block unit with a differing number of terminal points and/or
compatible with different
110 modules.
There are
two types of terminal block cable, one for use with sink type inputloutput
modules, and the other for use with source type input/output modules. Below is a
list of the
AIS terminal block units and cables available
1 Model No. A6TBXY36 I
36 point terminal block unit for use with sink type input and output modules,
AlSX41(S2), AlSX42(S2), AlSY41, AISY42, or AlSH42.
Manual Reference No. No manual, specification sheet No. 88
I Model No. A6TBXY54
I
54 point terminal block unit for use with sink type input and output modules,
A1 SX41 (S2), AI SX42(S2), AI SY41, AlSY42, or Ai SH42.
Manual Reference No. No manual, specification sheet No. 88
29
