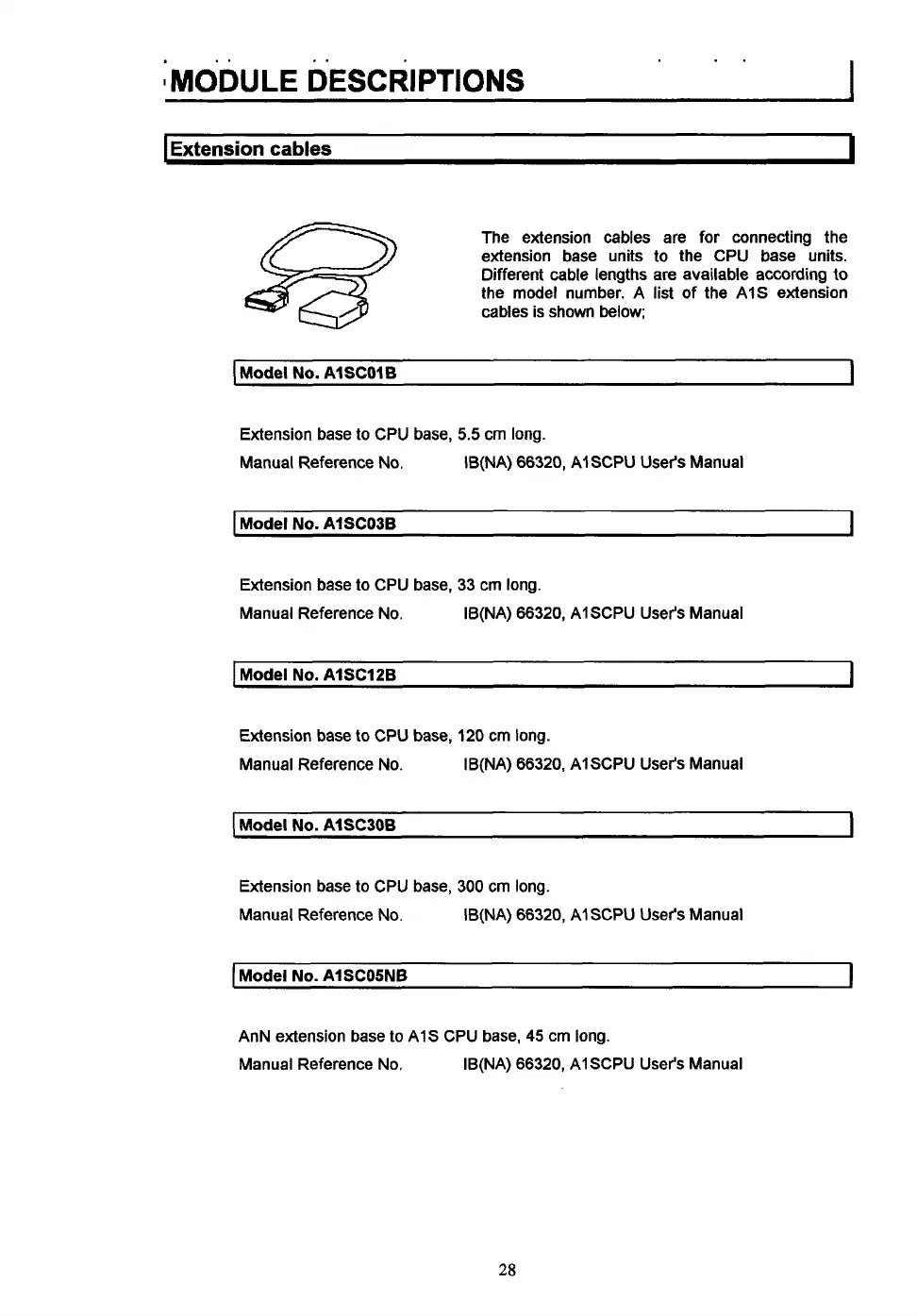

1 MODULE DESCRIPTIONS
I
I Extension cables
I
The extension cables are for connecting the
extension base units
to the CPU base units.
Different cable lengths are available according to
the model number. A list of the AIS extension
cables is shown below;
I Model No. AlSCOlB
1
Extension base to CPU base, 5.5 cm long.
Manual Reference No.
IB(NA)
66320, AISCPU User's Manual
I Model No. AlSC03B I
Extension base to CPU base, 33 cm long.
Manual Reference No. IB(NA)
66320, AISCPU User's Manual
I Model No. AlSClZB I
Extension base to CPU base, 120 cm long.
Manual Reference No.
IB(NA)
66320, AISCPU User's Manual
I Model No. AlSCJOB 1
Extension base to CPU base, 300 cm long.
Manual Reference No.
IB(NA)
66320, AISCPU User's Manual
I Model No. AlSCOBNB I
AnN extension base to AIS CPU base, 45 cm long.
Manual Reference No, IB(NA)
66320, AlSCPU User's Manual
28
