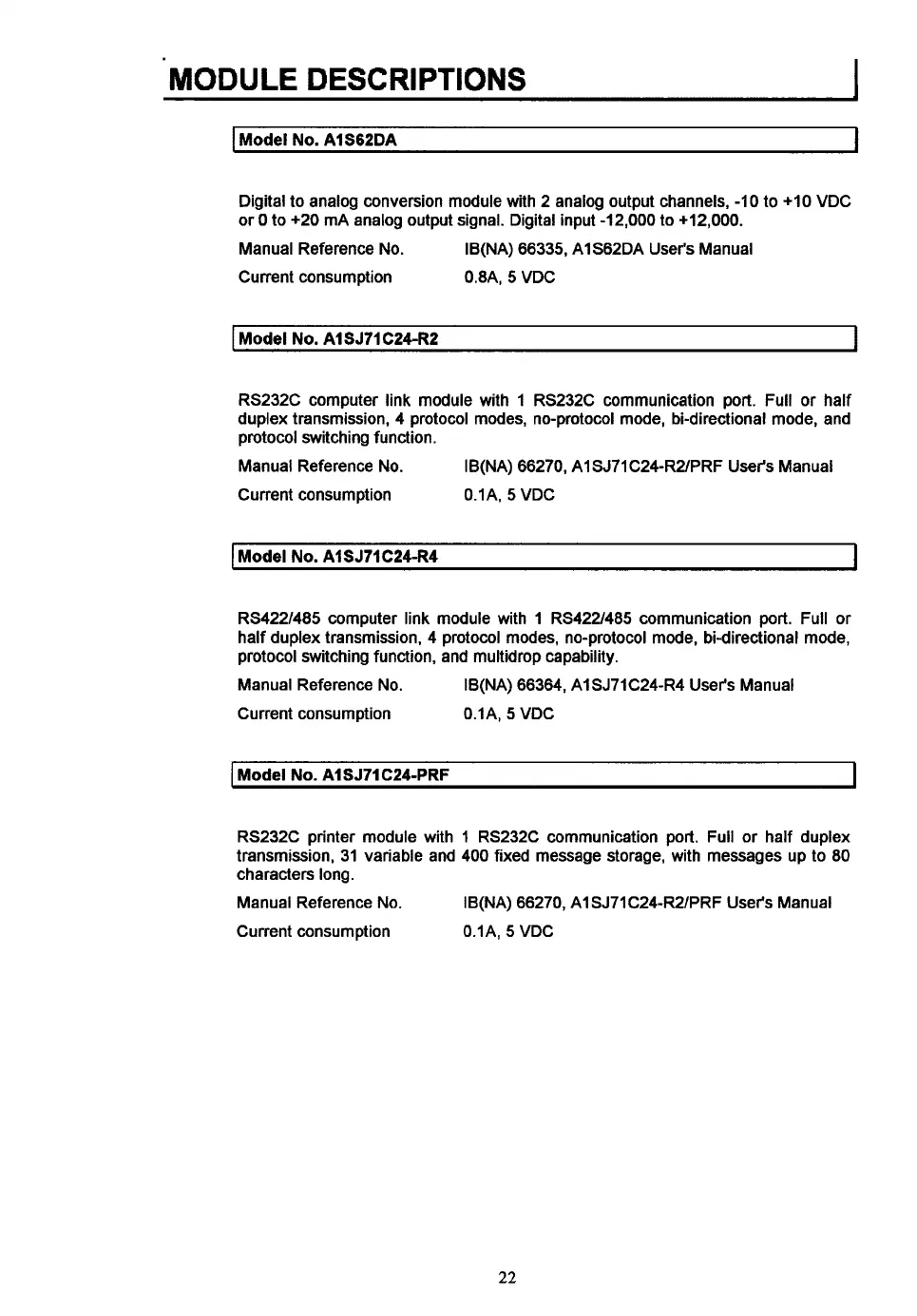

MODULE DESCRIPTIONS
I
I Model No. AlS62DA I
Digital to analog conversion module with 2 analog output channels, -1 0 to +10 VDC
or
0 to +20 mA analog output signal. Digital input -12,000 to +12,000.
Manual Reference No.
Current consumption OBA,
5 VDC
IB(NA) 66335, AlS62DA User's Manual
I Model No. AlSJllC24-RZ I
RS232C computer link module with 1 RS232C communication port. Full or half
duplex transmission, 4 protocol modes, no-protocol mode, bi-directional mode, and
protocol switching function.
Manual Reference No.
Current consumption
O.IA, 5 VDC
IB(NA) 66270, A1 SJ71 C24-RZPRF User's Manual
I Model No. AlSJ71C24R4
I
RS422/485 computer link module with 1 RS42Z485 communication port. Full or
half duplex transmission, 4 protocol modes, no-protocol mode, bi-directional mode,
protocol switching function, and multidrop capability.
Manual Reference No.
Current consumption O.lA,
5 VDC
IB(NA) 66364, AlSJ7lC24-R4 User's Manual
I Model No. AISJ71C24-PRF I
RS232C printer module with 1 RS232C communication port. Full or half duplex
transmission, 31 variable and 400 fixed message storage, with messages up to
80
characters long.
Manual Reference No.
Current consumption
O.lA, 5 VDC
IB(NA) 66270, A1 SJ71 C24-R2/PRF User's Manual
22
