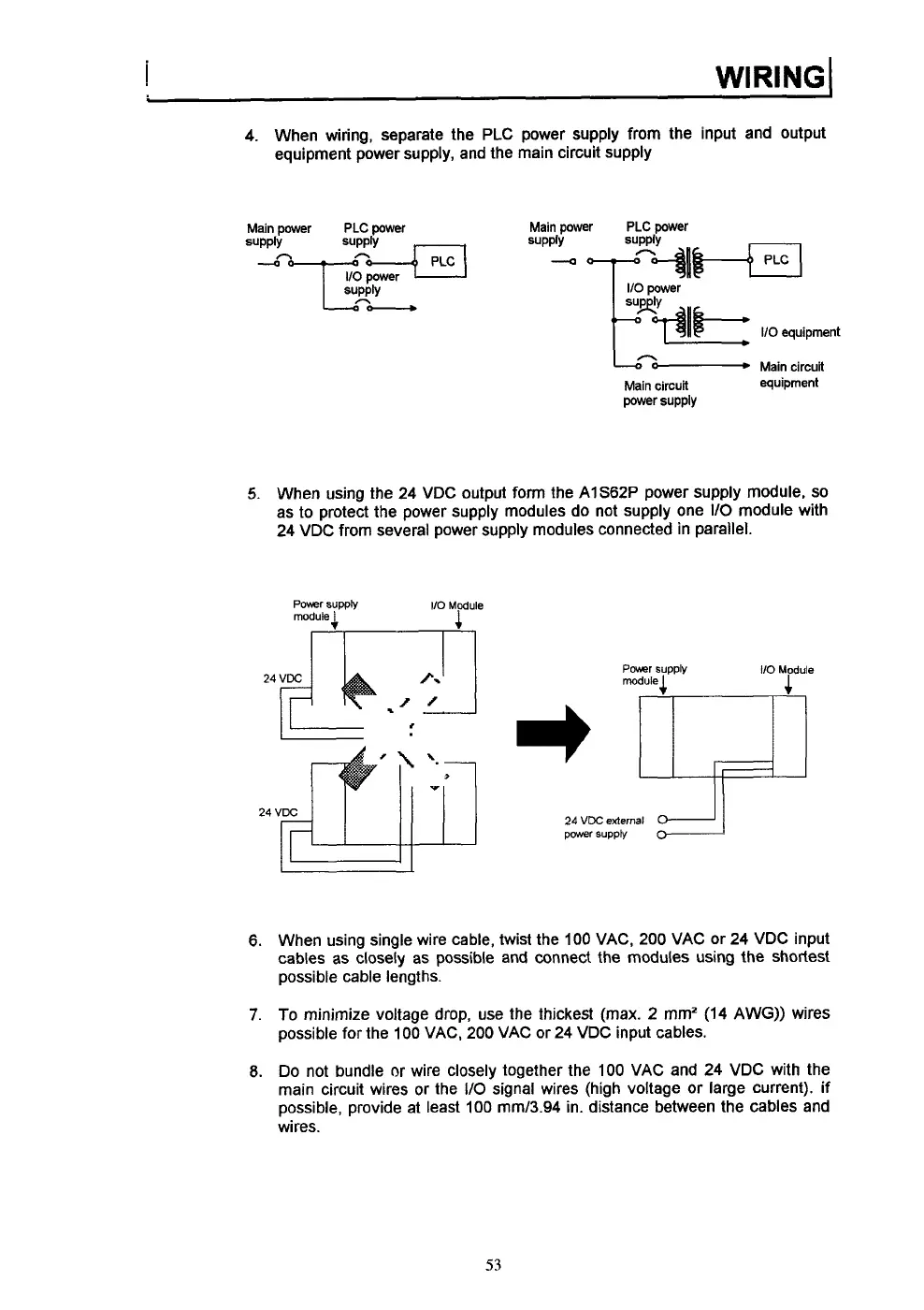

WIRING(
4. When wiring, separate the PLC power supply from the input and output
equipment power supply, and the main circuit supply
Main
~ower
PLC Dower
110
equipment
I--
Main circuit
Main circuit equipment
power supply
5.
When using the 24 VDC output form the AIS62P power supply module,
so
as
to
protect the power supply modules do not supply one
I/O
module with
24 VDC from several power supply modules connected in parallel.
Pow
supphl
I10
Module
module4
4
24
Pow
supply
I/O
Module
nwdulel
1
When using single wire cable, twist the 100 VAC, 200 VAC
or
24 VDC input
cables as closely as possible and connect the modules using the shortest
possible cable lengths.
To
minimize voltage drop, use the thickest (max.
2
mm2 (14
AWG))
wires
possible for the 100 VAC,
200
VAC
or
24
VDC input cables.
Do not bundle
or
wire closely together the 100 VAC and 24 VDC with the
main circuit wires
or
the
I/O
signal wires (high voltage or large current). if
possible, provide at least
100
mm13.94 in. distance between the cables and
wires.
53
