8-7.TEST POINT DIAGRAM

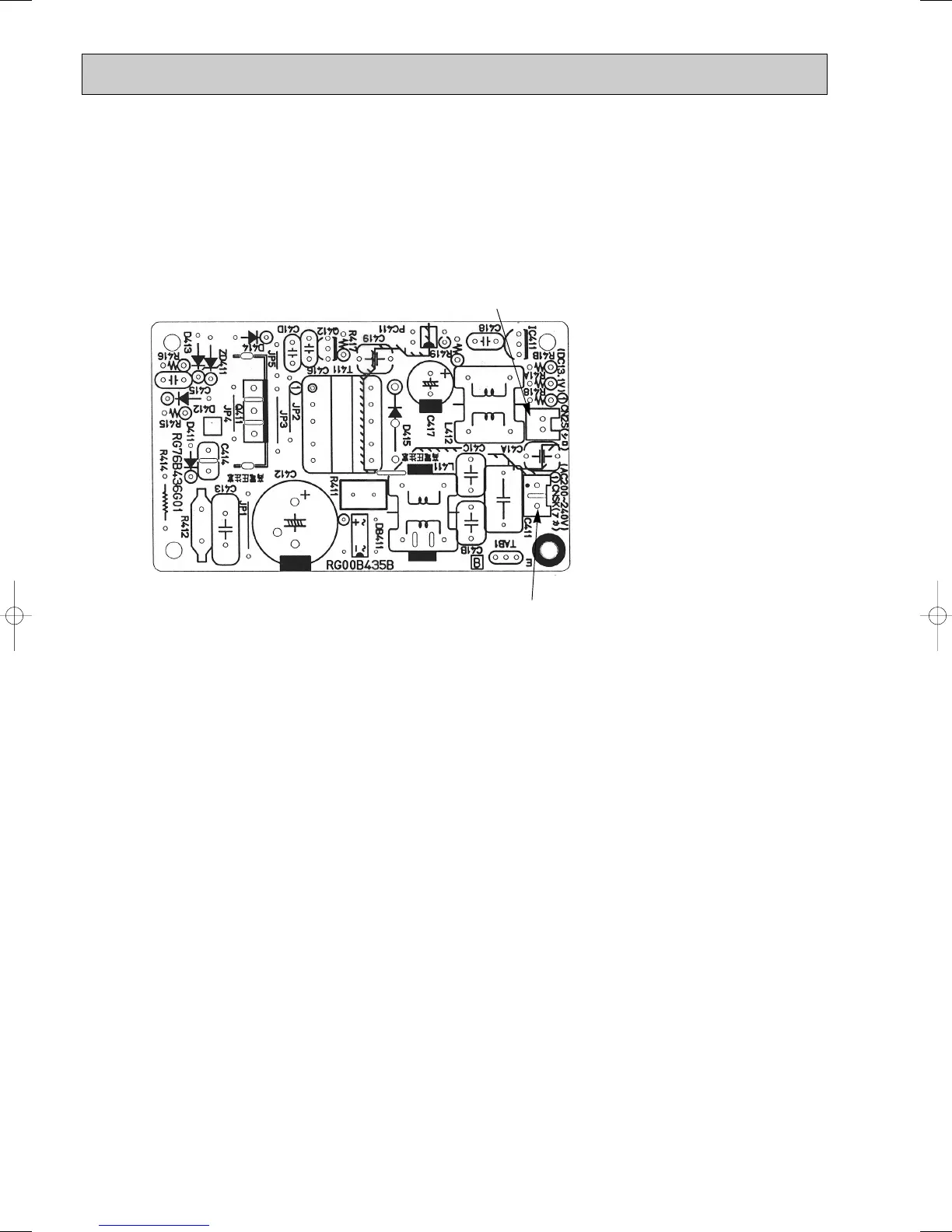

8-7-1. Power board
PLH-3AAK(H) PLH-4AAK(H) PLH-5AAK(H) PLH-6AAK(H)
CNSK
Connect to the indoor controller board
(CNDK)
Between
11
to
33
220-240V AC
CN2S
Connect to the indoor controller board (CN2D)
Between
11
to
33
12.6-13.7V DC (Pin
11
(+))
