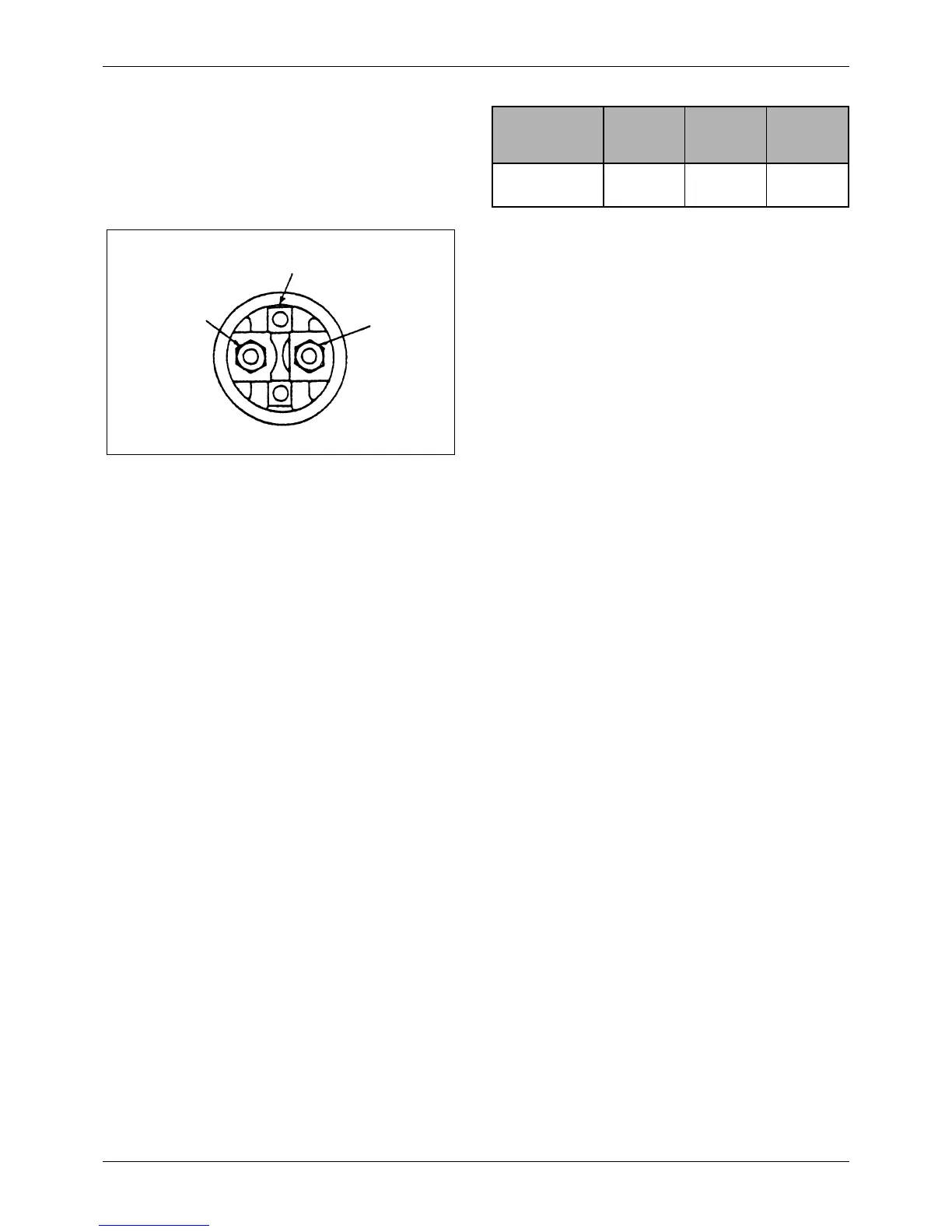

29.4.3 Solenoid Switch
Perform the following continuity tests. If the solenoid
switch fails either tests, replace it.
1) Test for Coil Open Circuit
Continuity should exists between the S- and
M-terminals and between the S-terminal and
ground (case).
2) Test for Fused Contacts
Continuity should not exist between the B-
and M-terminals.
Voltage
(V)
Current
(A)
Speed
(min
-1
)
No-Load
characteristics
11 130
maximum
3,600
minimum
M-terminal
S-terminal
B-terminal
