Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
ENGLISH
ALTERNATOR ELECTRICAL SYSTEM
122 / 195
ELECTRICAL SYSTEM
30 ALTERNATOR

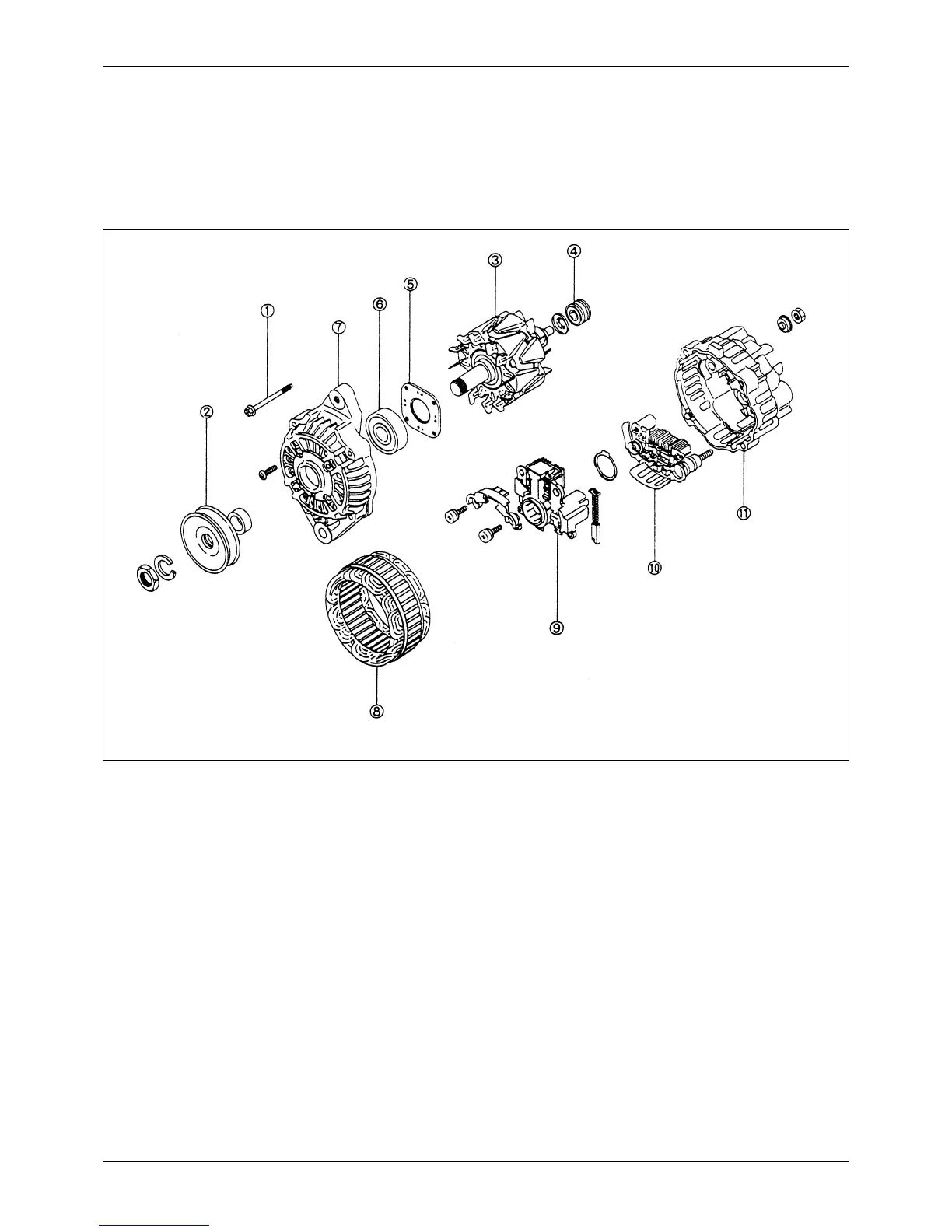

30.1 Disassembly
Disassembly sequence
1. Through bolt
2. Pulley
3. Rotor
4. Rear bearing
5. Bearing retainer
6. Front bearing
7. Front bracket
8. Stator core
9. Brush holder
10. Rectifier
11. Rear bracket
