Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
CYLINDER HEAD AND VALVE
MECHANISM
ENGLISH
DISASSEMBLY
DISASSEMBLY
14 CYLINDER HEAD AND
VALVE MECHANISM

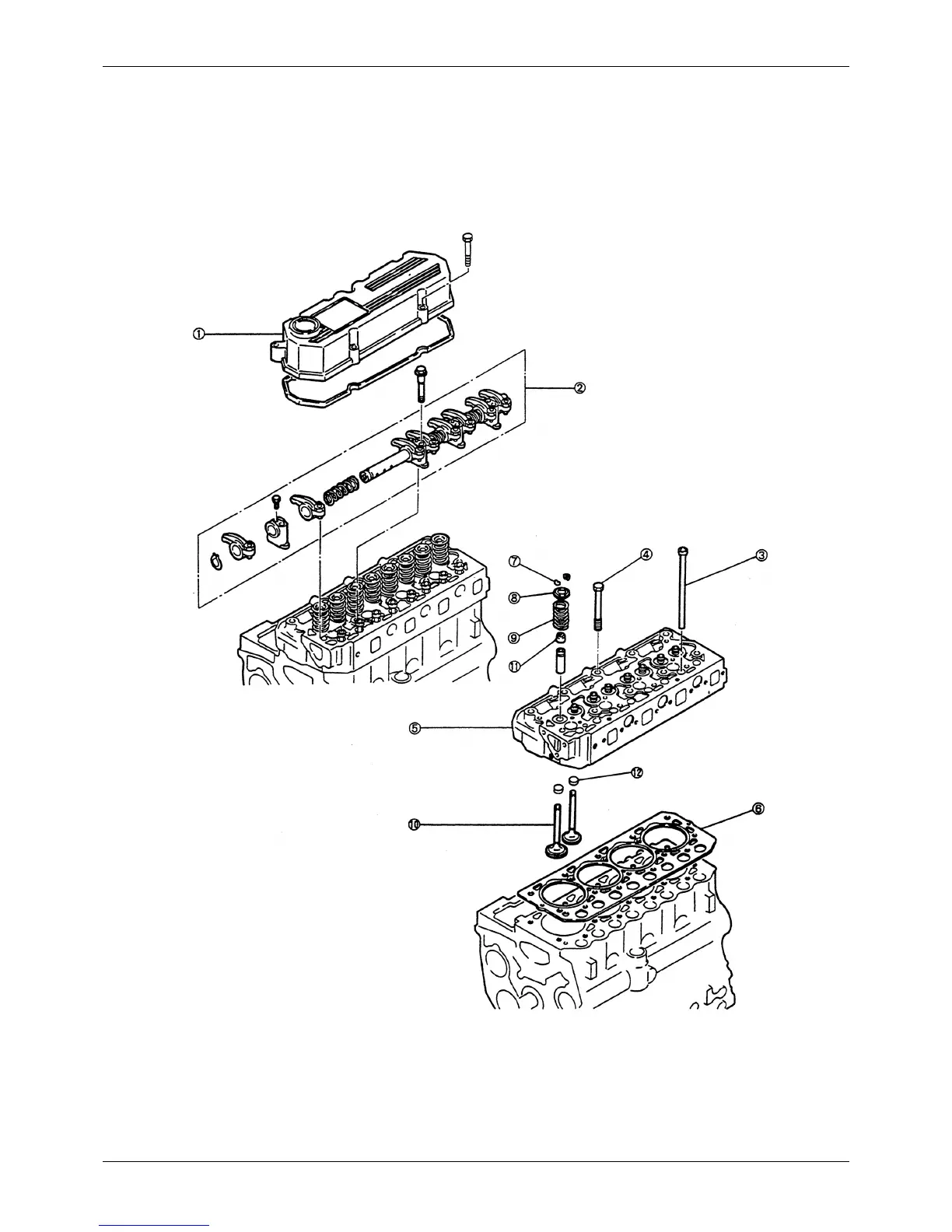

1. Rocker cover
2. Rocker shaft assembly
3. Valve push rod
4. Cylinder head bolt
5. Cylinder head
6. Cylinder head gasket
7. Valve lock
8. Valve retainer
9. Valve spring
10. Valve
11. Valve stem seal
12. Valve cap
