Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
ENGLISH
Fuel System DISASSEMBLY
40 / 195
t
11.4 Governor weight removal
1. Remove the sliding sleeve.
2. Remove the sliding sleeve shaft and governor
weights.
t
11.5 Fuel injection pump removal
1. Remove the tie rod cover.
2. Remove the spring from the tie rod with a pliers to
disconnect the tie rod from the fuel injection pump.
t
3. Remove the fuel injection pump.

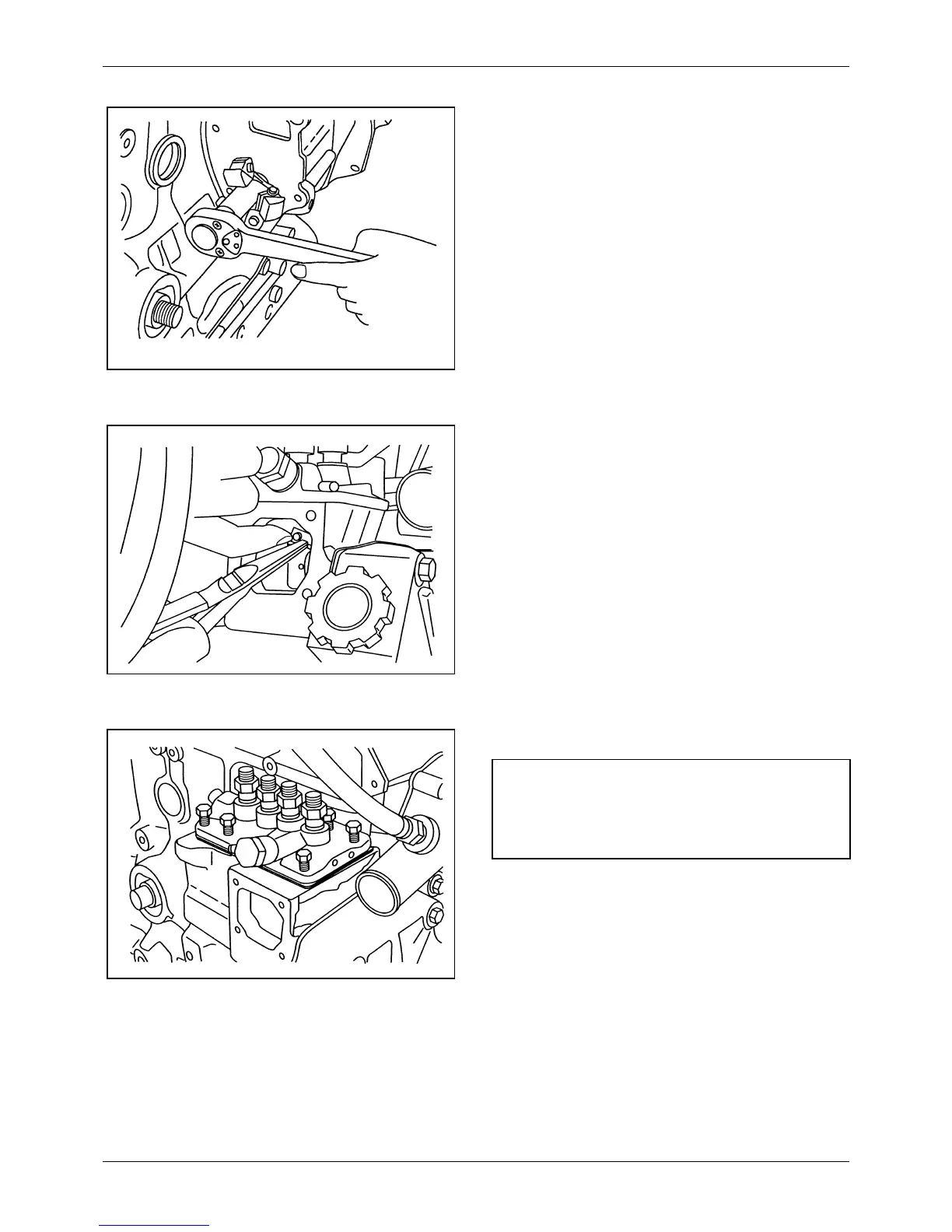

Figure 23 Removing governor weights
Figure 24 Removing tie rod
Figure 25 Removing fuel injection pump
NOTE
Keep a record of the thickness of shims for
installation.

Mitsubishi S3L2 Specifications

General

Engine Model	S3L2
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Displacement	1.318 L
Bore x Stroke	78 mm x 92 mm
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
