Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
ENGLISH
GOVERNOR FUEL SYSTEM
160 / 195
41.2 Assembly
1. Install the levers in position.
2. Put O-ring on the governor shaft.
3. Put the governor shaft in position in the governor
case and put the levers on the governor shaft.
4. Install the grooved pin and spring pin in position
with a hammer.
5. Install the tie rod and tie rod spring in position.

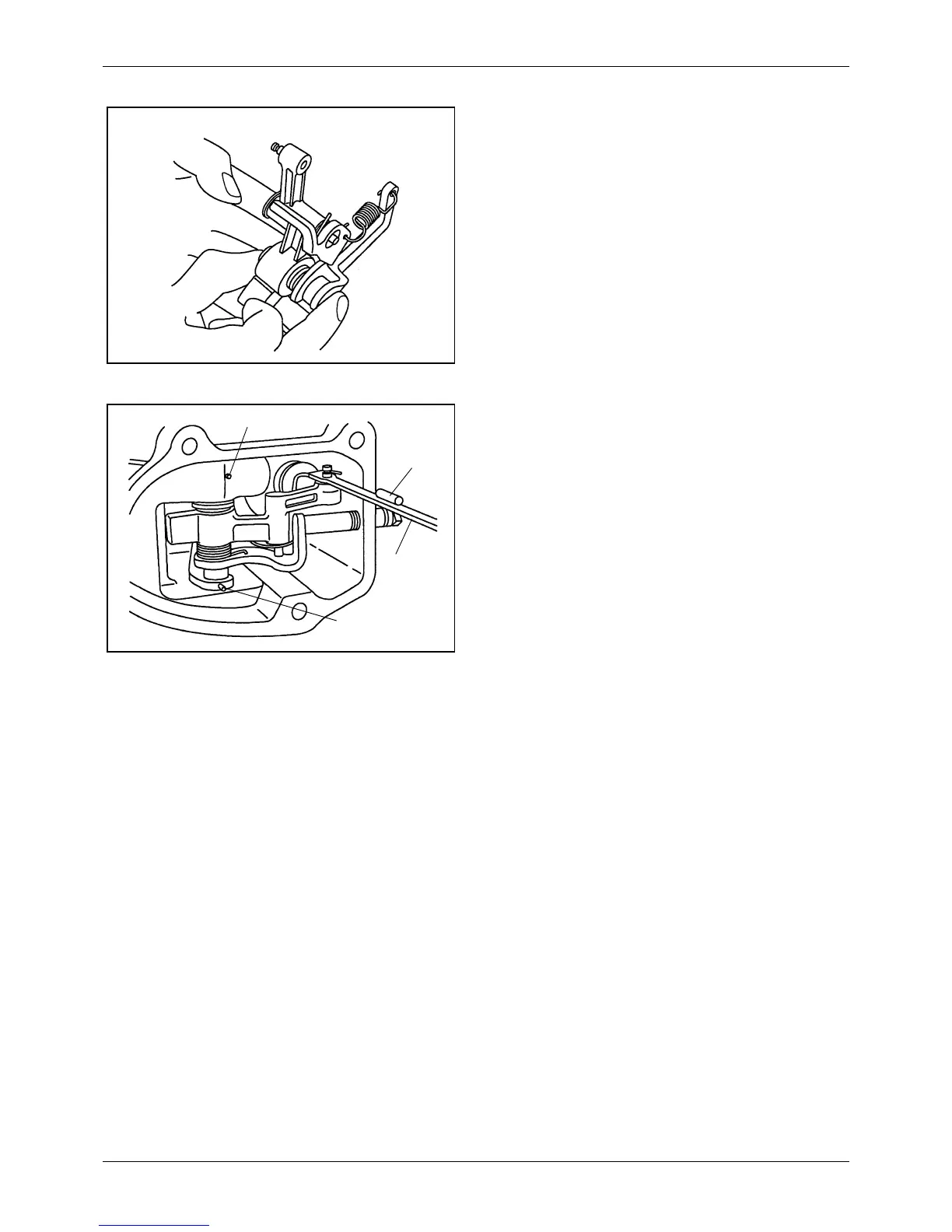

Figure 238 Installing governor levers
Figure 239 Assembling governor
Grooved pin
Tie rod
spring
Tie rod
Spring pin
