Mitsubishi S3L2 Service Manual

91 / 195
Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
Timing Gears and Flywheel
ENGLISH
ASSEMBLY
ASSEMBLY
21 Timing Gears and
Flywheel

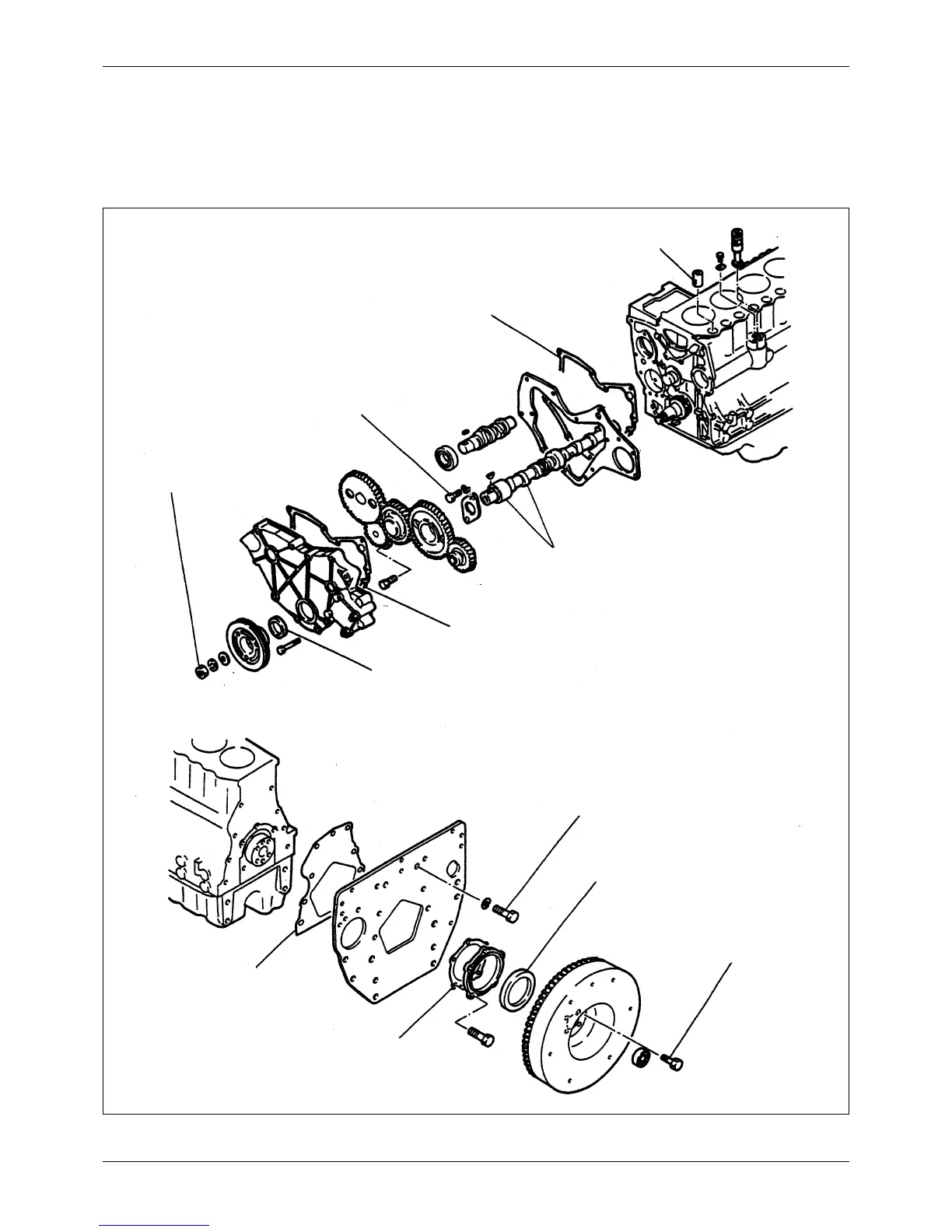

Figure 137 Inspection points
Lubricate with engine oil
Use a new gasket
Tightening torque:
1.1 ± 0.1 kgf m (8 ± 0.7 lbf ft)
[10.8 ± 1 N m]
Tightening torque:
17.5 ± 2.5 kgf m (127 ± 18 lbf ft)
[172 ± 25 N m]
Lubricate lip with engine oil
Use a new gasket
Lubricate journals and lobes with
engine oil
Use a new gasket
Use a new gasket
Tightening torque:
6.5 ± 1 kgf m (47 ± 7 lbf ft)
[64 ± 10 N m]
Lubricate lip with engine oil
Tightening torque:
13.5 ± 0.5 kgf m (98 ± 4 lbf ft)
[132 ± 5 N m]

Mitsubishi S3L2 Specifications

General

Engine Model	S3L2
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Displacement	1.318 L
Bore x Stroke	78 mm x 92 mm
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
