INSPECTION LUBRICATION SYSTEM
144 / 195
37.3 Pressure relief valve
1. Check the valve seat for contact. Check the spring
for damage.
2. Measure the oil pressure at which the relief valve
opens (the oil pressure with the engine running at
the rated rpm). If the pressure is not correct,
remove the cap nut and increase or decrease the
amount of shims. The engine oil pressure tap is
located on the right side of the engine.

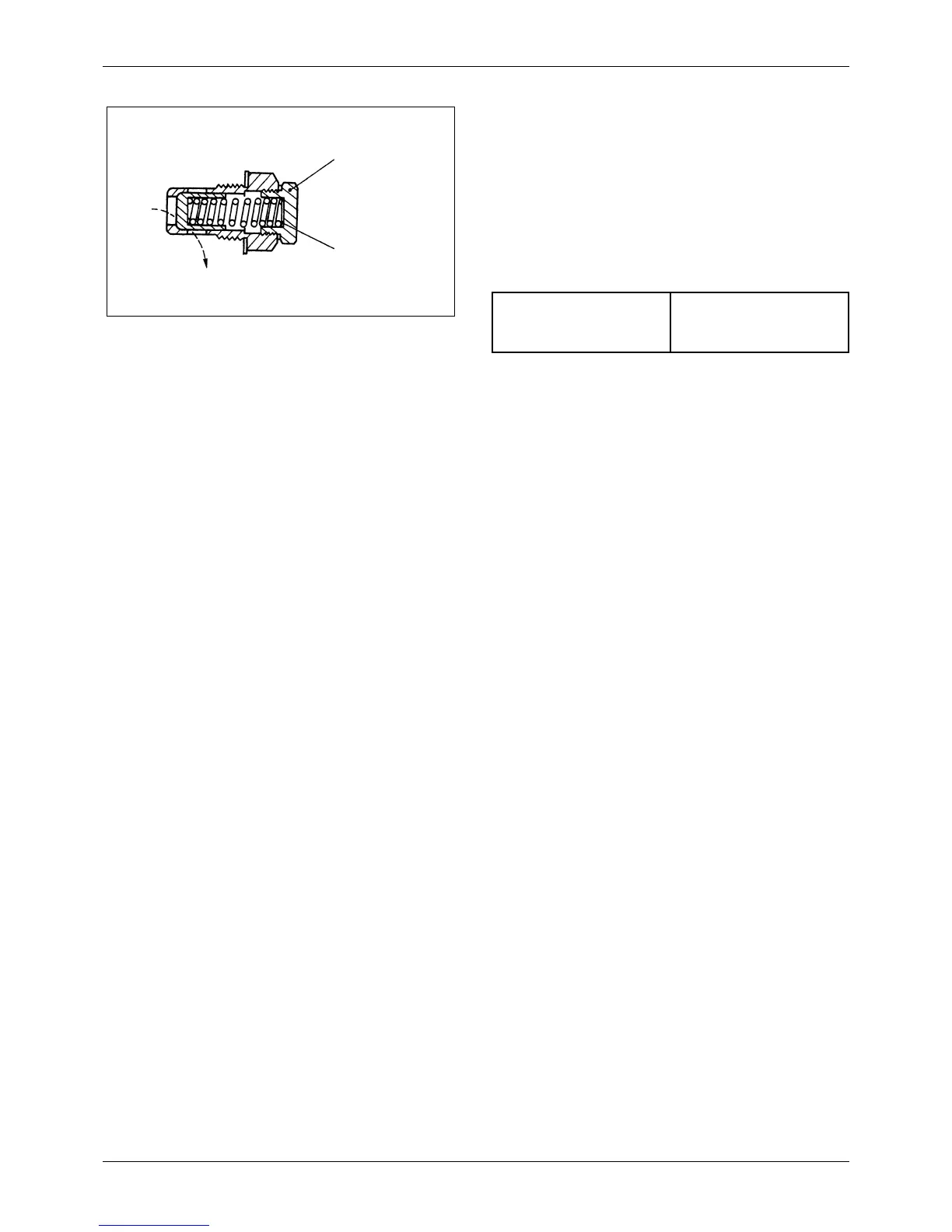

Figure 213 Checking pressure relief valve
Shims
Cap nut
Relief valve opening
pressure
3.5 ± 0.5 kgf/cm
2
(50 ± 7 psi)
[343 ± 49 kPa]

Mitsubishi S3L2 Specifications

General

Engine Model	S3L2
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Displacement	1.318 L
Bore x Stroke	78 mm x 92 mm
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
