Timing Gears and Flywheel
ENGLISH
ASSEMBLY
21.9 P.T.O. gear installation
Install the P.T.O. gear in position in the timing gear case
with the side that has no oil hole toward the rear of the
engine.
21.10 Speedometer driven gear
installation
1. Install the O-ring in the groove in the driven gear
sleeve.
2. Install the speedometer driven gear in position in
the cylinder block while rotating it or the camshaft.
21.11 Tappet installation
Lubricate the tappets with engine oil and put them in
position in the cylinder block.

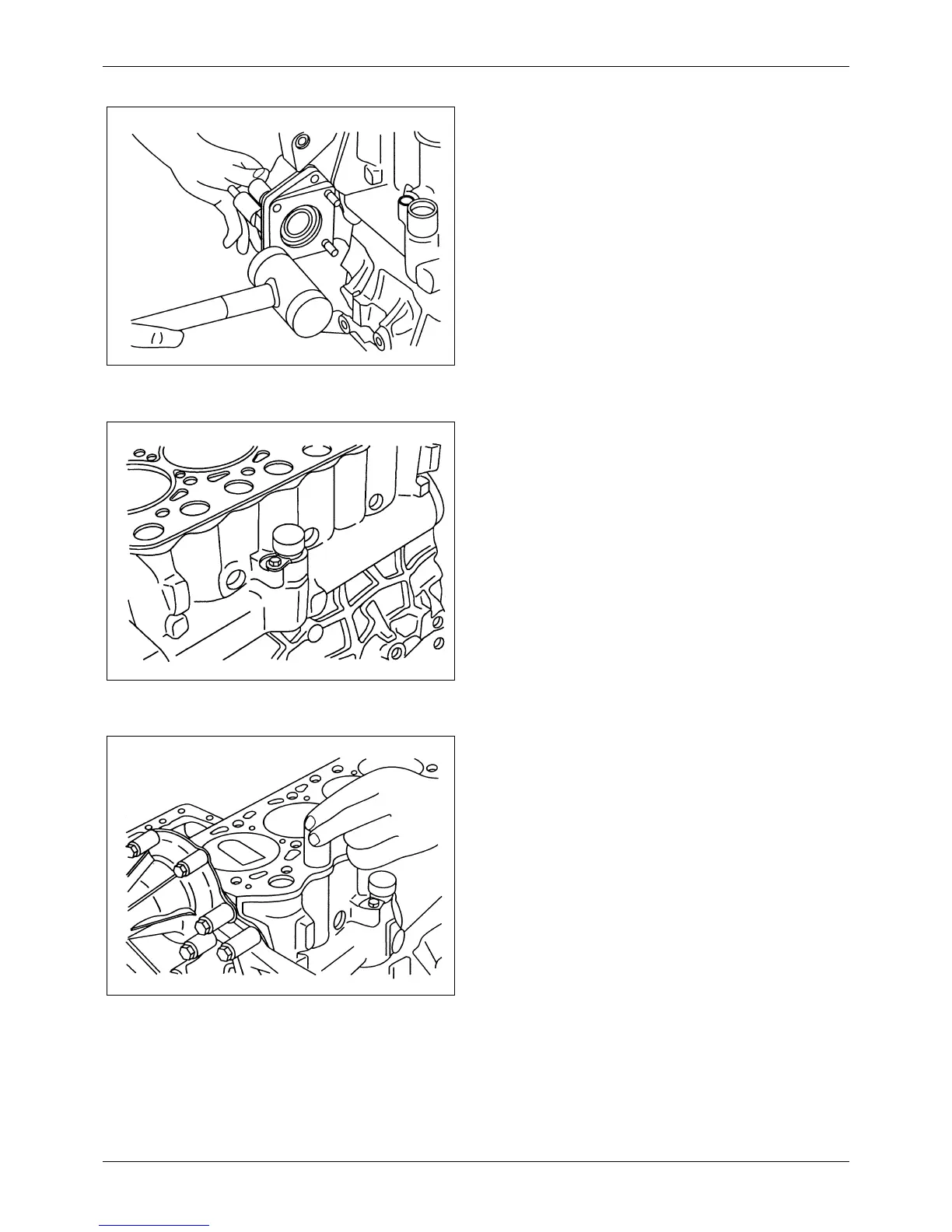

Figure 147 Installing P.T.O. gear
Figure 148 Installing speedometer driven gear
Figure 149 Installing tappets

Mitsubishi S3L2 Specifications

General

Engine Model	S3L2
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Displacement	1.318 L
Bore x Stroke	78 mm x 92 mm
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
