ALTERNATOR ELECTRICAL SYSTEM
126 / 195
2. Test for no continuity between each lead and stator
core as shown in the illustration. Any continuity
shows there is a grounded circuit in the stator core.
Replace the stator core.
30.2.4 Brushes
1. Make replacement of brushes that have been worn
down to, or beyond, the wear limit line.
2. To remove the brushes from the brush holder for
replacement, unsolder the leads from the brushes.
This will permit removal of the brushes and
springs.

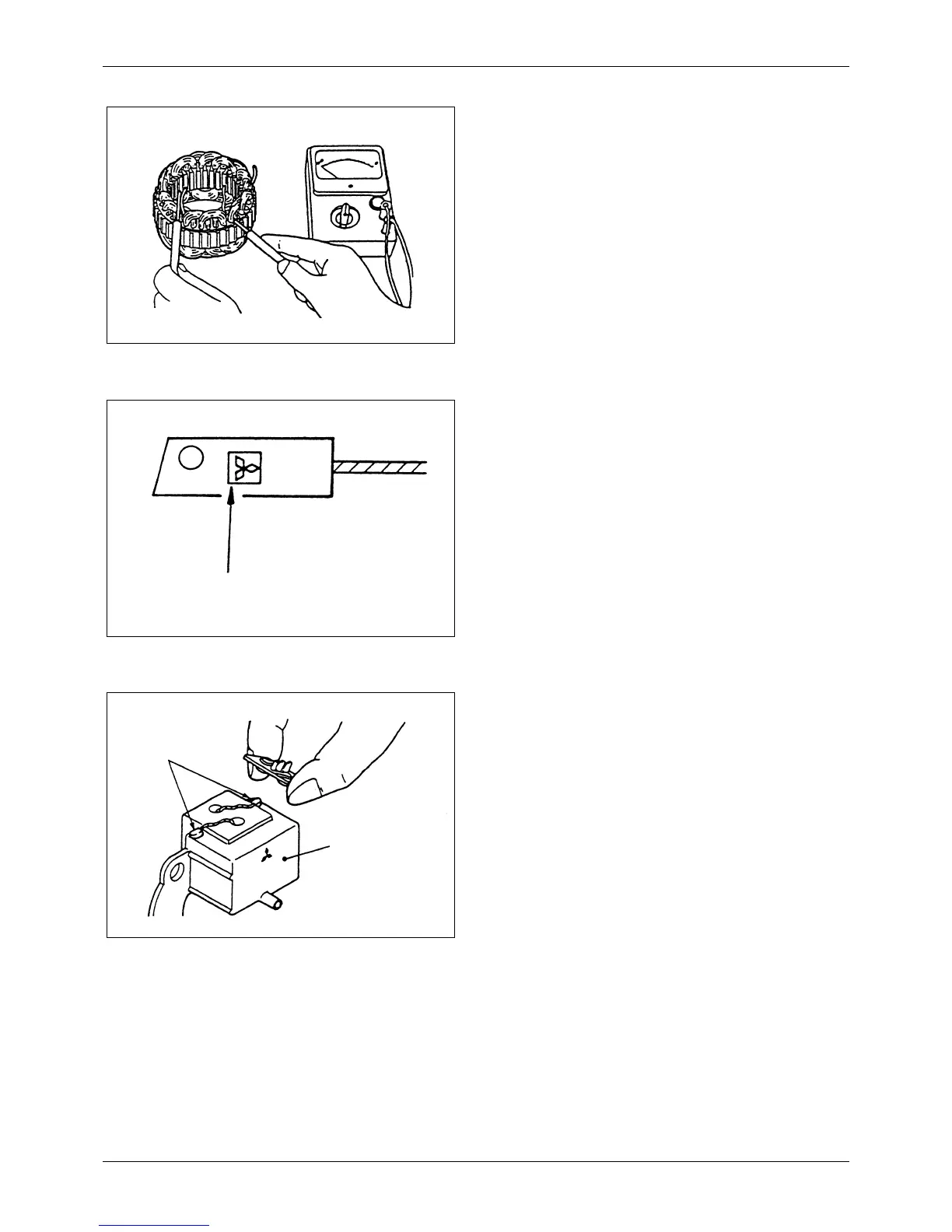

Figure 192 Testing stator core for grounded circuit
Figure 193 Checking brush for wear
Wear limit line
Figure 194 Removing brushes for replacement
Brush holder
Unsolder

Mitsubishi S3L2 Specifications

General

Engine Model	S3L2
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Displacement	1.318 L
Bore x Stroke	78 mm x 92 mm
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
