Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
CYLINDER HEAD AND VALVE
MECHANISM
ENGLISH
INSPECTION
2. To install a new jet, put the jet in position in the
head with its tangential orifice in alignment with the
center of the main chamber and tap it with a
plastic hammer. The new jet must be flush with the
cylinder head surface.

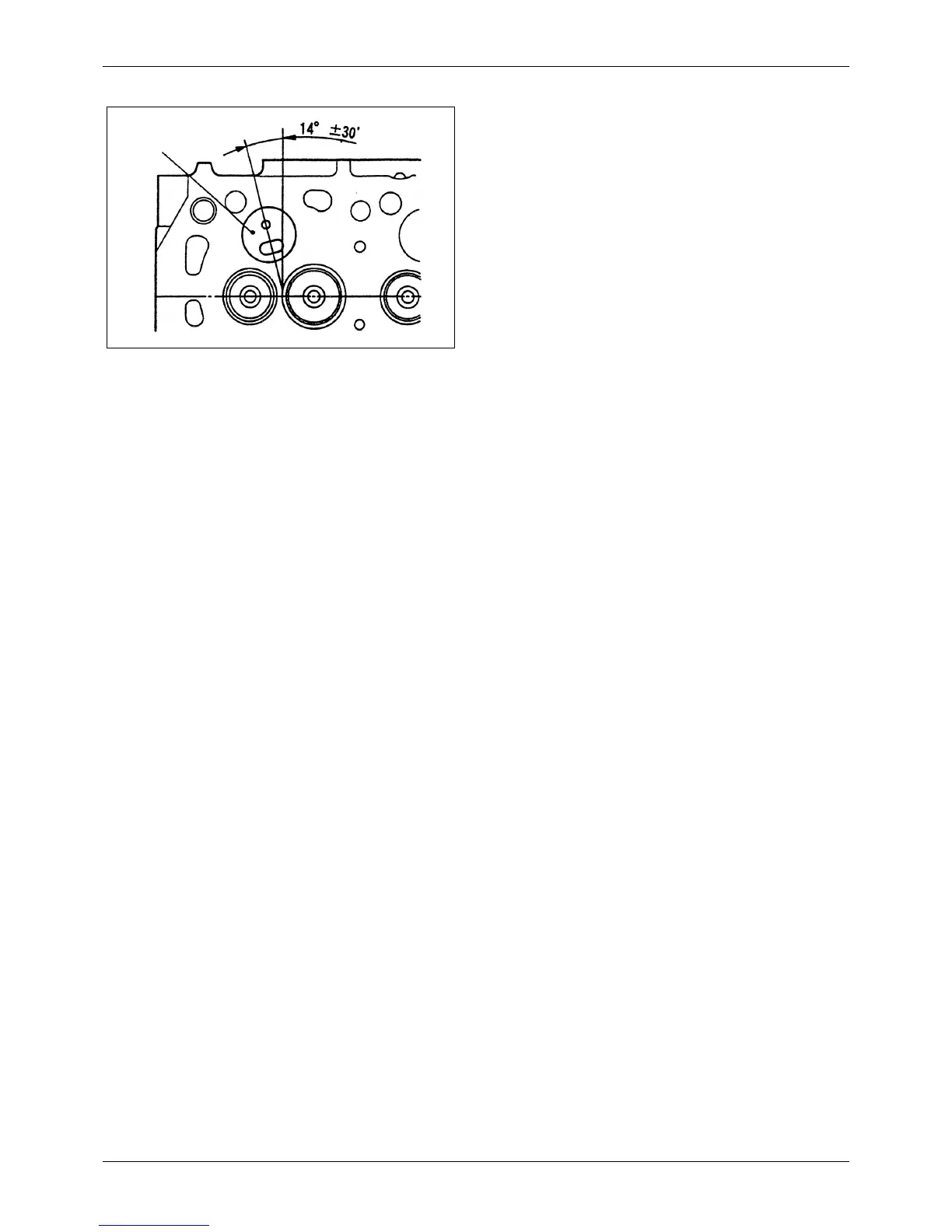

Figure 79 Installing combustion jet
Combustion jet

Mitsubishi S3L2 Specifications

General

Engine Model	S3L2
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Displacement	1.318 L
Bore x Stroke	78 mm x 92 mm
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
