18
DVD Player with Component
Video
(Figure 9)
1. Connect the Component Video cables from
(YCb Cr or YPbPr) VIDEO OUT on the back of
the DVD player to COMPONENT (1 or 2) on
the TV back panel. The correct connections are:
A. Y to Y
B. Cb or Pb to Pb
C.
Cr or Pr to Pr
2.
Connect a set of audio cables from AUDIO OUT
on the back of the DVD player to COMPONENT
AUDIO Input (1 or 2) on the TV back panel.
• The red cable connects to the R (right)channel
• The white cable connects to the L (left) channel
NOTE: Some video game systems support component
connections. Please refer to your video game
console Owner’s Guide.
NOTE: If your DVD player supports progressive
scan playback, be sure to set your player
accordingly. Please refer to your DVD player’s
Owner’s Guide.
Other S-Video Device
(Figure 10)
1.
Connect an S-Video cable from VIDEO OUT
on the device back panel to VIDEO INPUT-1 or
INPUT-2 on the TV back panel.
2.
Connect a set of audio cables from AUDIO OUT
on the device back panel to AUDIO INPUT-1 or
INPUT-2 on the TV back panel.
• The red cable connects to the R (right) channel
• The white cable connects to the L (left) channel
If your S-Video Device is mono (non-stereo), connect
only the white (left) cable.
See Appendix B, page 65, for component video
signal compatibility information.
For digital audio connections, see your DVD
and A/V receiver Owner’s Guides.

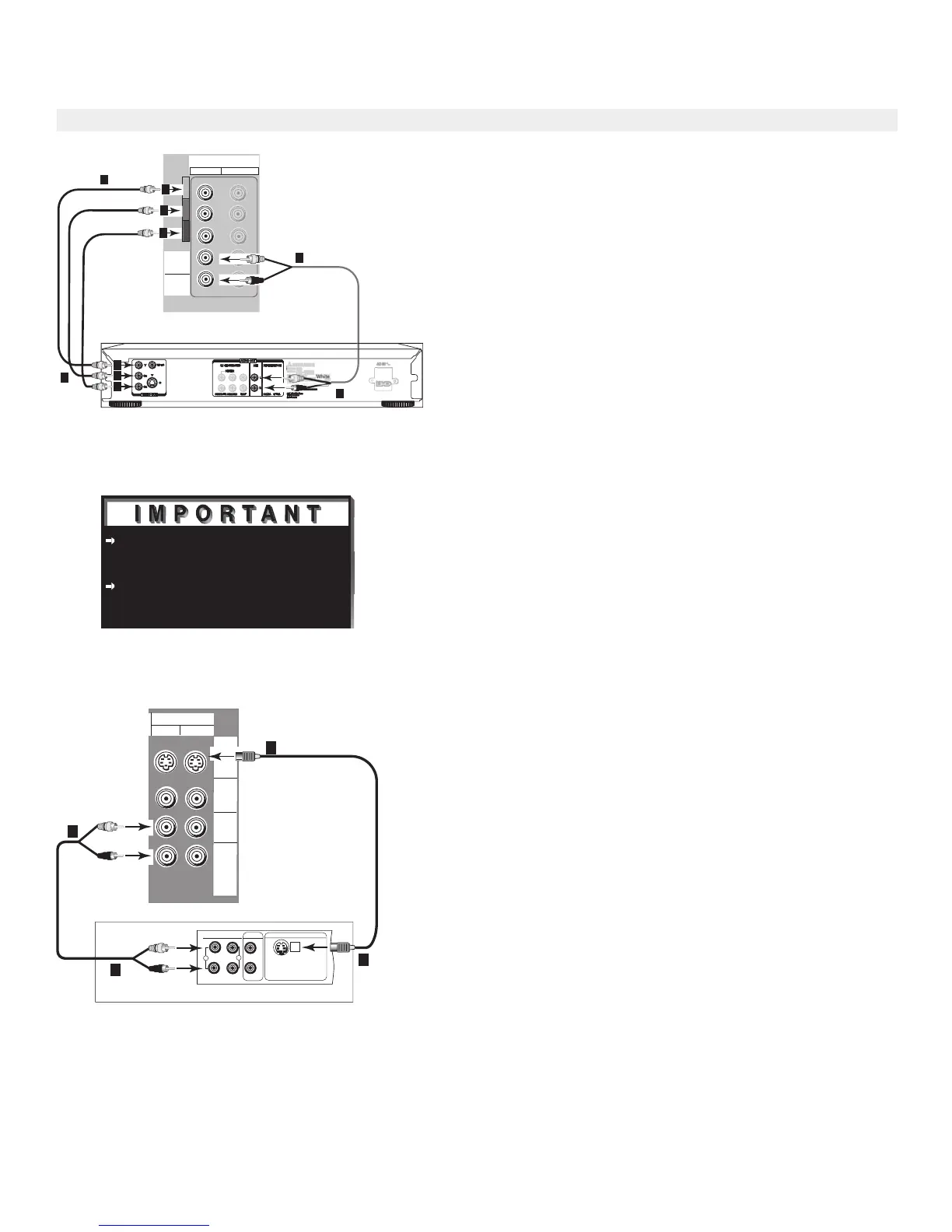

Figure 9. Connecting a DVD Player with Component
Video.
Figure 10. Connecting an S-Video Device.
�
�
Connecting a DVD Player or Other S-Video Device
Note: The TV back panel and connections shown here are for reference only and may vary by model.
