3. Operation

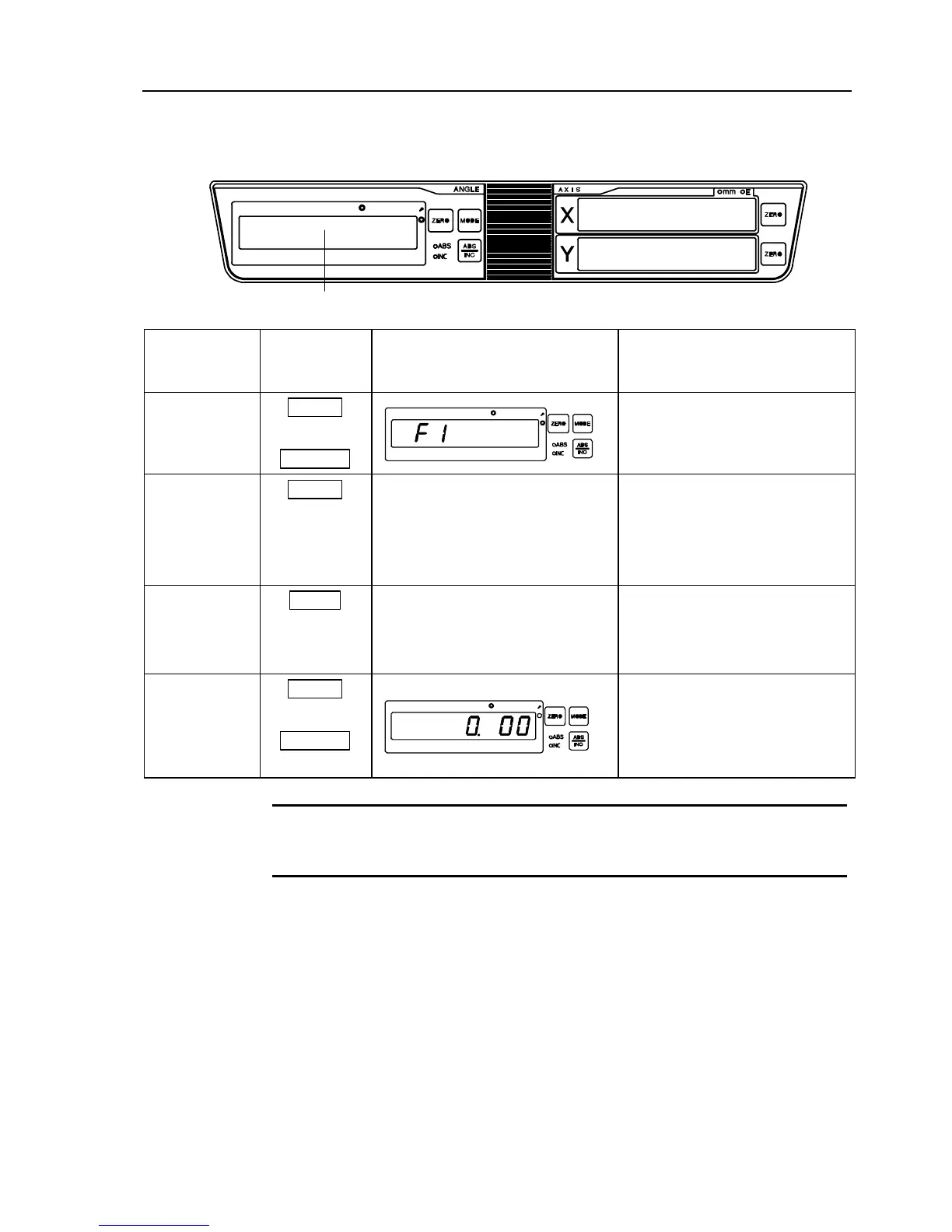

(2) Parameter setting procedure
Q-axis
Y-axis display unit
X-axis display unit
Parameter
setup
example
Button
operation
Q-axis display Operating procedure
cStarting the
parameter
setup mode
MODE
+
ABS/INC
Hold down the “MODE” and
“ABS/INC” buttons at a time
more than 3 seconds.
dSwitching
parameters
MODE
F1 → F2.1 → ∙∙∙
F8 → F9 → ∙∙∙
Each time the “MODE” button is
pressed, the parameter display
changes to the next in
incremental order. The
parameters are looped.
eSwitching
parameter
settings
ZERO
0.1 → 0.5 → 1.0 → 0.1 ∙∙∙
(For a resolution)
Each time the Q-axis zero-set
button is pressed, the parameter
setting changes to the next. The
parameter settings are looped.
fExiting the
parameter
setup mode
(Loading the
set content)
MODE
+
ABS/INC
Hold down the “MODE” and
“ABS/INC” buttons at a time
more than 3 seconds.
NOTE
The set content is not memorized in the counter, if turning the power switch of
projector off without performing the operation of f. Be sure to perform the
operation of
f when setting the parameter.
(3)
Correction of the angle counter
Correct the angle counter in order to perform the accurate measurement, before it is used for the
first time.
1.Turn the power switch ON, while the “ABS/INC” button of angle counter is pressed.
2. Adjust the intersection point with the cross hairs of screen glass and index to continue
pressing the angle display zero-set key for about three seconds. (It is possible to perform the
zero-set at the condition of ABS mode.)
No.99MBA043A 3 - 11
