OPERATION
hold the wire to prevent rapid uncoiling. Feed the wire into the wire feeder inlet guide tube
through to the drive roller.
(10) Carefully feed the wire over the drive roller into the outlet guide tube, feed through
about 150mm into the torch receptacle. Check that the drive roller size is compatible with
the wire diameter, replace the roller if necessary.
(11) Align the wire into the groove of the drive roller and close down the top roller making
sure the wire is in the groove of the bottom drive roller, lock the pressure arm into place.
Apply a medium amount of pressure to the drive roller.
(12) Remove the gas nozzle and contact tip from the torch neck.
(13) Press and hold the manual wire button to feed the wire through to the torch neck,
release the manual wire key when the wire exits the torch neck.
(14) Fit the correct sized contact tip and feed the wire through it, screw the contact tip into
the tip holder of the torch head and nip it up tightly.
(15) Fit the gas nozzle to the torch head.
(16) Carefully open the gas cylinder valve and set the required gas flow rate.
(17) Select 2T/4T/S4T/Spot Weld trigger function.
(18) Select the required MIG-MAG function, Select program number to suit the wire
diameter and gas type being used, it will show on the digital meter .
(19) Set the required welding parameters to suit the material thickness being welded, it will
show on the digital meter .

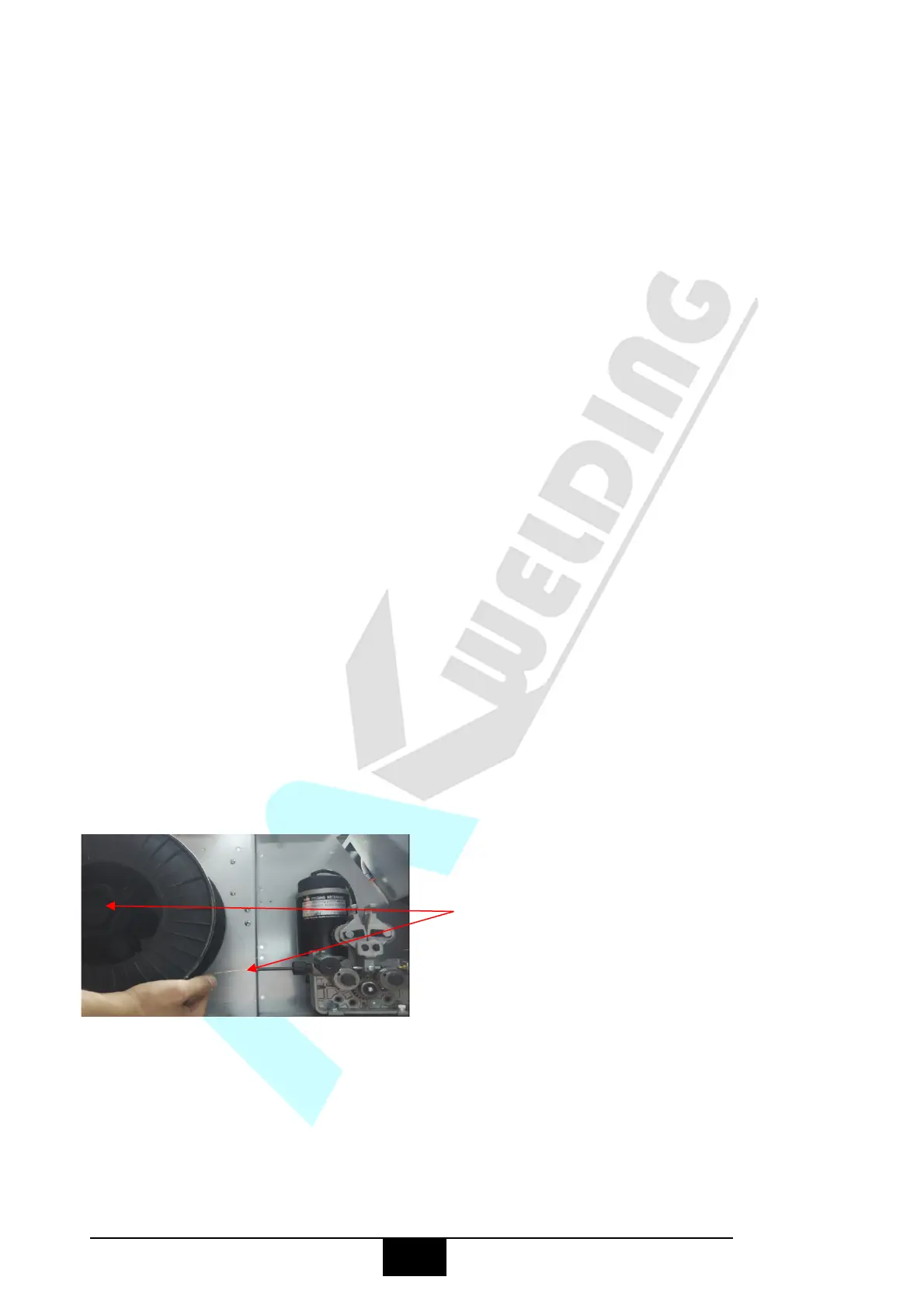

(9) Place wire onto spool holder - (spool retaining
nut is left hand thread ) Feed the wire through the
inlet guide tube on to the drive roller.
