2
2.0 USER INTERFACE
The Pocket LED Strobe has a two-line backlit alpha-numeric liquid crystal
display (LCD) and a four-key keypad that enables the user to control the
operation of the unit. The user interface is described in Figure 2 and Table 2.

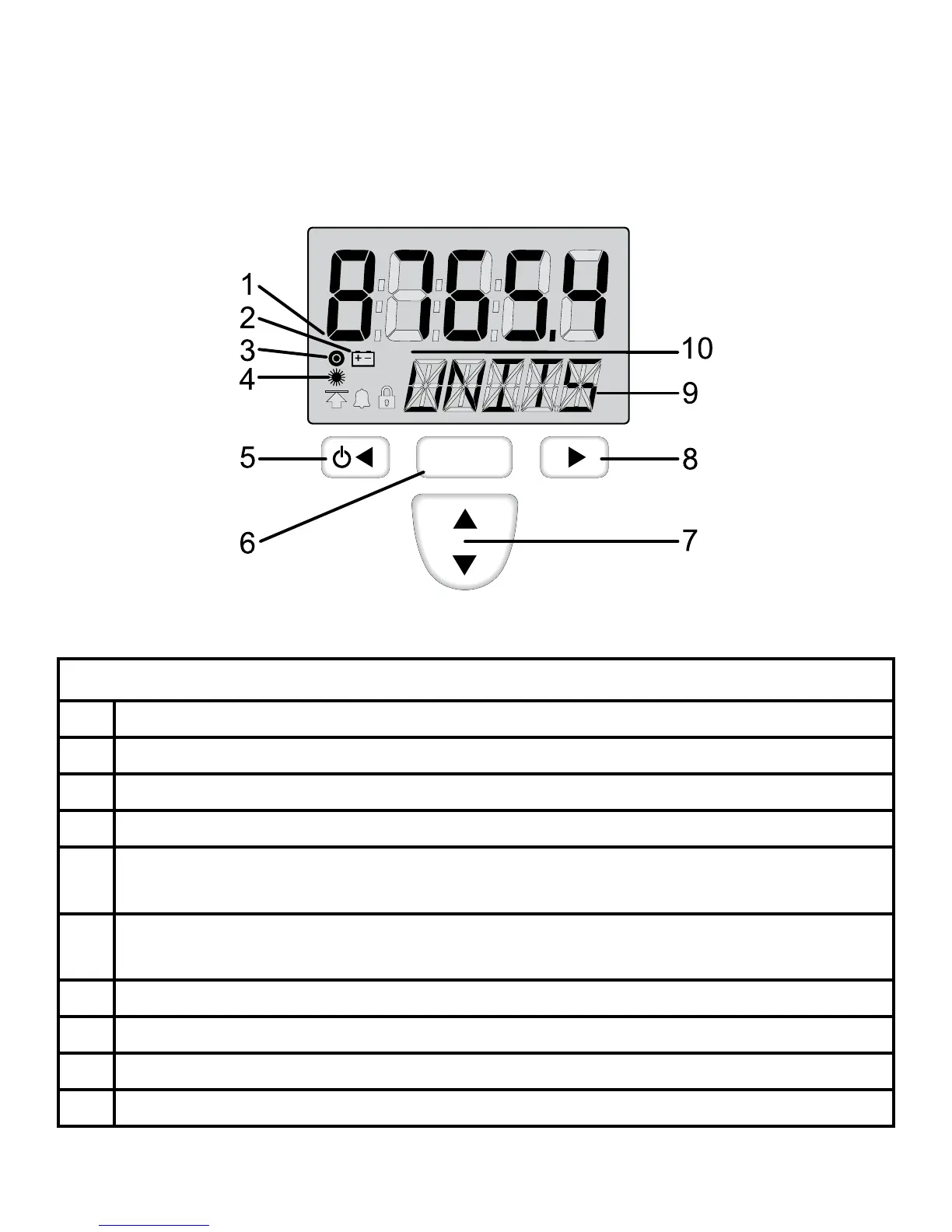

Figure 2 Pocket LED Strobe User Interface
Table 2 Pocket LED Strobe User Interface
1 5-digit display used to display fl ash rate and other numeric values
2 Ba ery icon - Ac ve when the ba ery is low
3 On Target Indicator - Ac ve when the input is locked on to a target
4 Star icon - Used to indicate current selec on in the menus
5 POWER / LEFT Arrow bu on - Turns the unit on and off . Also used as LEFT
Arrow for adjustments
6 MENU bu on - Allows access to the menus. Also used to con rm
selec ons
7 UP/DOWN bu on - Used to adjust fl ash rate and menu naviga on
8 RIGHT Arrow - Used to adjust fl ash rate and menu naviga on
9 5-digit alphanumeric display used to display units and other statuses
10 EXT icon - Ac ve when an external source is plugged into the unit
EXT
MENU
