10.5 Level Sense Connector

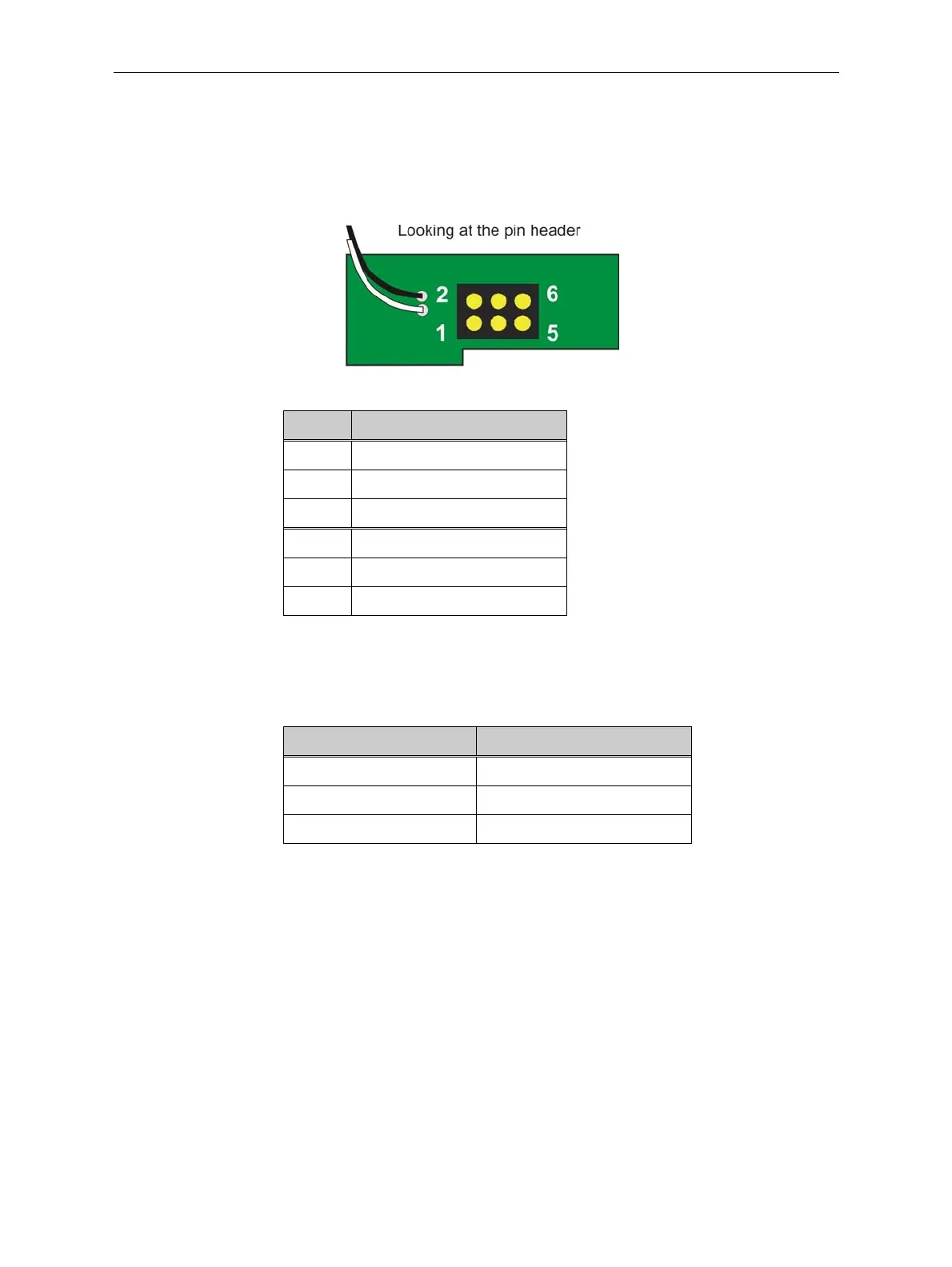

Figure 4: Level Sense Connector
Pin Function
1 High Level Plate
3 Low Level Plate
5 Plate Common
2 High Level Link
4 Low Level Link
6Link Common
Operation
To notify the hopper software that level plate sensors are fitted, the link pins should be
connected as follows…
Mode Connections
High level plates only pin 2 to pin 4
Low level plates only pin 4 to pin 6
High & low level plates pin 2 to pin 4 to pin 6
Otherwise, no connections should be made.
The level plates themselves should be connected through the corresponding plate pin ( pin 1
for high level, pin 3 for low level ) and the plate common ( pin 5 ).
