SCH2 Technical Manual TSP016.doc Issue 3.0 – January 2005
Money Controls 2005. All rights reserved.
Page 53 of 61
25. Appendix C
25.1 ccTalk Interface Circuit
This is the ccTalk electronic interface circuit on SCH2.
There are many options for the host interface circuit but we recommend an open-collector
drive.

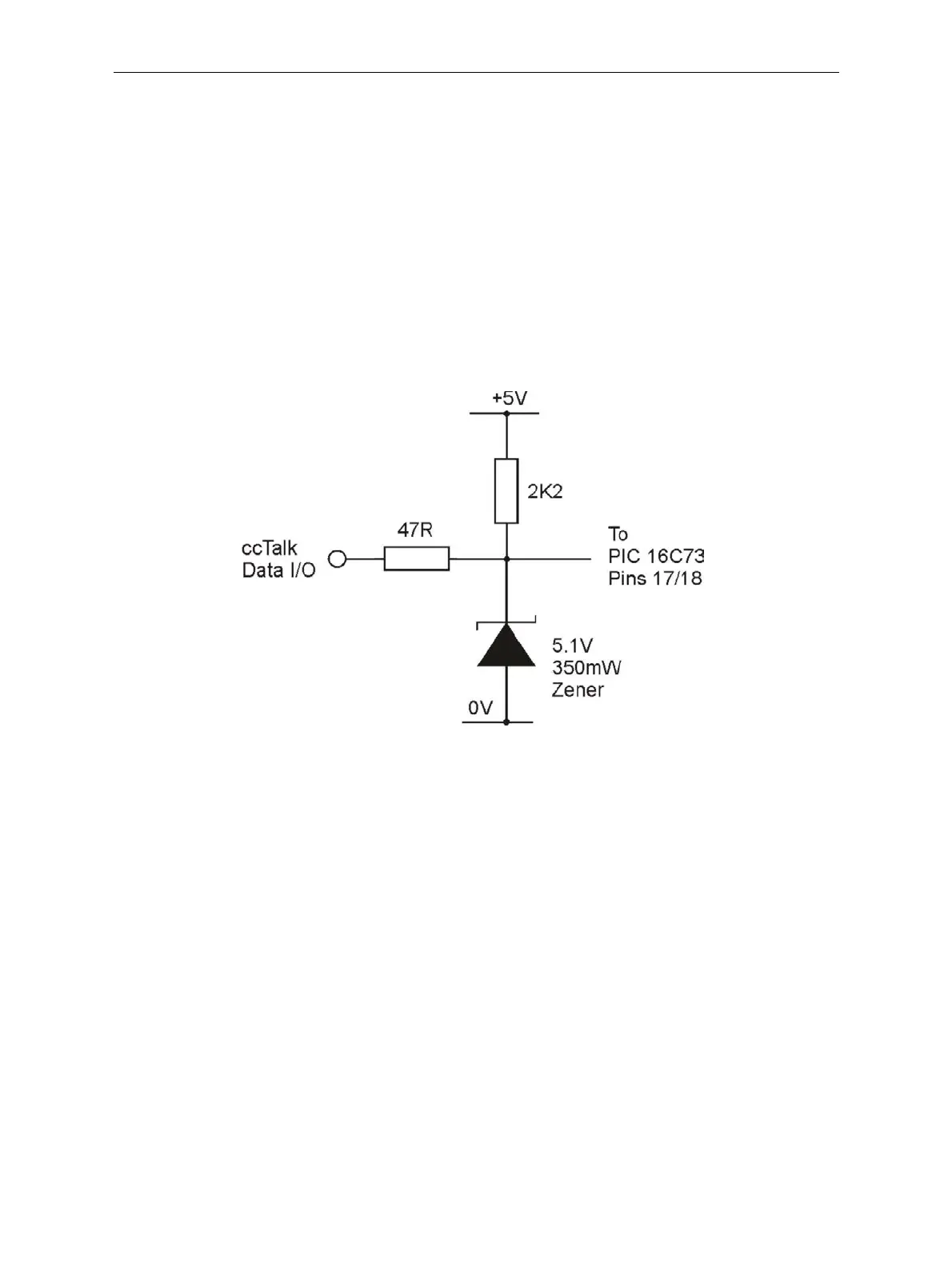

Figure 5: ccTalk Interface Circuit:
To Next Page
