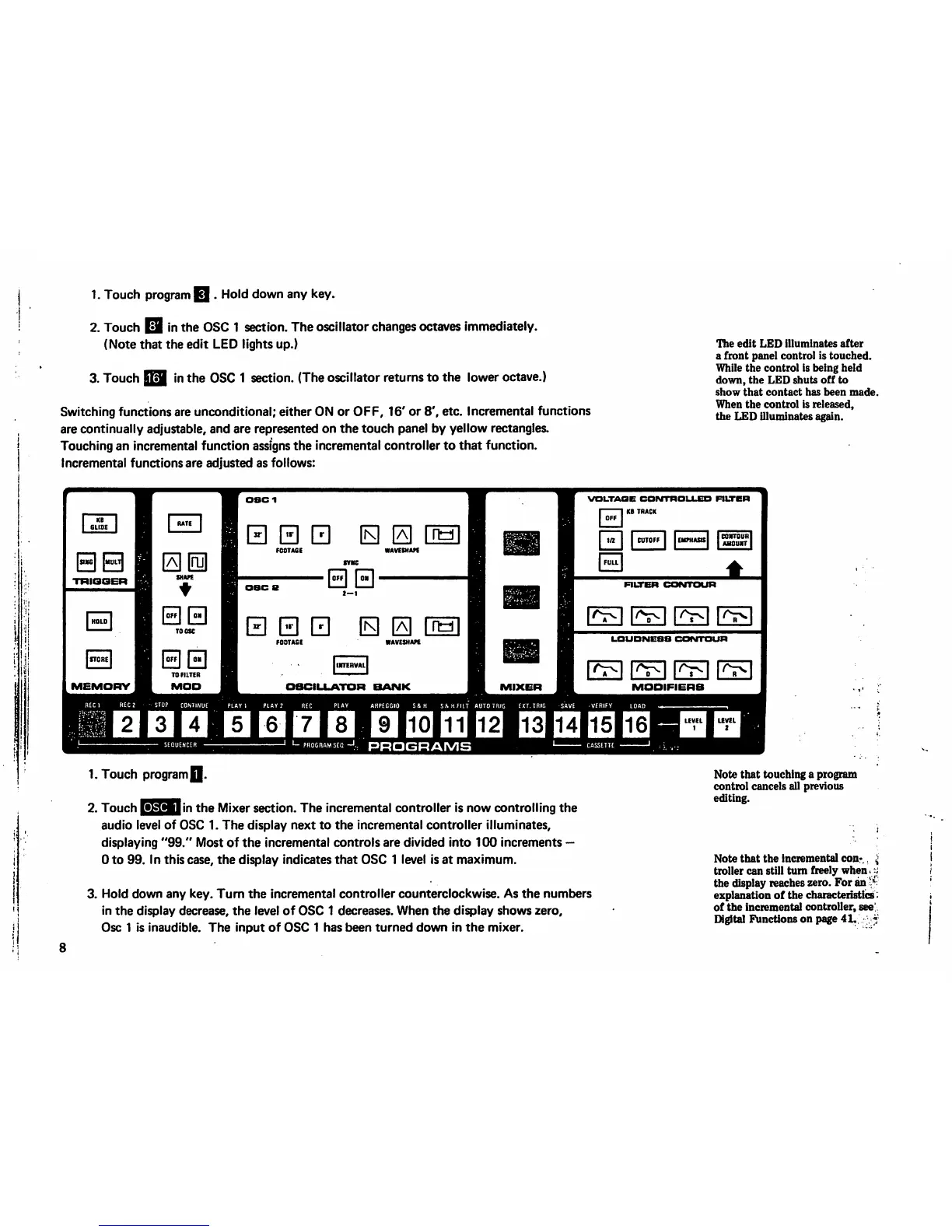

Moog THE SOURCE User Manual

1. Touch program Q - Hold down any key.
2. Touch LI in the OSC 1 section. The oscillator changes octaves immediately.
(Note that the edit LED tights up.)
3. Touch Q?H in the OSC 1 section. (The oscillator returns to the lower octave.)
Switching functions are unconditional; either ON or OFF, 16' or 8', etc. Incremental functions
are continually adjustable, and are represented on the touch panel by yellow rectangles.
Touching an incremental function assigns the incremental controller to that function.
Incremental functions are adjusted as follows:
The edit LED illuminates after
a front panel control is touched.
While the control is being held
down, the LED shuts off to
show that contact has been made.
When the control is released,
the LED illuminates again.
VOLTAGE CONTROLLED FILTER
KB TRACK
1. Touch programQ.
2. Touch |5J3JJJ'n the Mixer section. The incremental controller is now controlling the
audio level of OSC 1. The display next to the incremental controller illuminates,
displaying "99." Most of the incremental controls are divided into 100 increments -
0 to 99. In this case, the display indicates that OSC 1 level is at maximum.
3. Hold down any key. Turn the incremental controller counterclockwise. As the numbers
in the display decrease, the level of OSC 1 decreases. When the display shows zero,
Osc 1 is inaudible. The input of OSC 1 has been turned down in the mixer.
Note that touching a program
control cancels all previous
editing.
Note that the incremental con- «>
troller can still turn freely when, y
the display reaches zero. For an '-M
explanation of the characteristics.
of the incremental controller, see'
Digital Functions on page 41, -
8
