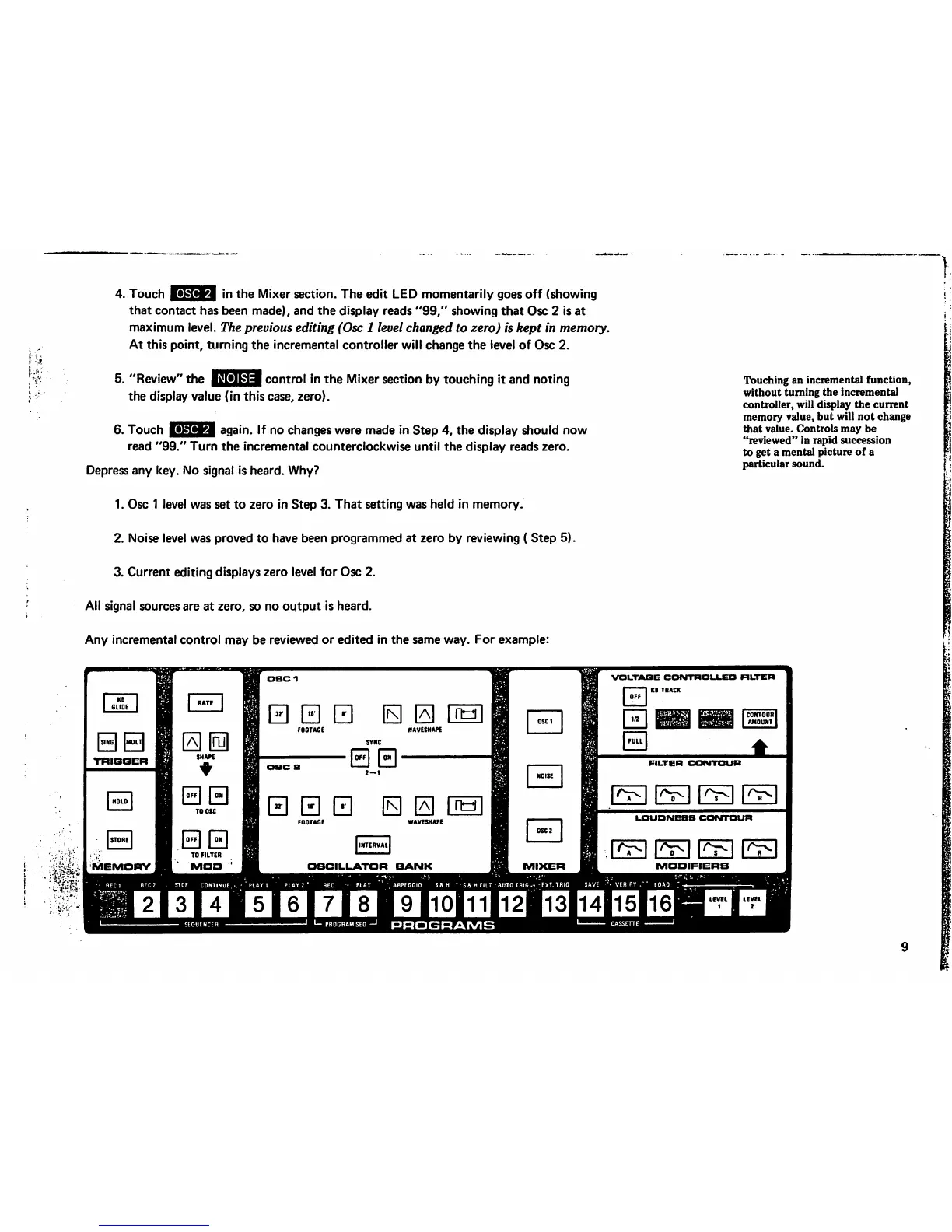

4. Touch PBftW in the Mixer section. The edit LED momentarily goes off (showing
that contact has been made), and the display reads "99f" showing that Osc 2 is at
maximum level. The previous editing (Osc 1 level changed to zero) is kept in memory.
At this point, turning the incremental controller will change the level of Osc 2.
5. "Review" the IZQEEl control in the Mixer section by touching it and noting
the display value (in this case, zero).
6. Touch ISSJEI again. If no changes were made in Step 4, the display should now
read "99." Turn the incremental counterclockwise until the display reads zero.
Depress any key. No signal is heard. Why?
1. Osc 1 level was set to zero in Step 3. That setting was held in memory.
2. Noise level was proved to have been programmed at zero by reviewing ( Step 5).
3. Current editing displays zero level for Osc 2.
All signal sources are at zero, so no output is heard.
Any incremental control may be reviewed or edited in the same way. For example:
Touching an incremental function,
without turning the incremental
controller, will display the current
memory value, but will not change
that value. Controls may be
"reviewed" in rapid succession
to get a mental picture of a
particular sound.
VOLTAGE CONTROLLED FILTER
KB TRACK
9
