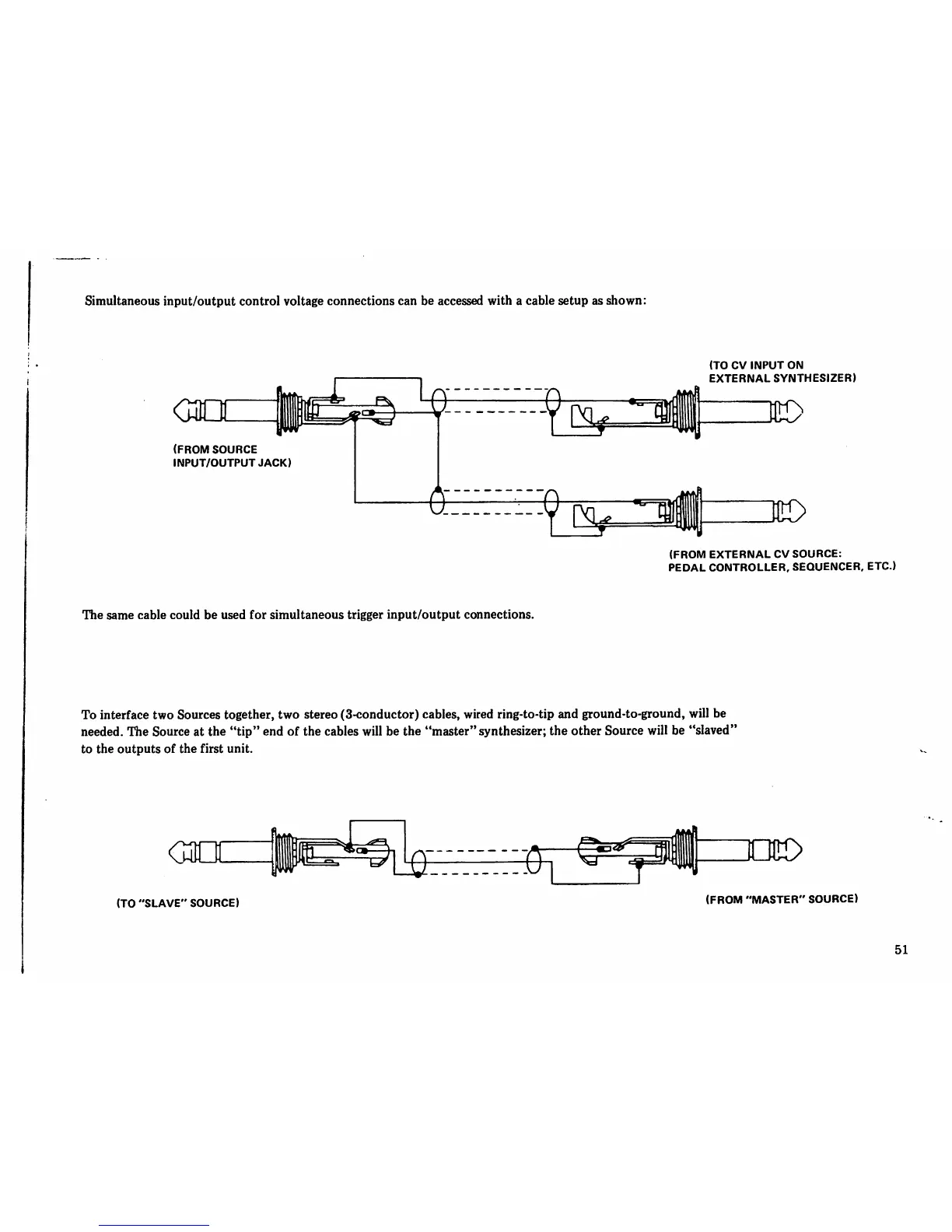

Simultaneous
input/output
control
voltage
connections
can
be
accessed
with
a
cable
setup
as
shown:
a::"::::j(
(FROM
SOURCE
INPUT/OUTPUT
JACK)
a:::::::::
The
same
cable
could
be
used
for
simultaneous
trigger
input/output
connections.
(TO
CV
INPUT
ON
EXTERNAL
SYNTHESIZER)
(FROM
EXTERNAL
CV
SOURCE:
PEDAL
CONTROLLER,
SEQUENCER,
ETC.)
To
interface
two
Sources
together,
two
stereo
(3-conductor)
cables,
wired
ring-to-tip
and
ground-to-ground,
will
be
needed.
The
Source
at
the
"tip"
end
of
the
cables
will
be
the
"master"
synthesizer;
the
other
Source
will
be
"slaved"
to
the
outputs
of
the
first
unit.
4
(TO
"SLAVE"
SOURCE)
(FROM
"MASTER"
SOURCE)
51
