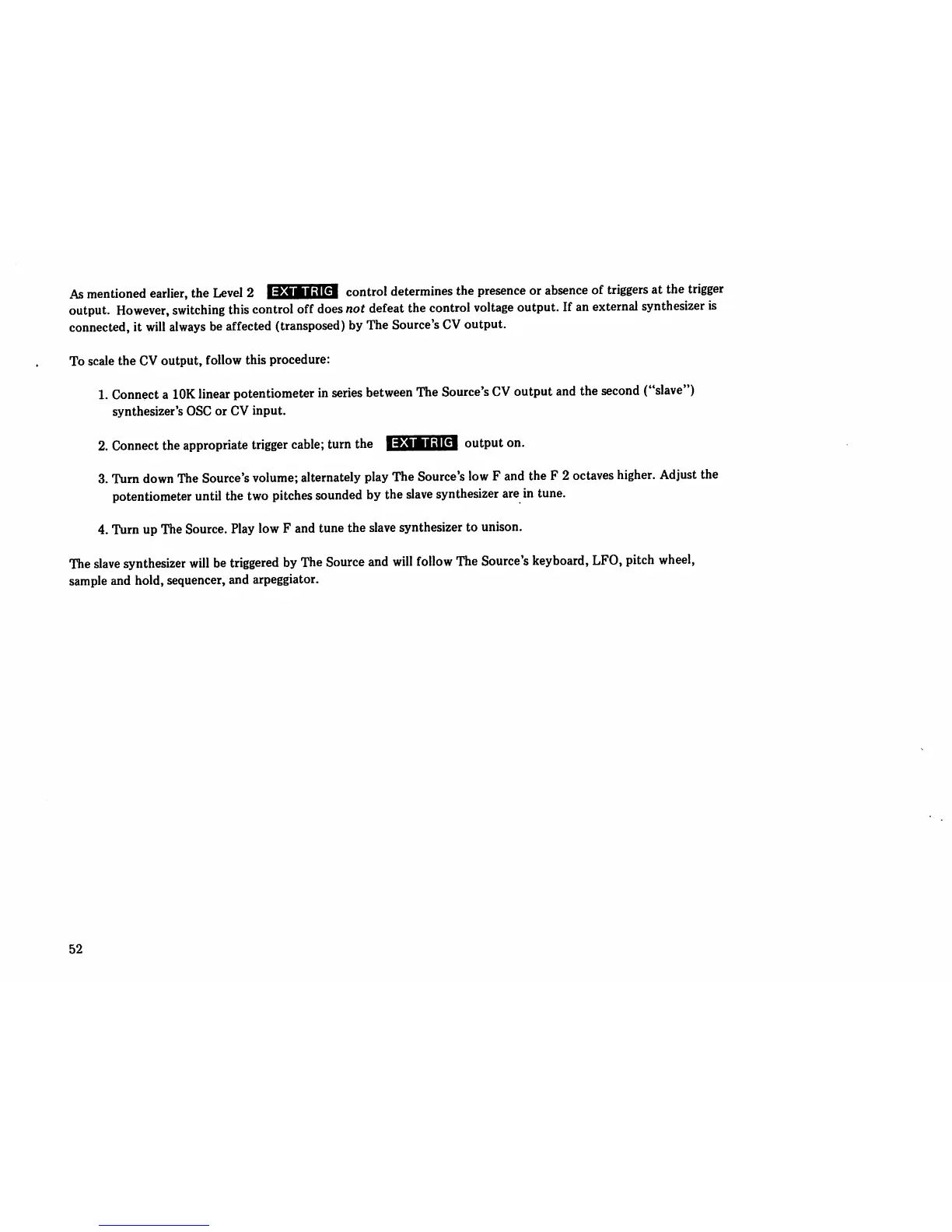

As mentioned earlier, the Level 2 MEiMfflci control determines the presence or absence of triggers at the trigger
output. However, switching this control off does not defeat the control voltage output. If an external synthesizer is
connected, it will always be affected (transposed) by The Source's CV output.
To scale the CV output, follow this procedure:
1. Connect a 10K linear potentiometer in series between The Source's CV output and the second ("slave")
synthesizer's OSC or CV input.
2. Connect the appropriate trigger cable; turn the l:»:«i;uci output on.
3. Turn down The Source's volume; alternately play The Source's low F and the F 2 octaves higher. Adjust the
potentiometer until the two pitches sounded by the slave synthesizer are in tune.
4. Turn up The Source. Play low F and tune the slave synthesizer to unison.
The slave synthesizer will be triggered by The Source and will follow The Source's keyboard, LFO, pitch wheel,
sample and hold, sequencer, and arpeggiator.
52
