74
© 2014 Skier’s Choice, Inc.

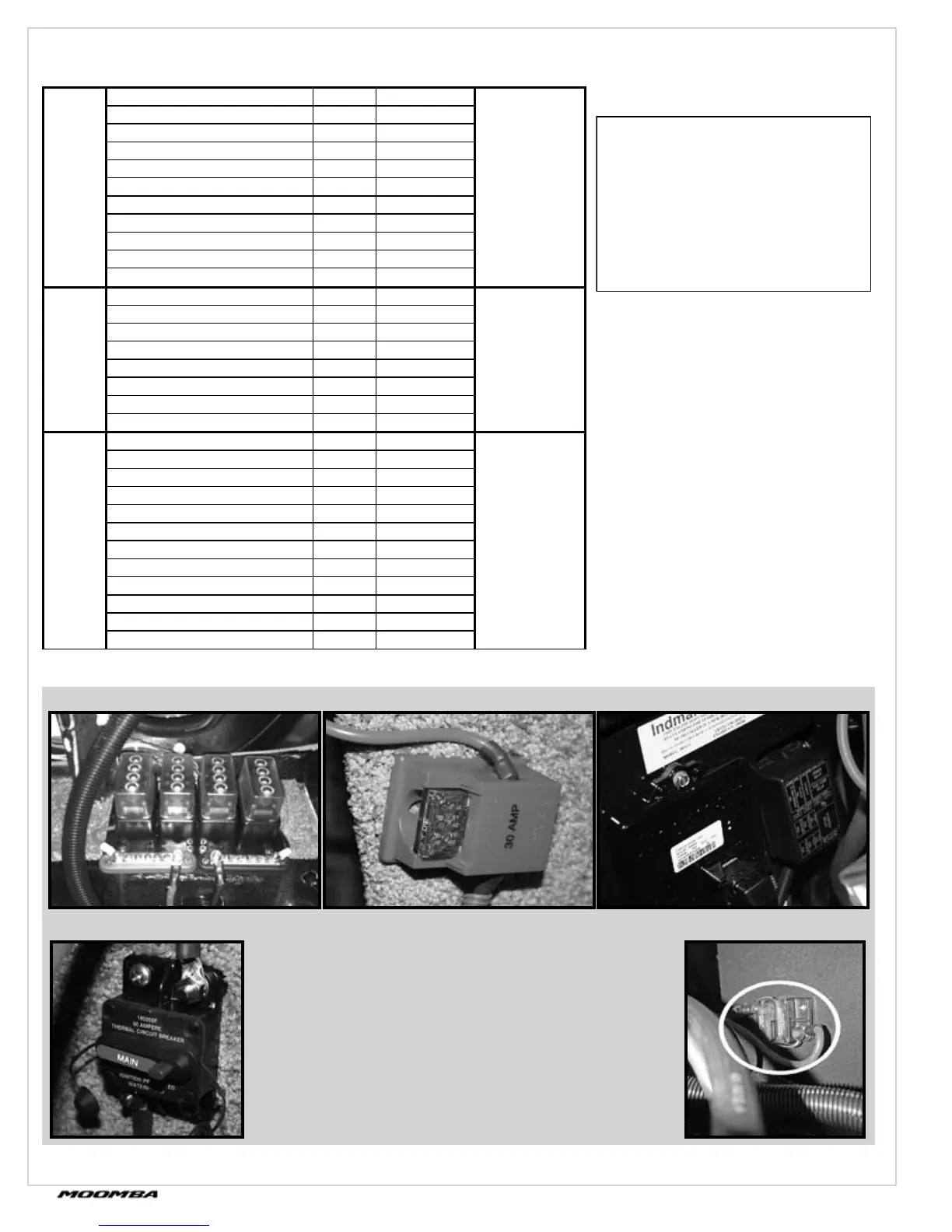

Fuse Panel - Under Dash Fuse Panel - Battery Connection Fuse Panel - Back of Engine
Main Dash Power-Circuit Breaker
The power to the dash circuit is protected by a circuit breaker that
is located in the observer seat storage area near the battery.
To turn o the power to the dash, manually press the red button
and the circuit breaker reset lever will ip down and the power
to the dash circuit will be shut o. To reset the breaker, push the
reset lever back up.
If all of the dash switches fail to work, reset the main dash power-
circuit breaker.
Breakers, Fuses, & Relays Type Size (amps) Location
ECM ATM 20
Fuel Pump ATM 20
Fuel Pump 2 ATM 20
Fuel Pump Relay Relay NA
Helm ATM 20
Power Relay Relay NA
PTR ATM 20
Starter ATM 20
Starter Relay Relay NA
VSW ATM 5
Main Buss Bar ANL 200
Amp Harness (5 Channel) MAX 100
Amp Harness (4 Channel) MAX 30
Amp Harness (2 Channel) MAX 40
Amp Fuses (back of amp)2 CH ATO 20 x 2
Amp Fuses (back of amp) 4 CH ATO 30
Amp Fuses (back of amp) 5 CH ATO 30 x 3
Main Dash Breake
r Breaker 50
Ignition Breaker 10
Bilge Pump Breaker 3
Blower Breaker 4
Acc 3 Blank
Nav/Anc Lights Breaker 5
Courtesy Lights Breaker 5
Acc 1 Breaker 10
Acc 2 Breaker 15
Stereo Breaker 10
Horn Breaker 4
12V Receptacle Breaker 15
re
k
a
er
B
len
a
P
r
edn
U h
saD
2014 Moomba Electrical Replacements
esu
F
kc
o
l
B
yrettaB
e
g
a
rot
S
yrett
a
B
egarot
S
Acc 4 Blank
On Engine at
Transmission
Main MAX 40
Bulbs Type Size
Bow Light.......... Sealed ...... (See Dealer)
Courtesy Light .. Sealed ...... (See Dealer)
Docking............. MR16H41................5W
Gauges.............. 161.........................12V
Pole Light.......... 906.........................12V
Tower Light....... 906.........................12V
Ballast Power-Port Side Engine Wall
