330A Nēo Series
Bridged-Mono Operation

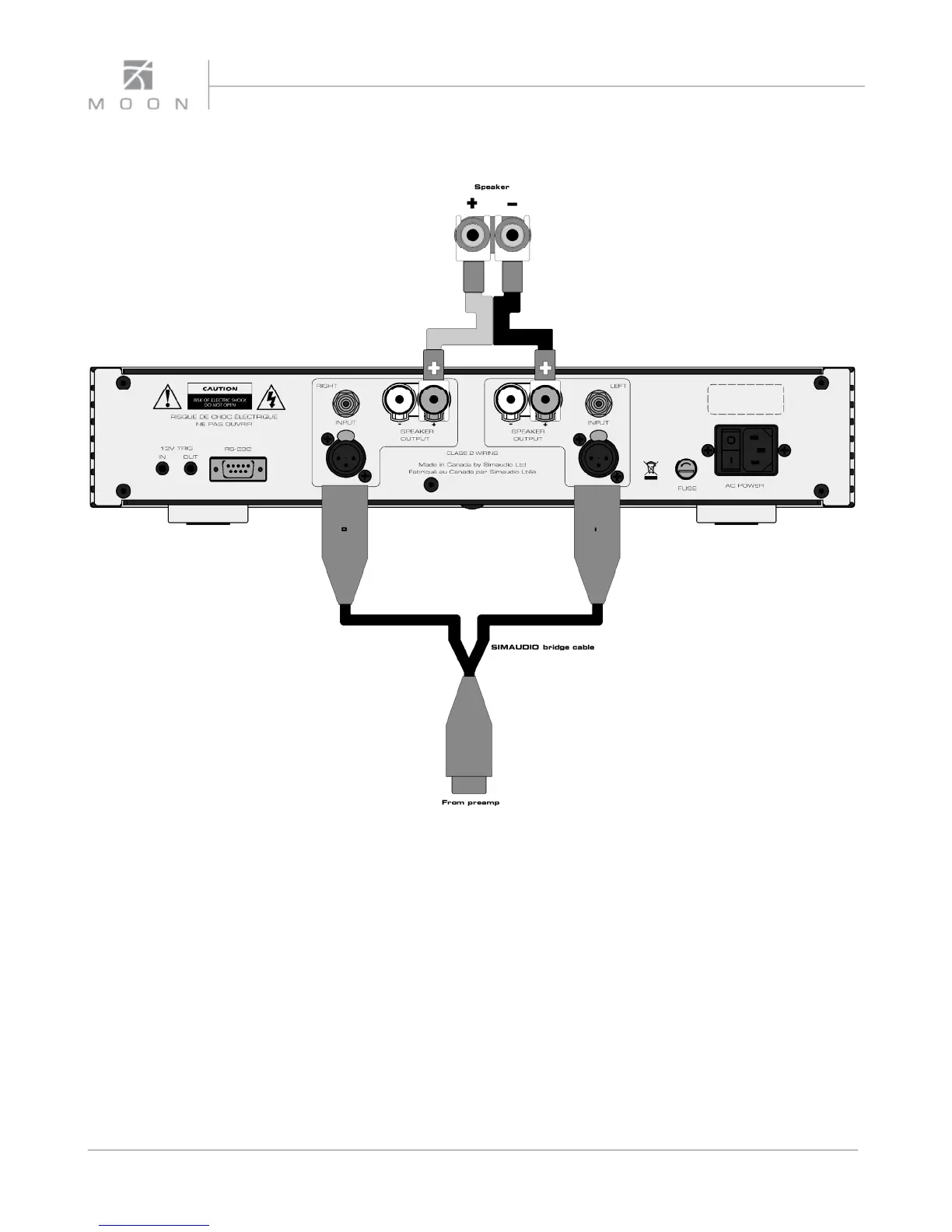

Figure 3: Bridged-Mono operation of the Nēo 330A Power Amplifier
In the event that you wish to operate the Nēo 330A
Power Amplifier as a monoblock amplifier, it can be
converted to bridged mode without any complex
modifications. Only a MOON XLR-BRIDGE adapter cable
is required. This custom cable will allow one input signal
to be sent to both channels of the amplifier’s inputs, as
pictured above in Figure 3. One lead from the “Y”
adapter must plug into right channel XLR input and the
other lead must plug into left channel XLR input. As
well, you must use the positive terminal of each output
binding post (exactly as in figure 3) for the loudspeaker
connection. If you are unsure about how to accomplish
a bridged-mono mode of operation, don’t hesitate to
contact your Authorized MOON Retailer.
10
