3 Inputs and Outputs
The SS-EC drive’s inputs and outputs include:
• 8 optically isolated digital inputs, 5-24VDC high level voltage
• 4 optically isolated digital outputs, max 30V/100mA sink or source current
• 2 analog inputs, can be congured to 0-5V, 0-10V, ±5V or ±10V signal ranges.
• Di󰀨erential encoder signal output (AOUT +/-, BOUT +/-, ZOUT +/-), 26C31 line driver, 20mA sink
or source current
CN5
X1-
X2-
X3-
X4-
X6
X8
+5V
AIN2
AOUT+
BOUT+
ZOUT+
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
X1+
X2+
X3+
X4+
X5
X7
AOUT-
BOUT-
ZOUT-
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
32
31
AIN1
Y1+
Y2+
Y3+
Y4+
Y1-
Y2-
Y3-
Y4-
XCOM
GND

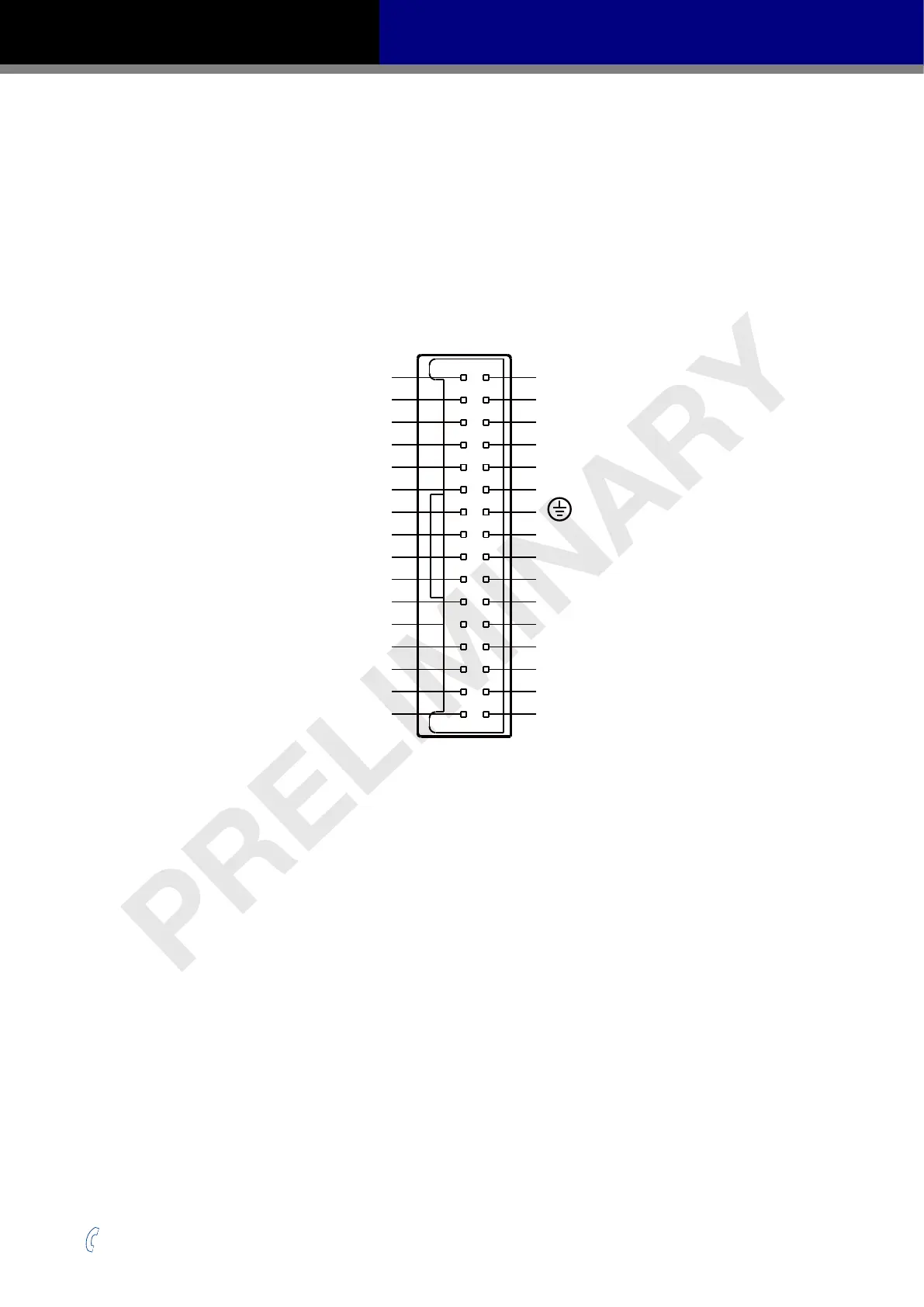

I/O Connector
