SS03/05/10-EC Hardware Manual
4.7 Control Panel Lock
In order to prevent unauthorized or unintentional use of the key panel, a key panel lock is available
on all SS-EC drives. When the lock feature is on, no function can be changed directly on drive’s
control panel.

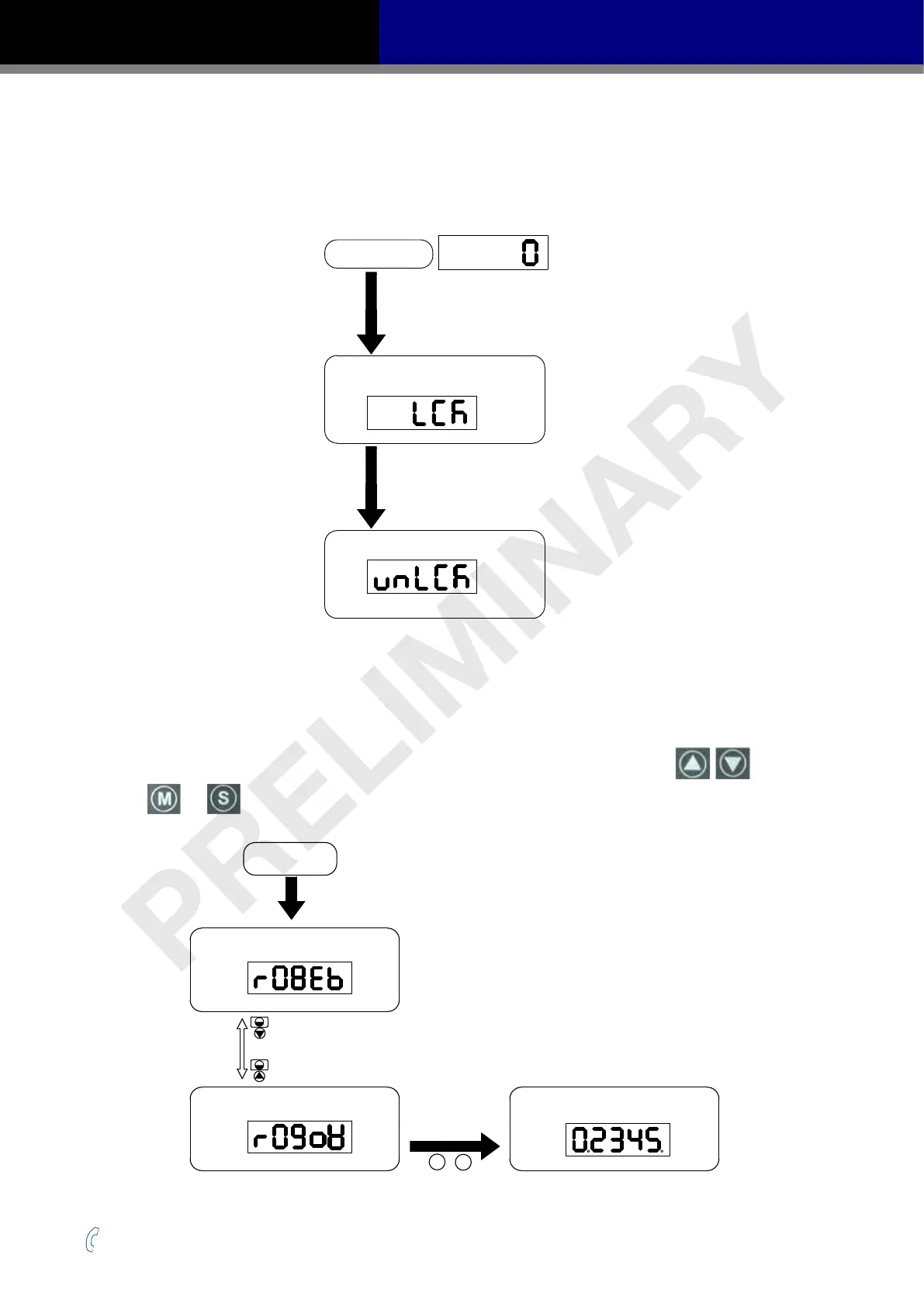

Status monitoring
Press and hold set key
for 1 second
If control panel is locked,
press any key will show lck
In control parameter lock mode,
press and hold set key
for 1 second will unlock
Unlock display
4.8 Warning And Fault Display
If any of the following warnings are detected by the drive when power is applied, the LED display
on the drive will immediately switch into warning or fault display mode.
If more than one warning is detected, you can scroll through by pressing the
buttons.
Press
or to clear the warning display and return to the previous display mode.
Bad Encoder
Any Mode
Warning or fault alarm occurs
If more than 1 alarm has occurred,
press Up or Down key to scroll through
the alarms
Open Winding
Previous Monitoring Mode
S
Press Set and Mode key
to exit alarm display mode
M
To Next Page
