SS03/05/10-EC Hardware Manual

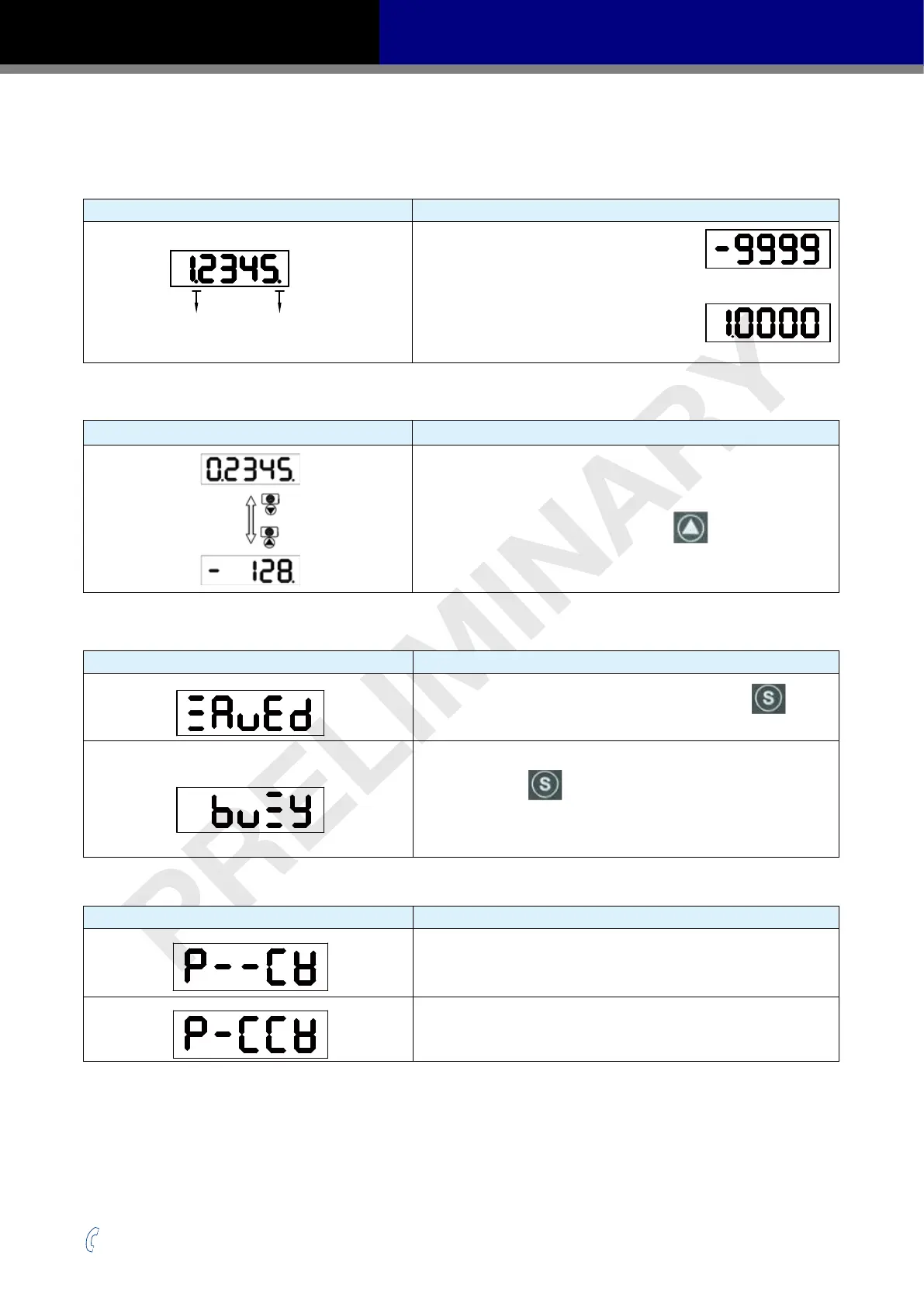

4.3 LED display description
4.3.1 Decimal Point And Negative Sign Description
LED display Description
negative
sign
motor enable
sign
Negative sign: when the value to be
displayed is a negative number ≥-9999,the
highest digit will display as a negative sign.
Decimal point: when the value to be displayed
is a negative number ≤-10000, a decimal
point will be displayed.
4.3.2 Parameter View Setting
LED display Description
There are only 5 digits on the LED display, when a value with
more than 5 digits needs to be displayed, it will be shown in 2
segments. When the highest digit of a value is ashing, it means
only the lower 5 digits are shown. Press
to display the
upper 5 digits.
The graph is showing ‘-12802345’
4.3.3 Parameter Save Setting
LED display Description
In parameter setting mode, pressing and holding the button
will save the change. ‘Saved’ will also be displayed on the LED.
In parameter setting mode when the motor is rotating, pressing
and holding the
button will cause the LED display to show
the status as “busy” meaning that the current parameter cannot
be saved. Stop the motion of the motor and save the parameter
again.
4.3.4 Point To Point Motion Mode
LED display Description
When the LED display reads “P-CW” it means the motor is
rotating in a CW direction in the point-to-point mode
When the LED display reads “P-CCW” it means the motor is
rotating in a CCW direction in the point-to-point mode
