SS03/05/10-EC Hardware Manual
+86-400-820-9661

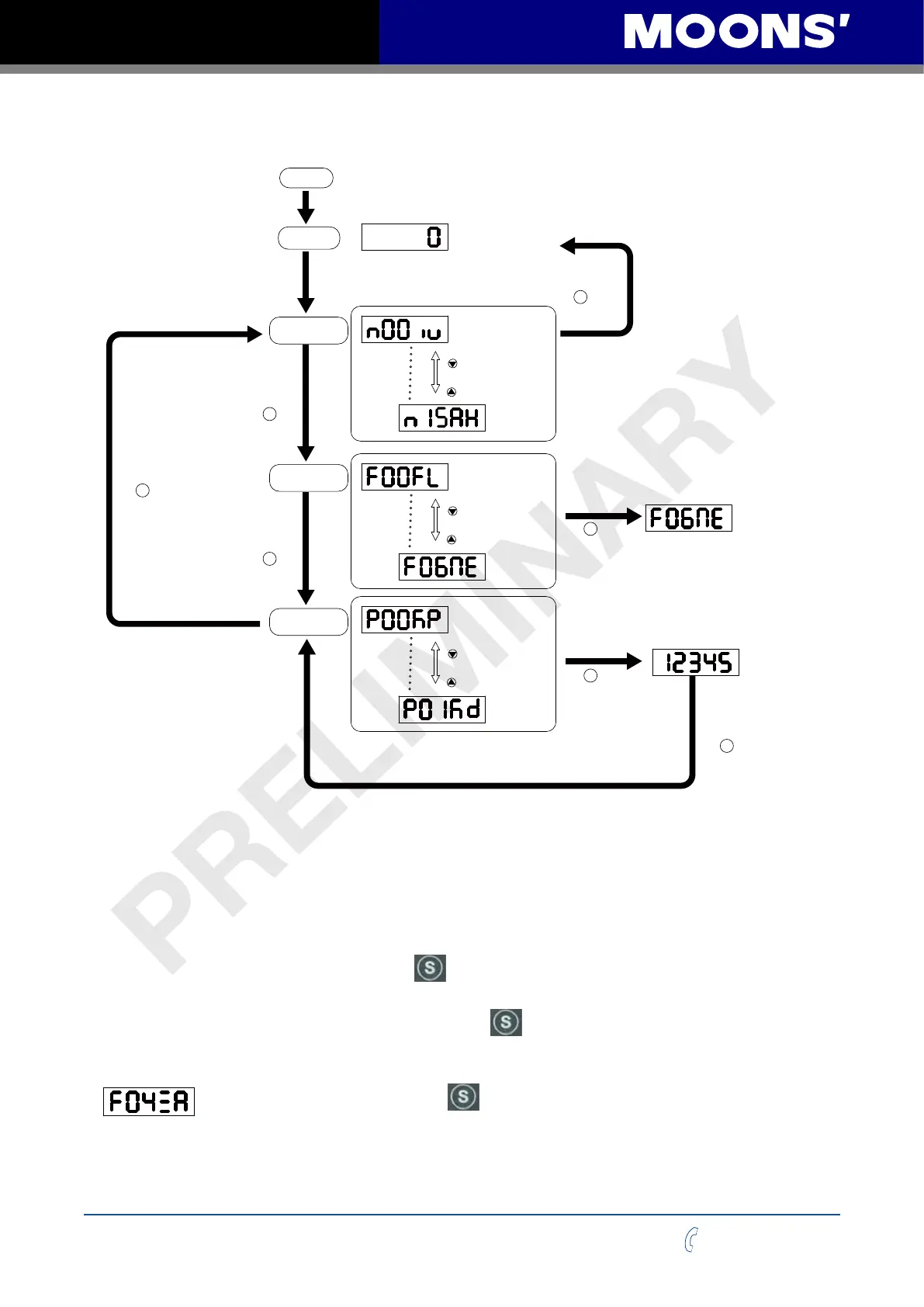

Control mode switch owchart:
Monitor Status
Power On
In factory default mode, it will display motor’s rotatory velocity.(*NOTE 1)
The last dot shows whether the drive is enable or disable.
Monitor Parameters
Press the UP and
DOWN key to scroll
through and change
monitor status
S
Press SET key back
to Monitor Status
Press any key
Function Parameters
M
Press and hold the
MODE key for 1 second
Press the UP and
DOWN key to scroll
through and change
function selection
S
Press and hold SET key to
confirm selection and execute it.
Drive Parameters
Configuration
M
Press and hold the MODE
key for 1 second(*NOTE 4)
Press the UP and
DOWN key to scroll
through and change
parameter selection.
S
Press SET key enter
to value setting mode
Press and hold for 1 second
the SET key to confirm setting value
*Note(3)
S
M
Press and hold the
MODE key for 1 second
Press SET key back to
Drive Parameters Configuration
mode without changing.
*NOTE(2)
NOTE:
(1) When power is applied, the drive’s display will show the customer dened monitoring
mode. In factory default mode, it will display motor’s rotary velocity.
(2) In parameter setting mode, press the
button to exit the parameter setting mode and
return to the parameter selection mode, any changes will not be saved.
(3) In parameter setting mode, press and hold the
button to conrm and apply the
current parameter setting. This will take e󰀨ect immediately. However, this change will not
save to the drive’s ash. If this parameter is required for permanent use, go to function mode
“
”, and then press and hold the button to save the parameter change.
(4) When the drive is connected to the host computer with Step-Servo Quick Tuner on, the
parameter setting mode CANNOT be accessed directly on the drive’s control panel.
