58
Rev. 1.0
2016/7/30
SS03/05/10-EC Hardware Manual
+86-400-820-9661
◇

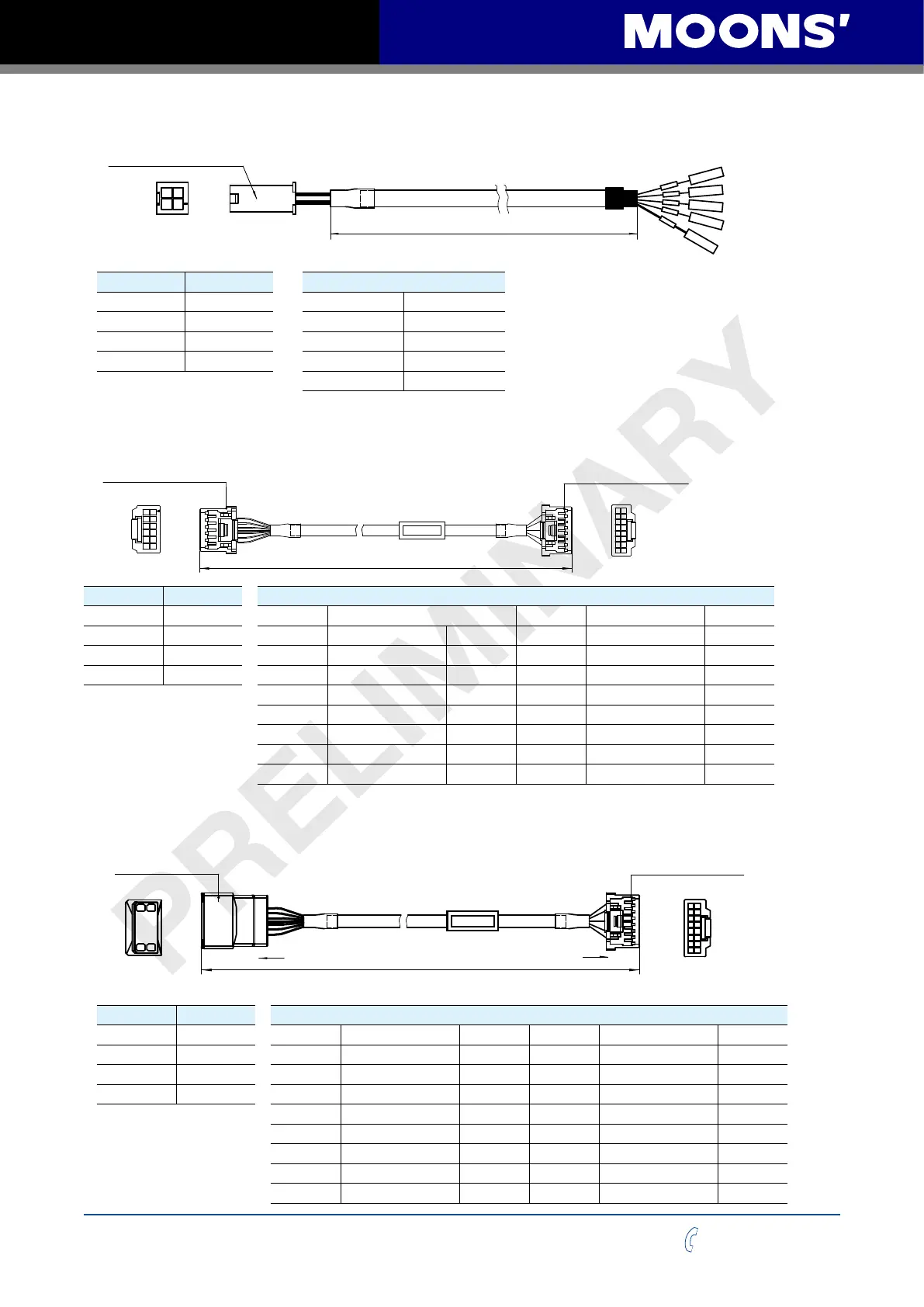

◇ Motor Extension Cable between SS-EC drive and AM17/23/24/34SS-N motor
L
24
3
J1
1
Housing：39-01-3049(Molex)
Crimp：39-00-0040(Molex)
P/N Length(L) Wiring Diagram
1114-100 1M PIN(J1) Color (Signal)
1114-300 3M 1 Blue(B-)
1114-500 5M 2 Red(B+)
1114-1000 10M 3 Green(A-)
4 Black(A+)
◇
◇ Encoder Extension Cable between SS-EC drive and AM11SS Motor
Housing：501646-1200(Molex)
Crimp：501648-1000(Molex)
Housing：501646-1600(Molex)
Crimp：501648-1000(Molex)
J1
2
12
1
11
J2
16
2
15
1
L
P/N Length(L) Wiring Diagram
2118-100 1M PIN(J1) Color (Signal) PIN(J2) PIN(J1) Color (Signal) PIN(J2)
2118-300 3M 10 Blue(A+) 1 Brown(U+)
2118-500 5M 9 Blue/Black(A-) 2 Brown/Black(U-)
2118-1000 10M 8 Green(B+) 3 Gray(V+)
7 Green/Black(B-) 4 Gray/Black(V-)
6 Yellow(Z+) 5 1 White(W+) 15
5 Yellow/Black(Z-) 6 2 White/Black(W-) 16
3 Red(+5V) 7 12 Shield 10
4 Black(GND) 8
◇
◇ Encoder Extension Cable between SS-EC drive and AM17/23/24/34SS-N Motor
L
C
C
D
D
B1
A1
A10
B10
J1
J2
16
15
1 2
Housing: 501646-1600(Molex)
Crimp: 501648-1000(Molex)
Housing: 1-1903130-0(TYCO)
Crimp: 1903120-1(TYCO)
P/N Length(L) Wiring Diagram
2117-100 1M PIN (J1) Color (Signal) PIN (J2) PIN (J1) Color (Signal) PIN (J2)
2117-300 3M A9 Blue (A+) 1 B5 Shield 10
2117-500 5M B9 Blue/Black (A-) 2 A4 Brown (U+) 11
2117-1000 10M A8 Green (B+) 3 B4 Brown/Black (U-) 12
B8 Green/Black (B-) 4 A3 Gray (V+) 13
A7 Yellow (Z+) 5 B3 Gray/Black (V-) 14
B7 Yellow/Black (Z-) 6 A2 White (W+) 15
A6 Red (+5V) 7 B2 White (W+) 16
B6 Black (GND) 8
To Next Page
