2.2.1 How to use the Connector

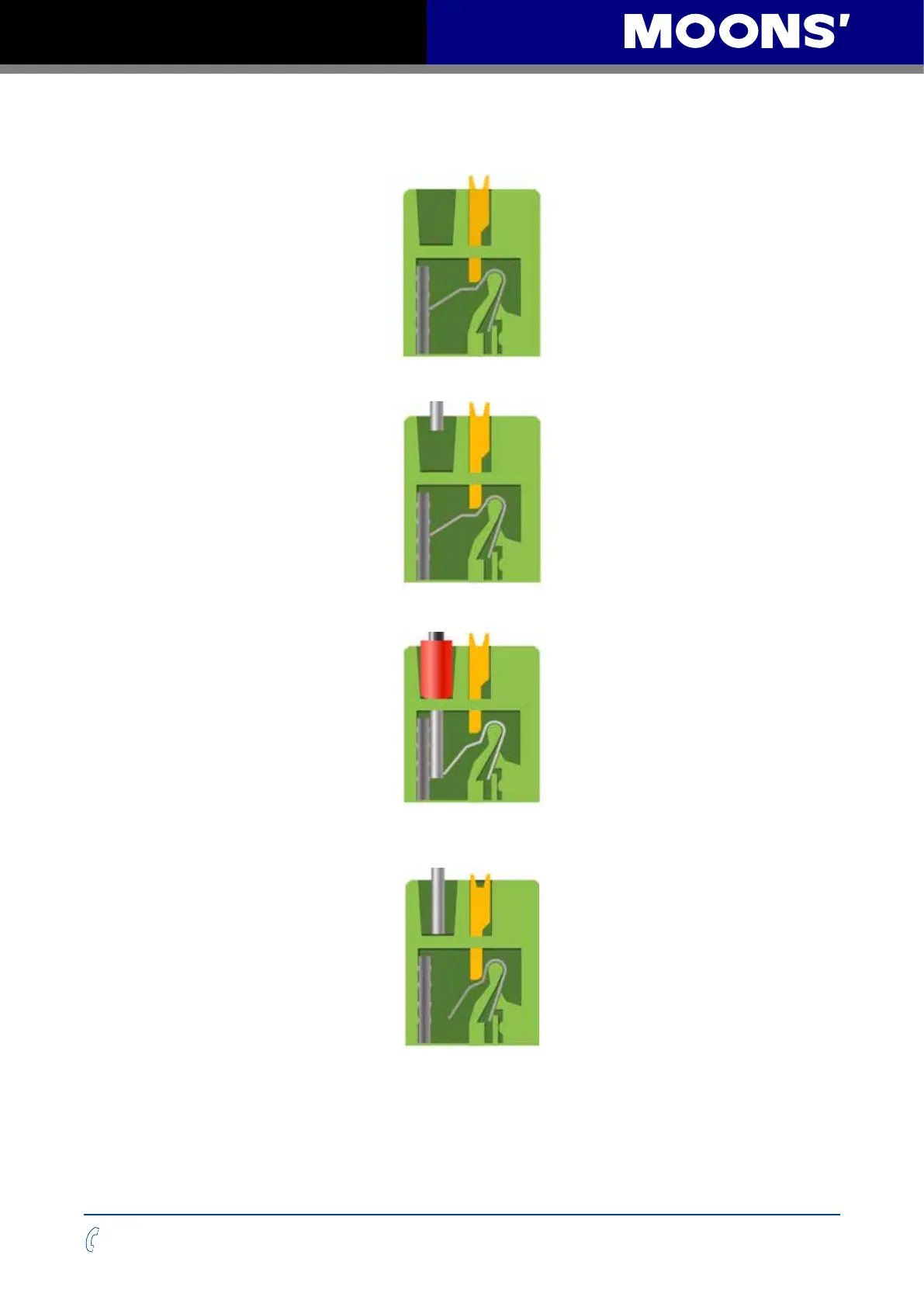

1.The following diagram shows the internal structure of the connector.

2.Insert the terminal block into the connector

3.Metal shrapnel inside the connector can jam the terminals

4.When it is necessary to remove the wire harness, press the orange plastic part to pull out the

wire harness terminal
