STF-Multi axis Series Hardware Manual

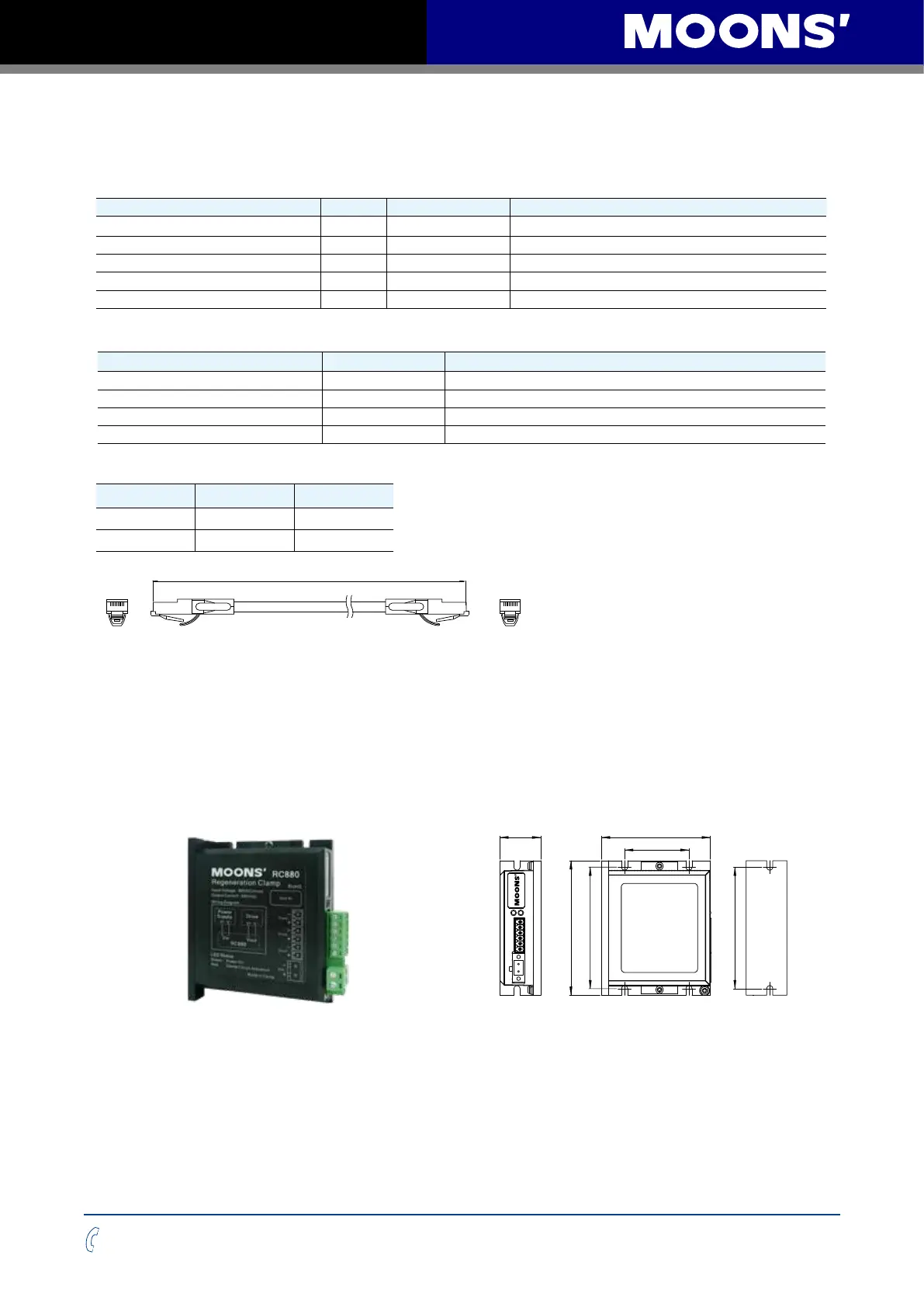

7 Accessories
7.1 Standard Accessories
（
Included
）
Model
amount Catagory Description
39-01-3048 1*4 Molex Motor Connector Plastic Housing (J2)
39-00-0038 5*4 Molex Motor Connector pin
15EDGKNHG-3.5-14P-13-00A(H) 1 IO Connector Plug SSDC-2XU 15EDGKNHG-3.5-14P-13-00A(H)
15EDGKNH-3.5-12P-14-00A(H) 4 IO Connector Plug SSDC-4X 15EDGKNH-3.5-12P-14-00A(H)
15EDGKNHG-3.5-26P-13-00A(H) 1 IO Connector Plug SSDC-4XU 15EDGKNHG-3.5-26P-13-00A(H)
7.2 Optional Accessories (Sold separately)
Model
Catagory Description
2012Series
Cable Bus communication daisy chain extension cable
2013Series Cable Bus communication daisy chain extension cable with shielding
2620-150
Cable
USB mini-B communication cable 1.5 metres
RC880 Regeneration Clamp Regeneration Clamp
7.2.1 Bus Communication
Common Type Shielded Type Length (L)
2012-030 2013-030 0.3m
2012-300 2013-300 3m
L
8 1 8 1
7.2.2 RC-880 Regeneration Clamp
■ Model: RC880
RC-880 is used to limit increase in power supply voltage when the motor is decelerating under load. This is
commonly referred to as "regeneration".
RC-880 can clamp the regeneration and prevent the power supply and/or drive being damaged or destroyed.
Connect the RC-880 between the power supply and the drive.
76
45
94 85
单位：mm
85
28.6
