STF-Multi axis Series Hardware Manual
3 Inputs and Outputs
Inputs and outputs of STF-2XU/4XU drivers include:
• 3 optically isolated digital signal input, 5~24V
• 1 optically isolation of digital signal output: maximum withstand voltage 30V, maximum current
100mA
• 1 brake direct drive control signal output: maximum withstand voltage 24V, maximum current
1A

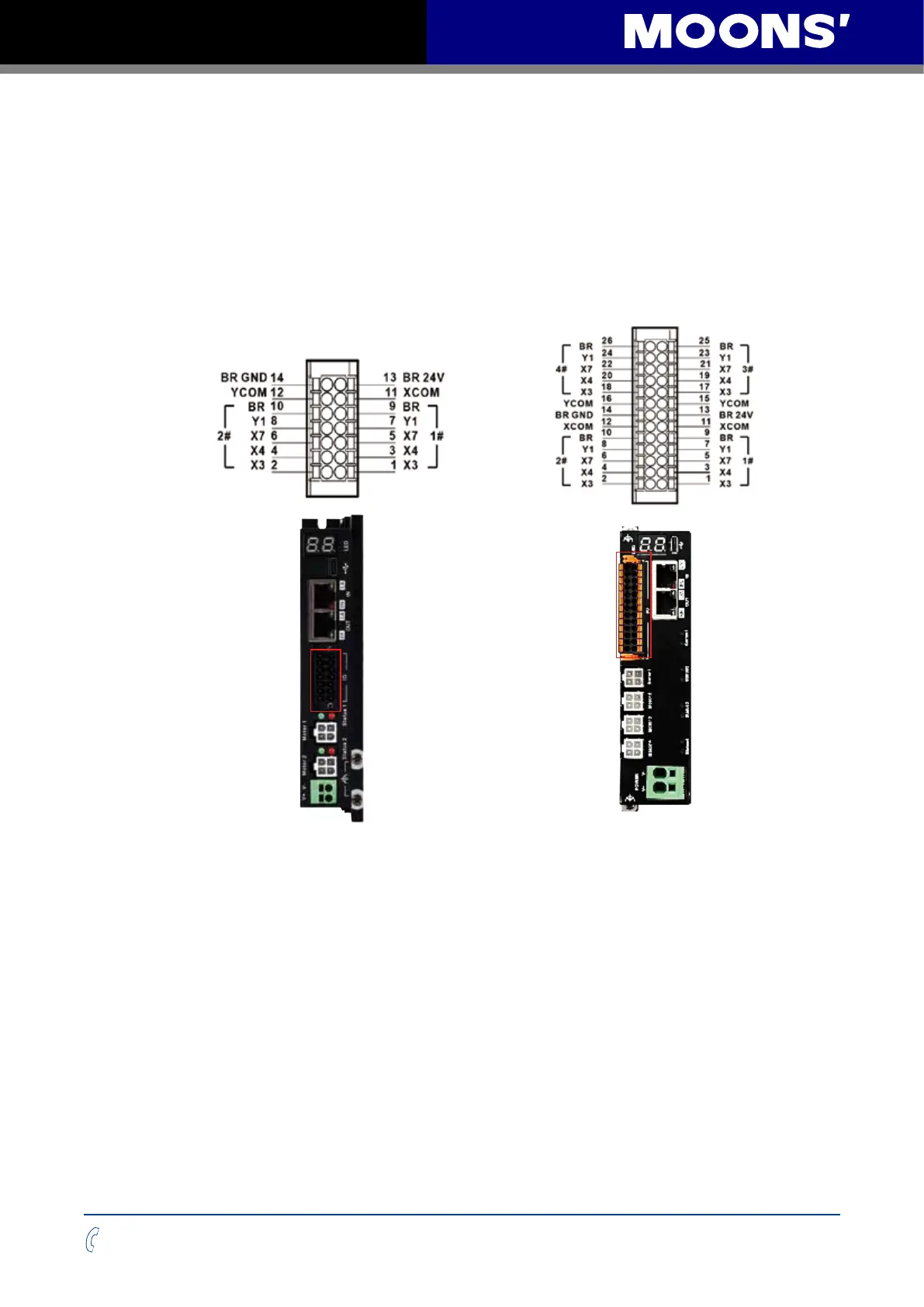

I/O Connector DiagramI/O Connector Diagram
STF05/10-4XU-ECX
STF05/10-4XU-ECX-S
STF05/10-2XU-ECX
STF05/10-2XU-ECX-S
Inputs and outputs of the STF-4X drive include:
• 5 optically isolated digital signal input, high 5~24V
• 2 optically isolation of digital signal output: maximum withstand voltage 30V, maximum current
100mA
• 1 brake direct drive control signal output: maximum withstand voltage 24V, maximum current
1A
