2.2 Connect the Power

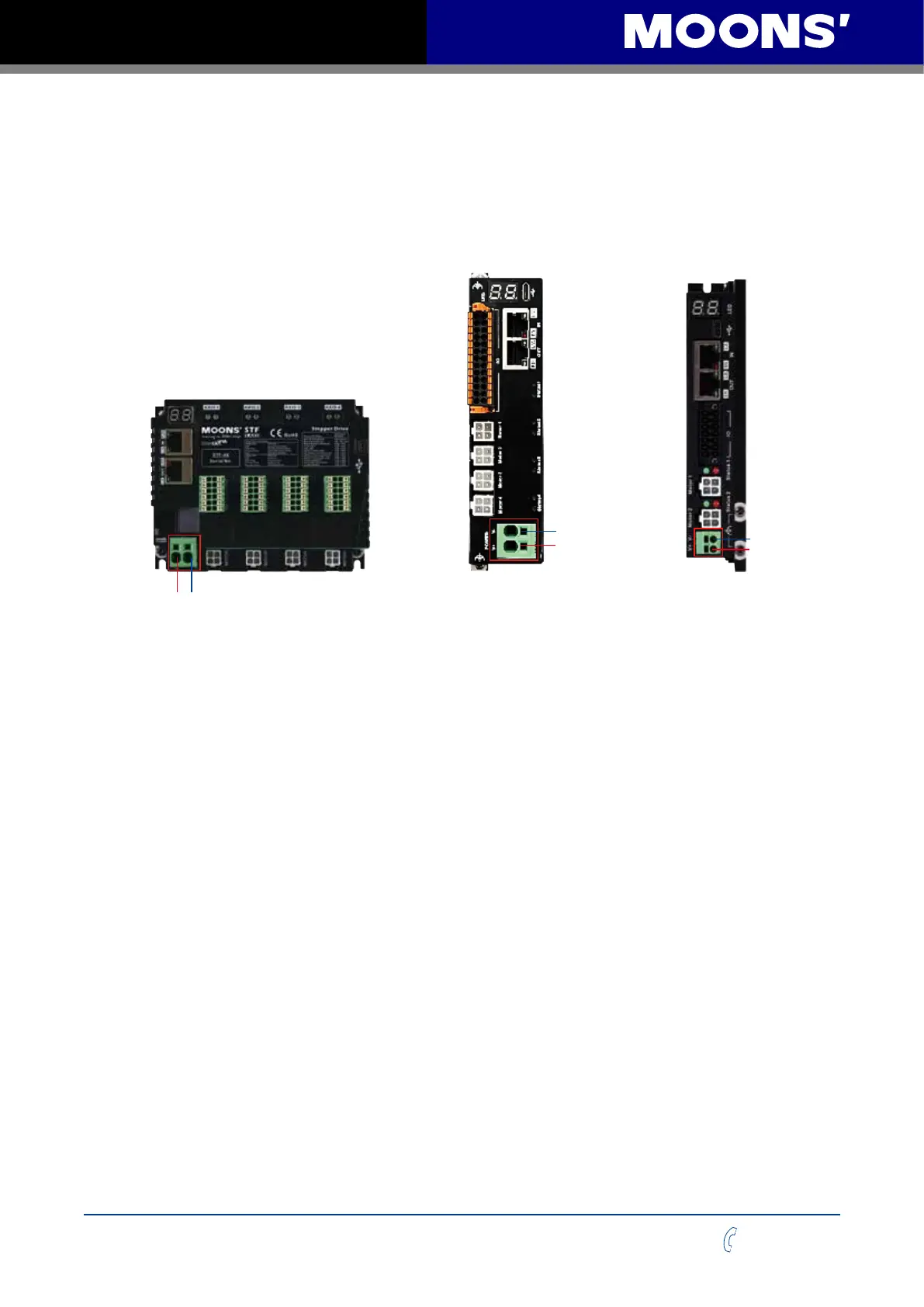

The STF multi-axis series comes with a power connector.
The rst part on the left side of the connector is the V+ of the power supply, and the second part is
the V- of the power supply.
(Note: Please power on the drive after all the wiring is complete!)
V+ V-
V+
V-
STF05/10-4X-ECX
STF05/10-4X-ECX-S
STF05/10-4XU-ECX
STF05/10-4XU-ECX-S
STF05/10-2XU-ECX
STF05/10-2XU-ECX-S
V+
V-
STF multi-axis series product operating voltage range 24-70VDC
Please read the section entitled “Choose a Power Supply” above to help you choose the right
power supply.
(Note: Do not reverse connect the power supply, please power on the driver after all wiring is
complete!)
