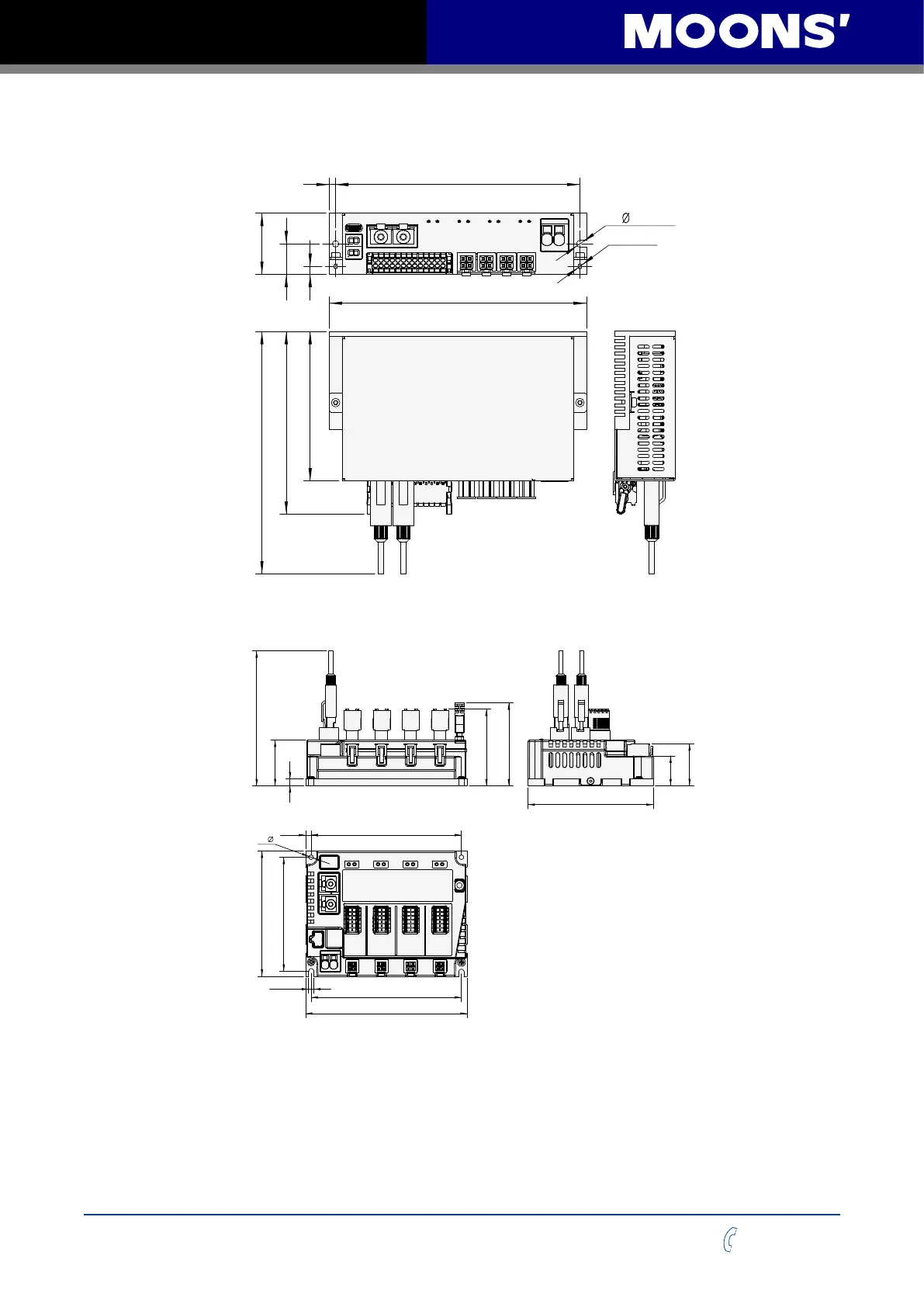

6.2 Drive Dimensions
2- 4.2安装孔
150.8
113.7
93
38
19
5
4
152
160
2-M3接地
STF-4XU Units: mm
110
67.1
6
5
132
2- 4.4
110 100
4.5
132
142
40
118.3
72.7
26
36.8
STF-4X Units: mm
