29 02/02

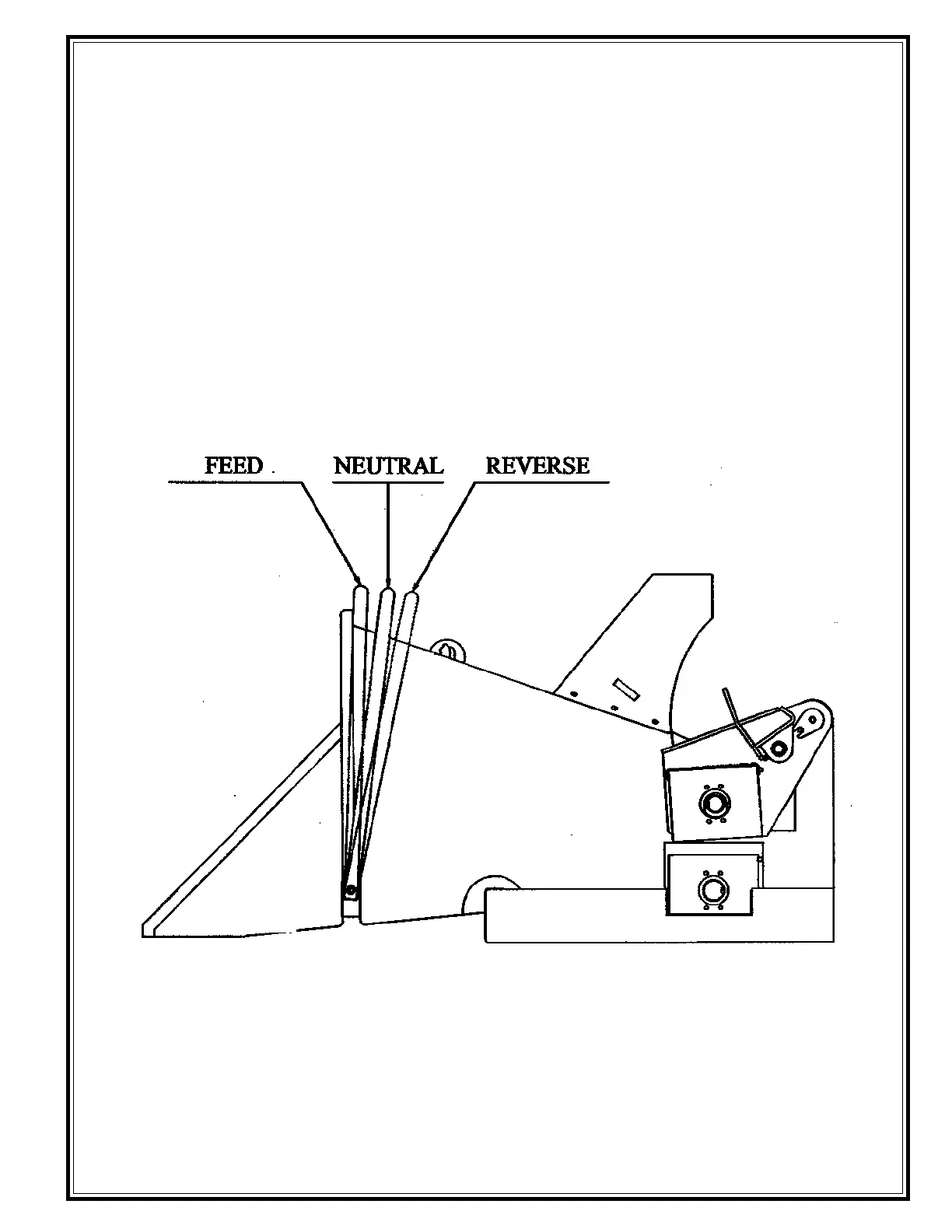

FEED CONTROLS
The feed rollers are controlled by pushing or pulling the feed control bar, which is located on the top
and both sides of the feed chute.
The 3 (Three) control positions are:
FEED - Pulls material into the chipper cutting zone.
NEUTRAL - Stops movement of the feed rollers.
REVERSE - Activates the rollers to push material out of the chipper disc cutting zone.
